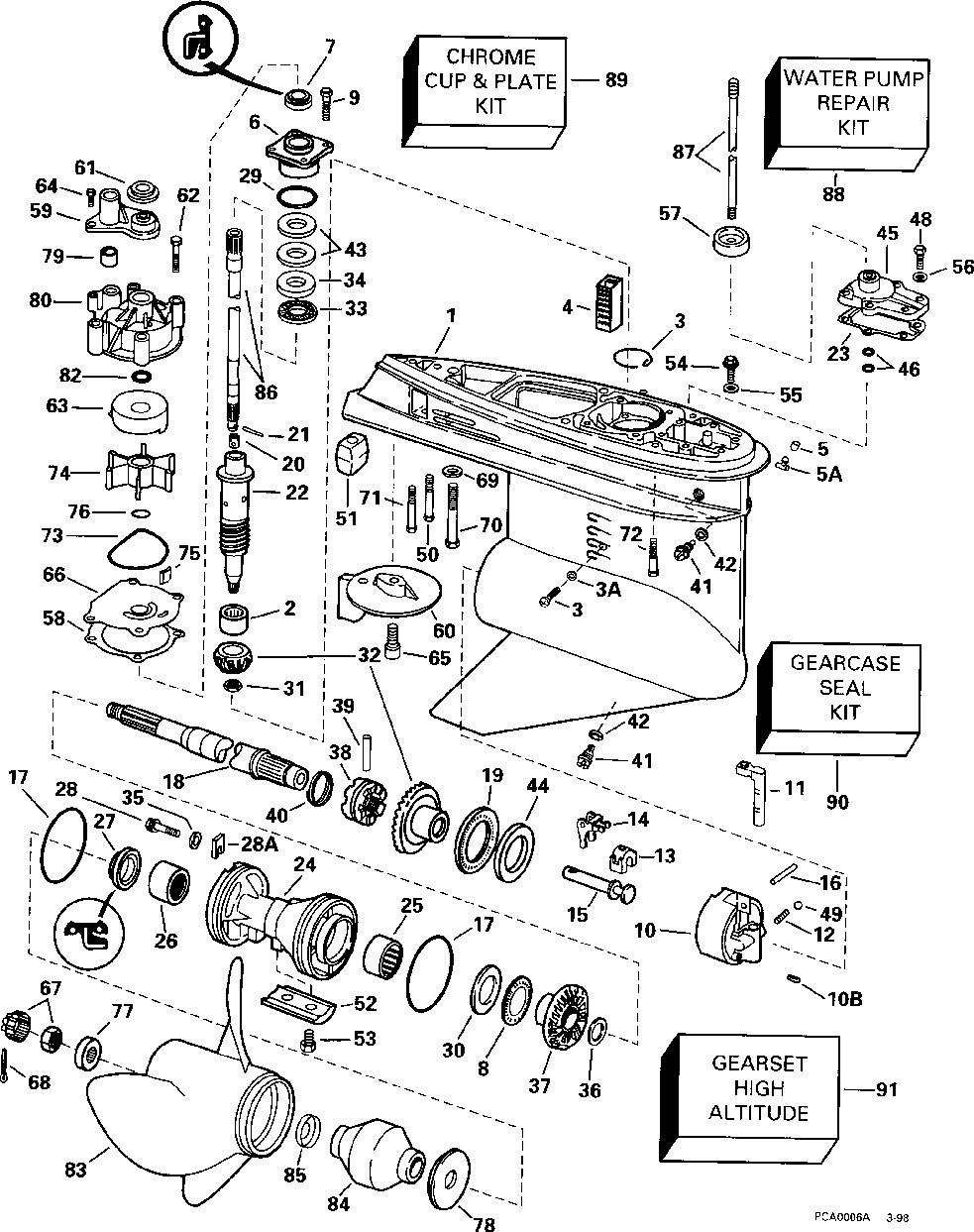

Gearcase -- standard rotation -- gl models

Johnson J150GLECD
Johnson
#oem кодцена
1
0439973
Call Tech Svc/qipl ( Models With Pinion Bearing Retaining Ring)
1
0439973
Call Tech Svc/qipl ( Models With Pinion Bearing Retaining Screw)
2
0387817
Roller Brg Ay
3
0338778
Ring, Retainer ( Models With Pinion Bearing Retaining Ring)
3
0324852
Retaining Screw ( Models With Pinion Bearing Retaining Screw)
4
0321123
Screen, Water Intk
5
0305749
Nipple Plug
6
0439476
Ds Brg Hsg&seal Ay
7
0341280
Seal, Driveshaft
8
0382408
Bearing Ay, Thrust
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
11
0915954
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
O-ring (010 Per Pack)
18
5004765
Propshaft Ay, Serv
19
0389042
Thrust Brg-fwd Gr
20
0338504
Retainer, Dr Sft
21
0311538
Pin, Roll
22
0345905
Driveshaft, Lower
23
0352165
Gasket (005 Per Pack)
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0436752
Подшипник игольчатый
27
0341281
Seal, Propshaft
28
0350271
Screw, Brg Carrier
29
0354731
Уплотнительное кольцо
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
5004938
Gearset, V6 Fwd&pin
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0328743
Шайба
36
0336565
Шайба
37
0336561
Gear, Reverse .54
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
3A
0332584
Washer 5pk ( Models With Pinion Bearing Retaining Screw) (005 Per Pack)
40
0324369
Пружина
41
0318544
Drain Screw
42
0311598
Washer-10 Pk (010 Per Pack)
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
O-ring (005 Per Pack)
48
0302325
Screw (005 Per Pack)
49
0160084
Шарик
50
0328096
Screw, Anode
51
0436745
Anode&insert Ay
52
0431708
Анодная пластина
53
0908158
Винт
54
0341220
Винт
55
0437330
Washer&seal Ay
56
0328702
Шайба
57
0321008
Grommet Exh Hsg
58
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Kit 439141) (005 Per Pack)
59
0338893
Cover, Impeller Hsg
5A
0336535
Ниппель
60
0338742
Tab, Trim-std
61
0320943
Уплотнитель резиновый
62
0302325
Screw (005 Per Pack)
63
0338486
Cup, Imp Housing ( Stainless Steel)
63
0338551
Cup Imp Housing ( Chrome Plated)
64
0306643
Винт
65
0313715
Винт
66
0338485
Plate, Water Pump ( Stainless Steel)
66
0338552
Plate Water Pump ( Chrome Plated)
67
5008966
Nut&keeper Ay, Prop
68
0306394
Cotter Pin 10 Pk (010 Per Pack)
69
0330265
Шайба
70
0331998
Винт
71
0330263
Винт
72
0331999
Винт
73
0331353
Уплотнение
74
5001593
Kit Ay, Impeller
75
0331107
Imp Key
76
0302035
Кольцо
77
0320570
Spacer Prop Nut
78
0126870
Bushing, Thrust ( Renegade Offshore & All 3-blade)
78
0128777
Bushing, Thrust ( Renegade Bass Only)
79
0314008
Уплотнитель резиновый
80
0435990
Housing Ay, Implr
82
0331188
O-ring (005 Per Pack)
84
0175401
Bushing Ay, Prop ( Renegade Offshore & All 3-blade)
84
0431730
Prop Hub Shtr ( Renegade Bass Only)
85
0313926
Гильца
86
5000615
Kit, Upper D/s-20"
87
0335509
Rod, Shift 20"
88
5001594
Рем.комплект водяного насоса
89
0435526
Cup & Plate Ay
90
5006373
Kit Ay, Seal-gc
10B
0331880
Штифт
28A
0333957
Retaining Tab
0438047
5004635
See Sb 2002-02p ( Not Shown)
