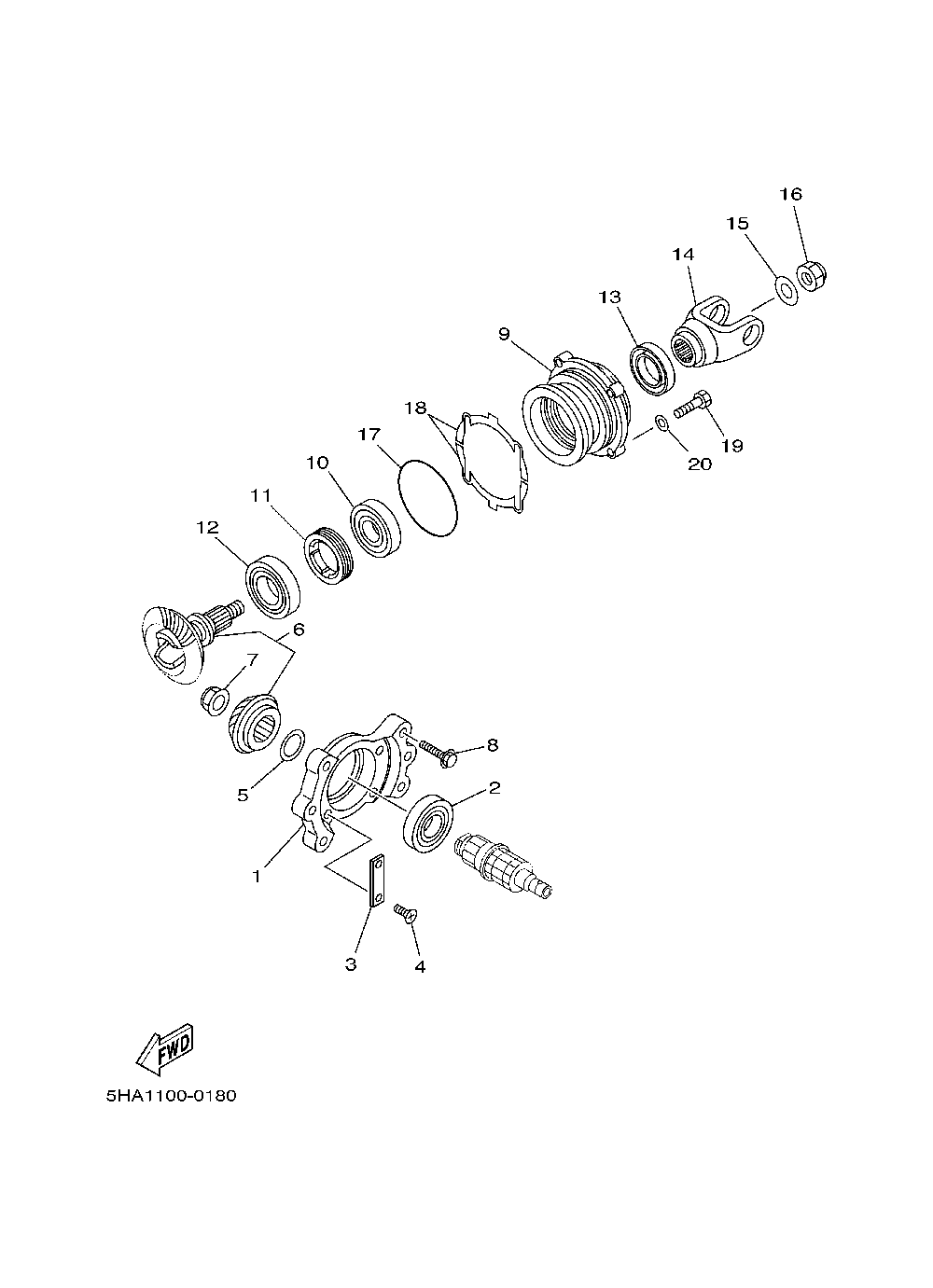

Промежуточный ведущий вал

Yamaha Kodiak Automatic
Yamaha
#oem кодцена
1
5GH-17521-00-00
Housing, Bearing (u49)
2
93306-20627-00
Bearing (u49)
3
11H-15383-02-00
Plate, Bearing Cover (u49)
4
90149-08013-00
Screw (u49)
5
52G-17531-01-00
Shim, Pinion Ur (u49)
5
52G-17531-11-00
Shim, Pinion Ur (u49)
5
52G-17531-21-00
Shim, Pinion Ur (u49)
5
52G-17531-31-00
Shim, Pinion Ur (u49)
5
52G-17531-41-00
Shim, Pinion Ur (u49)
5
52G-17531-51-00
Shim, Pinion Ur (u49)
6
4WV-17530-00-00
Pinion Set (u49)
7
90179-22015-00
Nut (u49)
8
95817-08030-00
Bolt, Flange (u49)
9
5GH-17551-00-00
Housing, Bearing (u49)
10
93306-30560-00
Bearing (u49)
11
90179-65305-00
Nut, Spec'l Shape (u49)
12
93306-20712-00
Bearing (u49)
13
93101-35097-00
Oil Seal, S-type (u49)
14
5GH-17556-01-00
Yoke, Joint (u49)
15
90201-14633-00
Washer, Plate (u49)
16
90185-14070-00
Nut, Self-locking (u49)
17
93210-78544-00
O-ring (u49)
18
5GH-17531-00-00
Shim, Pinion (0.1t Ur (u49)
18
5GH-17531-10-00
Shim, Pinion (0.15 Ur (u49)
18
5GH-17531-20-00
Shim, Pinion (0.2t Ur (u49)
18
5GH-17531-30-00
Shim, Pinion (0.3t Ur (u49)
18
5GH-17531-40-00
Shim, Pinion (0.4t Ur (u49)
18
5GH-17531-50-00
Shim, Pinion (0.5t Ur (u49)
18
5GH-17531-60-00
Shim, Pinion (0.6t Ur (u49)
19
97017-08030-00
Bolt, Hexagon (u49)
20
92907-08600-00
Washer (6ta) (u49)
