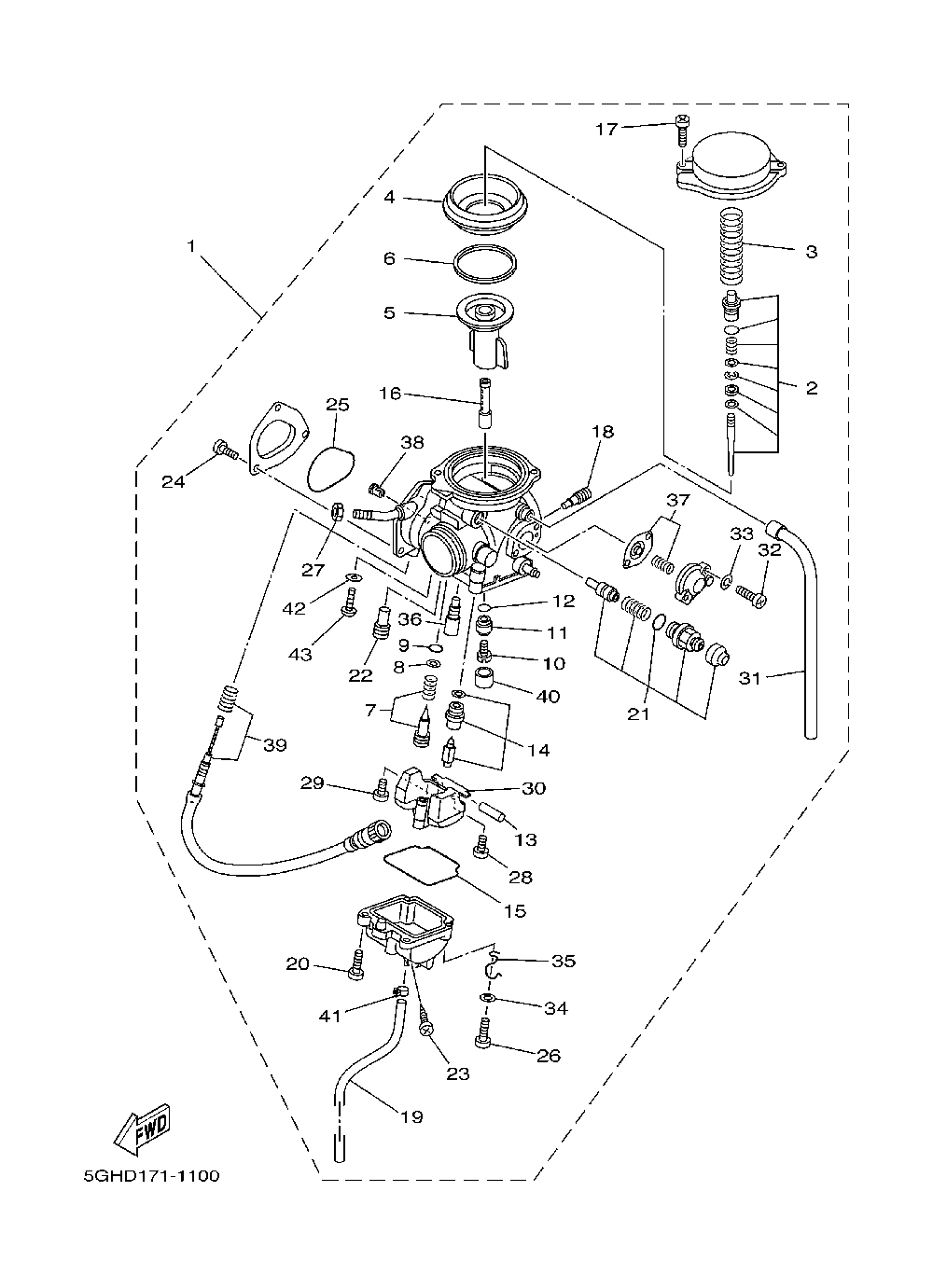

Карбюратор

Yamaha Kodiak Automatic
Yamaha
#oem кодцена
1
5GH-14101-11-00
Carburetor Assy 1 (u49)
2
5GH-1490J-20-00
Needle Set (u49)
3
5DM-14933-00-00
Spring, Diaphragm (u49)
4
5GH-14940-10-00
Diaphragm Assy (u49)
5
5DM-14112-00-00
Valve, Throttle 1 (u49)
6
5GH-14918-10-00
Ring (u49)
7
5GH-14105-10-00
Pilot Screw Set (wht White Spring (u49)
8
3H1-14962-00-00
Washer (u49)
9
3H1-14147-00-00
O-ring (u49)
10
3G2-14231-26-A0
Jet, Main #130 (u49)
11
5GH-14261-00-00
Holder (u49)
12
583-14561-00-00
O-ring (u49)
13
127-14186-00-00
Pin, Float (u49)
14
5UH-14107-20-00
Needle Valve Set (u49)
15
5DM-14561-00-00
O-ring (u49)
16
5DM-14141-40-00
Nozzle Main (u49)
17
4KM-14216-00-00
Screw (u49)
18
1HX-14231-16-00
Jet, Main (#80) (u49)
19
4KB-14193-20-00
Pipe (u49)
20
98580-04010-00
Screw, Pan Head (u49)
21
5GH-1410A-00-00
Starter Set (carb Ch (u49)
22
3G2-14231-14-00
Jet, Main (#70) (u49)
23
12R-14191-00-00
Plug, Drain (u49)
24
98517-04006-00
Screw, Pan Head (u49)
25
4WV-14147-10-00
O-ring (u49)
26
98517-04016-00
Screw, Pan Head (u49)
27
522-14161-00-00
Nut, Cable Adjusting (u49)
28
98507-04008-00
Screw, Pan Head (u49)
29
1FN-14565-00-00
Screw (u49)
30
5DM-14985-00-00
Float (u49)
31
5GH-14197-00-00
Pipe (u49)
32
98580-04014-00
Screw, Pan Head (u49)
34
92907-04600-00
Washer (jf2) (u49)
35
5GH-14937-00-00
Clip (u49)
36
4KM-14142-17-00
Jet, Pilot (#17.5) (u49)
37
5EL-1490H-00-00
Diaphragm Set 5 (u49)
38
1UY-14155-00-00
Guide, Cable End (u49)
39
5GH-14103-01-00
Throttle Screw Set (u49)
40
5GH-14918-00-00
Ring (u49)
41
90467-06194-00
Clip (u49)
42
256-14956-01-00
Washer (u49)
43
3DM-14216-00-00
Screw (u49)
