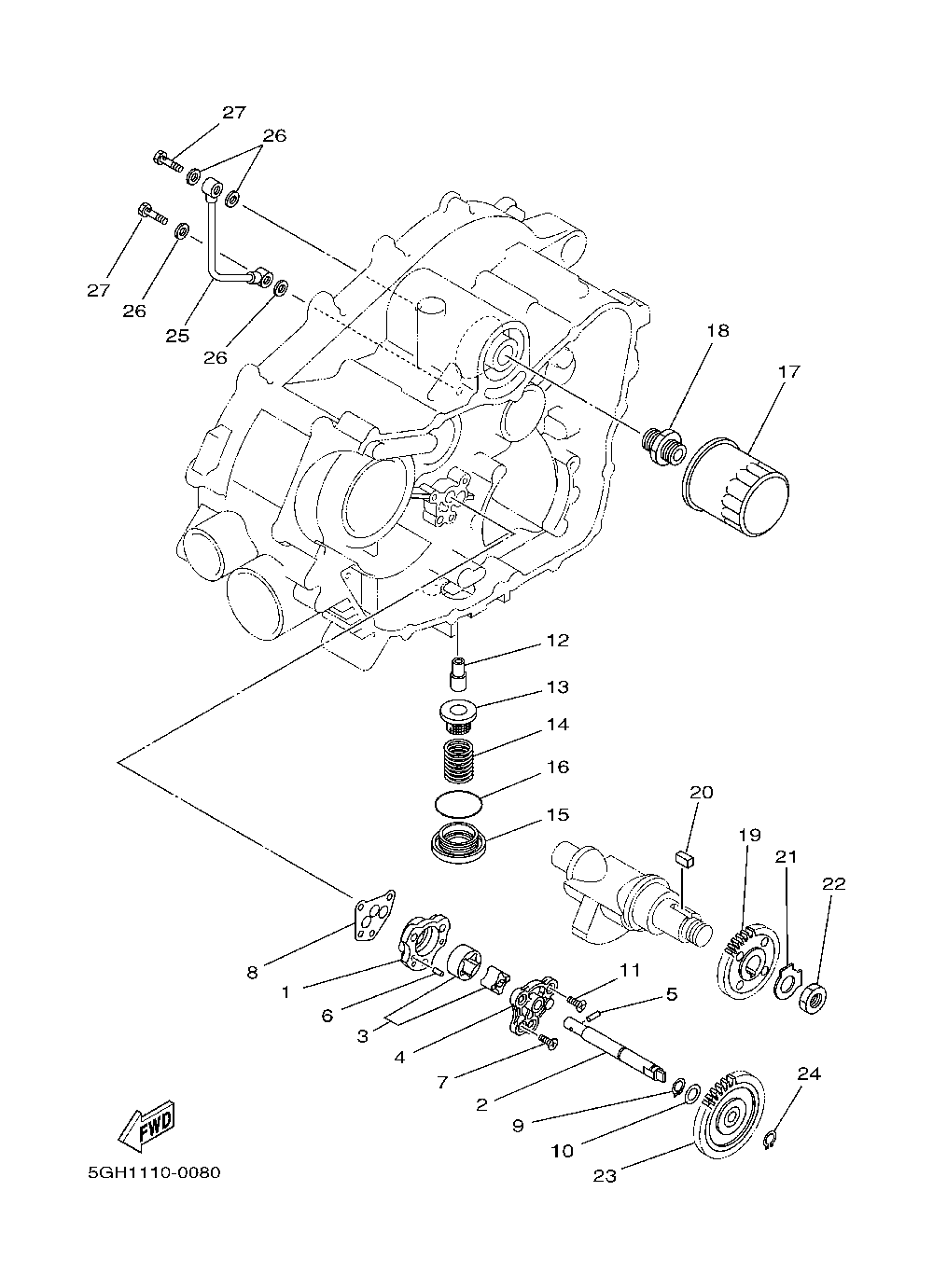

МАСЛЯНЫЙ НАСОС

Yamaha Kodiak Automatic

МАСЛЯНЫЙ НАСОС

#

oem код

название

цена

1

1UY-13336-00-00

Housing, Rotor (u49)

Housing, Rotor (u49)

2

5GH-13314-00-00

Shaft, Pump (u49)

Shaft, Pump (u49)

3

3Y1-13310-01-00

Rotor Asy 1 (u49)

Rotor Asy 1 (u49)

4

1UY-13316-00-00

Cover, Pump (u49)

Cover, Pump (u49)

5

Pin, Dowel (u49)

Pin, Dowel (u49)

6

Pin, Dowel (u49)

Pin, Dowel (u49)

7

Screw, Flat (u49)

Screw, Flat (u49)

8

3GD-13329-00-00

Gasket, Pump Cover (u49)

Gasket, Pump Cover (u49)

9

Circlip (u49)

Circlip (u49)

10

Washer, Plate (u49)

Washer, Plate (u49)

11

Screw, Flat Head (u49)

Screw, Flat Head (u49)

12

2XK-13416-00-00

Pipe, Oil 1 (u49)

Pipe, Oil 1 (u49)

13

51Y-13411-00-00

Strainer, Oil (u49)

Strainer, Oil (u49)

14

Spring, Compression (u49)

Spring, Compression (u49)

15

4HC-15351-00-00

Plug, Drain (u49)

Plug, Drain (u49)

16

O-ring (u49)

O-ring (u49)

17

5GH-13440-00-00

Oil Element Assy (u49)

Oil Element Assy (u49)

18

Bolt, Union (u49)

Bolt, Union (u49)

19

5GH-13324-00-00

Gear, Pump Drive (u49)

Gear, Pump Drive (u49)

20

Key, Straight (u49)

Key, Straight (u49)

21

Washer, Lock (u49)

Washer, Lock (u49)

22

Nut, Hexagon (u49)

Nut, Hexagon (u49)

23

5GH-13325-00-00

Gear, Pump Driven (u49)

Gear, Pump Driven (u49)

25

4KB-13161-01-00

Pipe, Delivery 1 (u49)

Pipe, Delivery 1 (u49)

26

Washer, Plate (u49)

Washer, Plate (u49)

27

Bolt, Union (u49)

Bolt, Union (u49)

24

Circlip (u49)

Circlip (u49)

26

Gasket (u49)

Gasket (u49)
