Сцепление Запчасти для квадроциклов ATV Yamaha Kodiak Automatic (2001)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Сцепление

Yamaha Kodiak Automatic

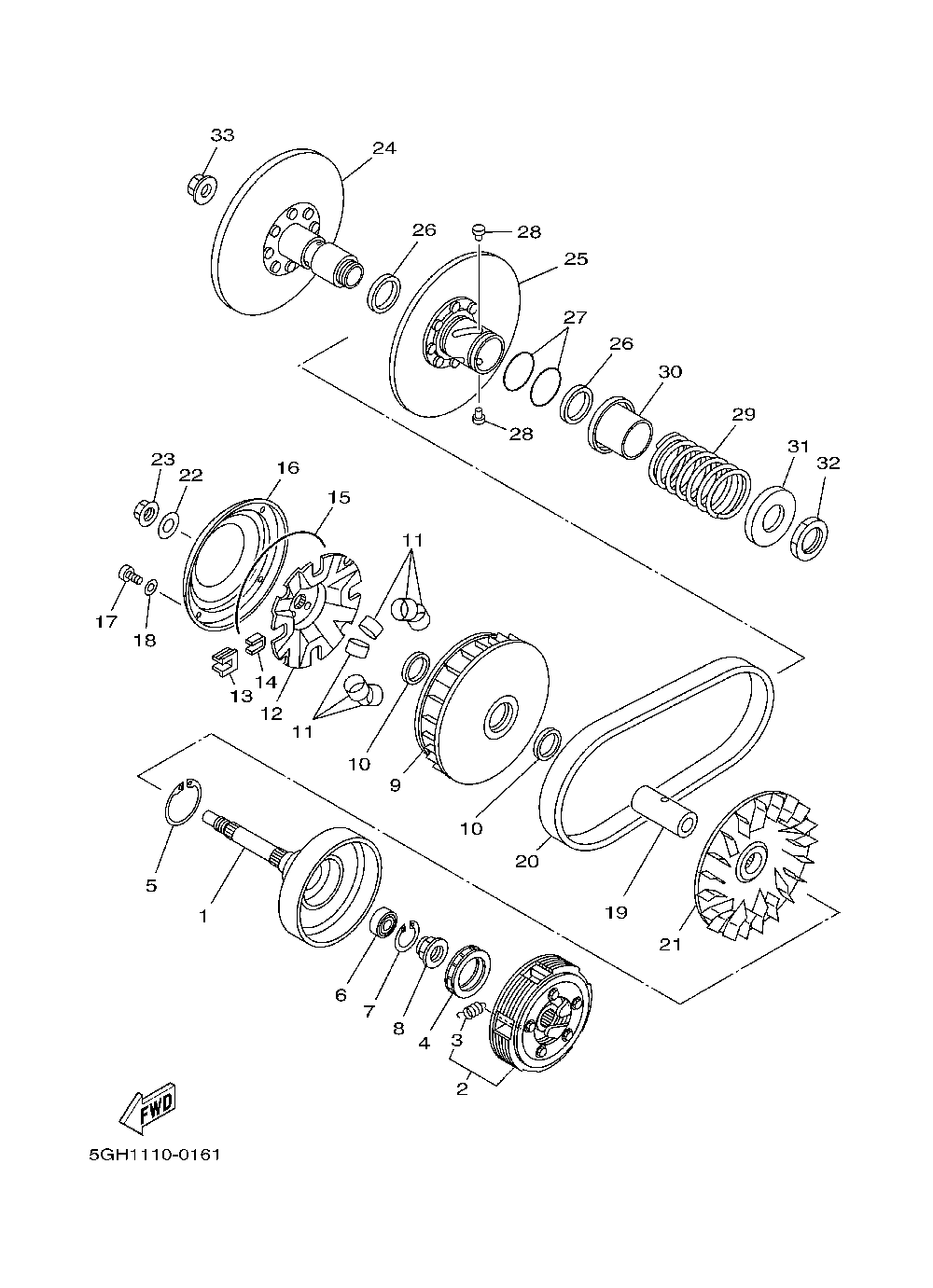

Сцепление

#

oem код

название

цена

1

5GH-16611-00-00

Clutch Housing Comp. (u49)

Clutch Housing Comp. (u49)

2

5GH-16620-00-00

Clutch Carrier Assy (u49)

Clutch Carrier Assy (u49)

3

5GH-16626-00-00

Spring, Clutch Wt 1 (u49)

Spring, Clutch Wt 1 (u49)

4

5GH-16664-00-00

Bearing, One Way (u49)

Bearing, One Way (u49)

5

Circlip (u49)

Circlip (u49)

6

Bearing, Cyl.#15 (u49)

Bearing, Cyl.#15 (u49)

7

Circlip (u49)

Circlip (u49)

8

Nut (u49)

Nut (u49)

9

5GH-17620-00-00

Primary Sliding Shea (u49)

Primary Sliding Shea (u49)

10

Oil Seal (u49)

Oil Seal (u49)

11

5GH-17632-00-00

Weight (u49)

Weight (u49)

12

5GH-17623-00-00

Cam (u49)

Cam (u49)

13

4WV-17653-00-00

Slider (u49)

Slider (u49)

14

4WV-17654-01-00

Spacer 1 (u49)

Spacer 1 (u49)

15

O-ring (u49)

O-ring (u49)

16

5GH-17639-00-00

Stopper (u49)

Stopper (u49)

17

Screw, Panhead (u49)

Screw, Panhead (u49)

18

Washer, Plate (u49)

Washer, Plate (u49)

19

Collar (u49)

Collar (u49)

20

5GH-17641-10-00

V-belt (u49)

V-belt (u49)

21

5UH-17611-00-00

Sheave, Primary Fixe (u49)

Sheave, Primary Fixe (u49)

22

Washer, Plate (u49)

Washer, Plate (u49)

23

Nut (u49)

Nut (u49)

24

5GH-17660-00-00

Secondary Fixed Shea (u49)

Secondary Fixed Shea (u49)

25

5GH-17670-00-00

Sec. Sliding Sheave (u49)

Sec. Sliding Sheave (u49)

26

Oil Seal (u49)

Oil Seal (u49)

27

O-ring (u49)

O-ring (u49)

28

4CW-17664-00-00

Pin, Guide (u49)

Pin, Guide (u49)

29

Spring, Compression (u49)

Spring, Compression (u49)

30

4WV-17684-00-00

Seat, Sec. Spring (u49)

Seat, Sec. Spring (u49)

31

4WV-17644-00-00

Seat, Spring (u49)

Seat, Spring (u49)

32

Nut, Hexagon (u49)

Nut, Hexagon (u49)

33

Nut (u49)

Nut (u49)
