1. Главная
  2. Запчасти для квадроциклов ATV
  3. Yamaha
  4. 2001
  5. Kodiak Automatic
  6. Картер

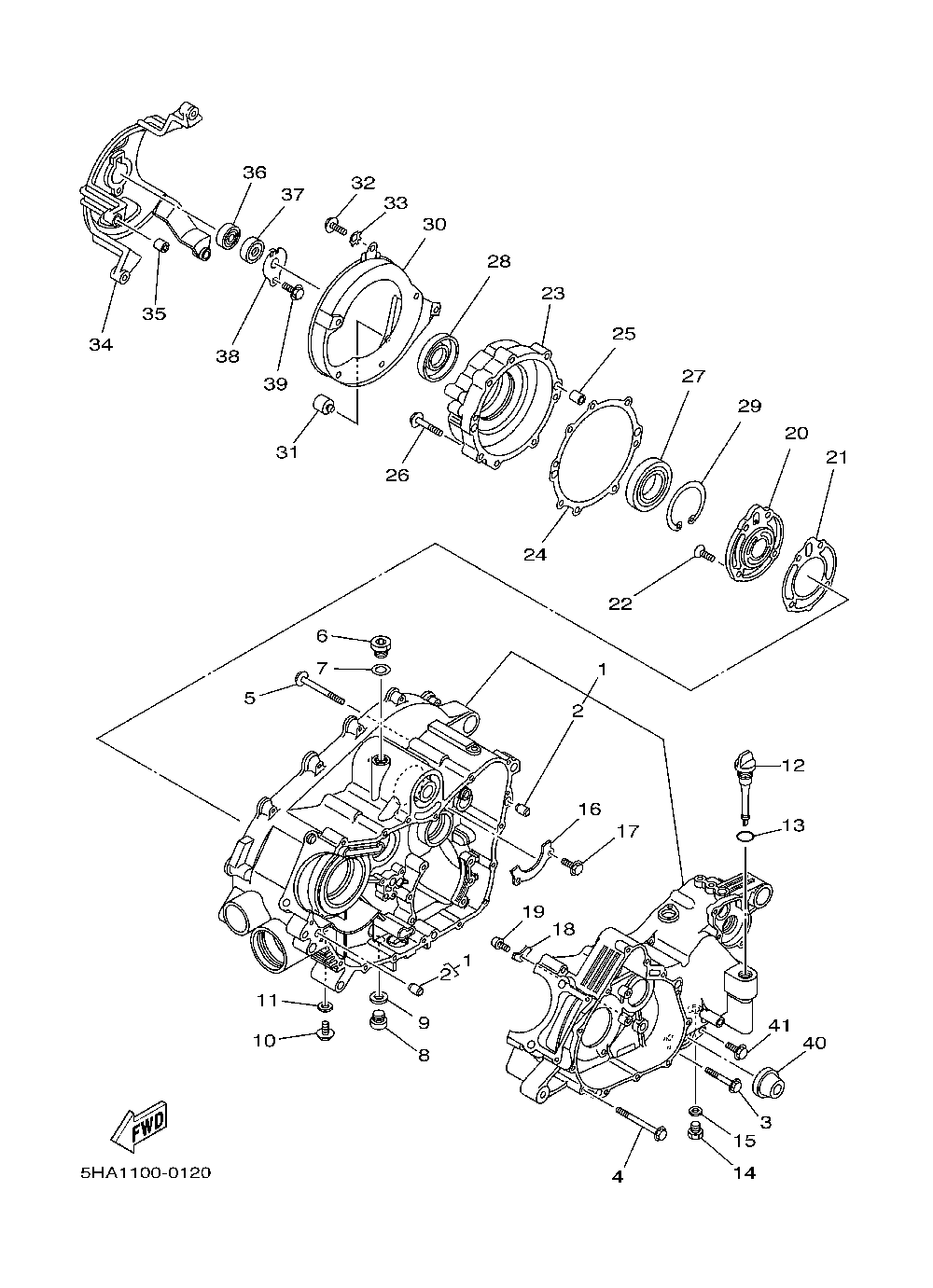

Картер

Yamaha Kodiak Automatic
Yamaha
#oem кодцена
1
5HA-15100-01-00
Crankcase Assy (u49)
2
99530-10014-00
Pin, Dowel (u49)
3
95027-06040-00
Bolt, Small Flange (u49)
4
95027-06065-00
Bolt, Small Flange (u49)
6
90340-18101-00
Plug, Straight Scrw (u49)
7
90201-186F1-00
Washer, Plate (u49)
8
90340-14046-00
Plug, Straight Scrw (u49)
9
214-11198-01-00
Gasket (u49)
10
95817-08012-00
Bolt, Flange (u49)
11
90201-08087-00
Washer, Plate (u49)
12
5GH-15362-00-00
Plug, Oil Level (u49)
13
93210-19522-00
O-ring (u49)
14
90340-14029-00
Plug, Straight Scrw (u49)
16
5GH-15388-00-00
Plate, Bearing Cover (u49)
17
95817-06012-00
Bolt, Flange (u49)
18
4XM-15383-00-00
Plate, Brng Cover (u49)
19
90151-06014-00
Screw, Countersunk (u49)
20
5GH-15414-00-00
Cover, Air Cleaner (u49)
21
5GH-15454-00-00
Gasket, Air Cleaner (u49)
22
98707-06020-00
Screw, Flat (u49)
23
5GH-15163-00-00
Housing, Bearing 1 (u49)
24
5GH-15463-00-00
Gasket, Carburetor (u49)
25
99510-10114-00
Pin, Dowel (u49)
27
93316-01003-00
Bearing (u49)
28
93102-32483-00
Oil Seal (u49)
29
93420-80066-00
Circlip (u49)
30
5GH-15333-00-00
Cover (u49)
31
5GH-15338-00-00
Damper, Engine Mount (u49)
32
97017-06016-00
Bolt, Hexagon (u49)
33
92907-06600-00
Washer, Plate (6ta) (u49)
34
5GH-15442-01-00
Housing, Bearing (u49)
35
91810-20001-00
Pin, Dowel (u49)
36
93306-20117-00
Bearing (u49)
37
93101-12168-00
Oil Seal (u49)
38
4WV-15381-00-00
Plate, Bearing Cover (u49)
39
95027-06012-00
Bolt, Flange (4my) (u49)
40
5GH-15385-00-00
Plug, Blind (u49)
41
91317-06020-00
Bolt (4fl) (u49)
5
95027-06065-00
Bolt, Small Flange (u49)
11
90430-08119-00
Gasket (u49)
15
214-11198-01-00
Gasket (u49)
26
95027-06040-00
Bolt, Small Flange (u49)
