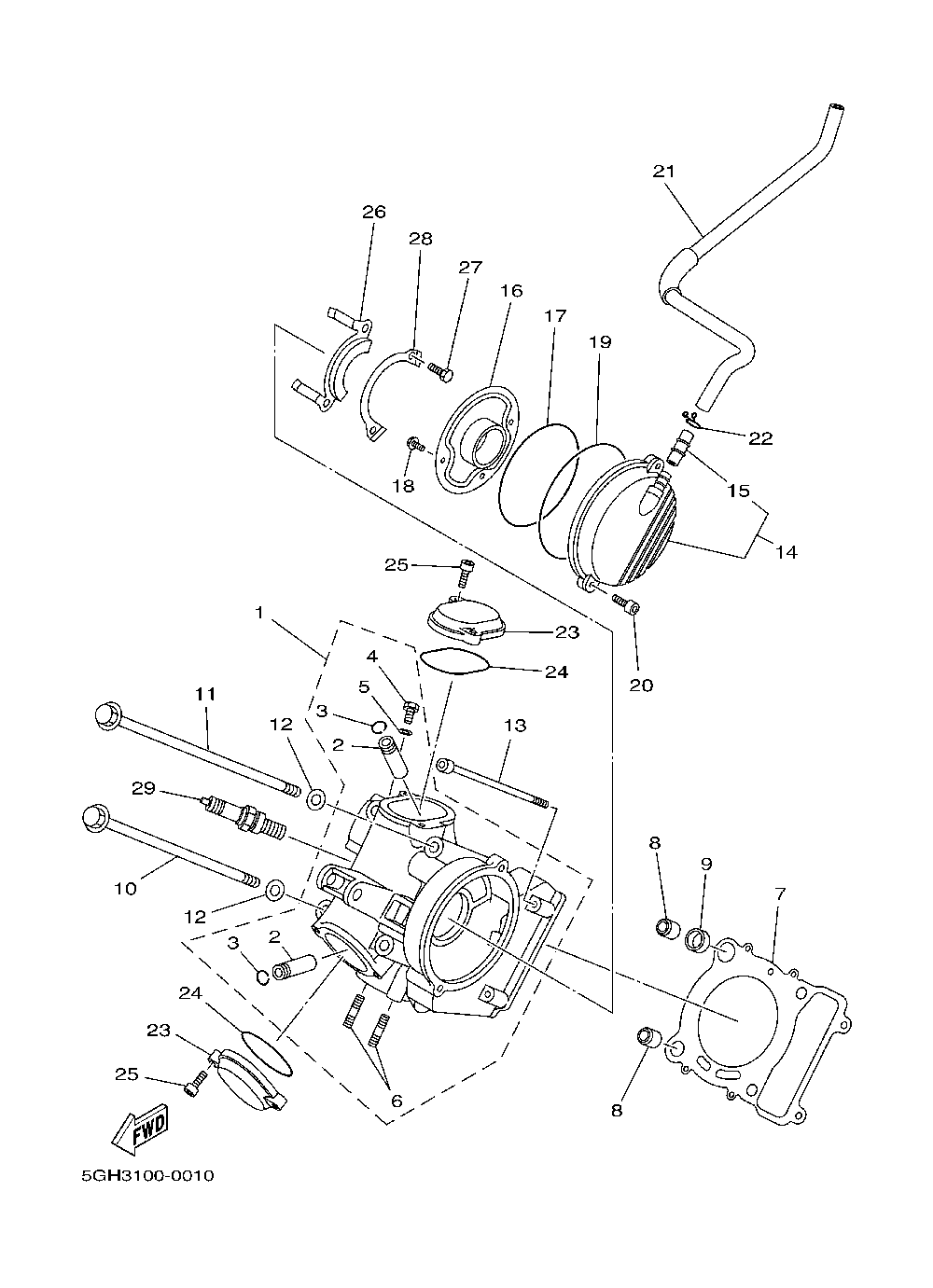

ГОЛОВКА ЦИЛИНДРА

Yamaha Kodiak Automatic
Yamaha
#oem кодцена
1
5GH-11110-00-00
Cylinder Head Assy (u49)
2
3Y1-11133-11-00
Guide, Intake Valve (u49)
3
93440-12052-00
Circlip, Outer (u49)
4
90401-06001-00
Bolt, Union (u49)
5
90430-06166-00
Gasket (u49)
6
95617-08620-00
Bolt, Stud 3 (u49)
7
5GH-11181-00-00
Gasket, Cylinder Head (u49)
8
99530-14016-00
Pin, Dowel (59v) (u49)
9
90430-14240-00
Gasket (u49)
10
90105-10137-00
Bolt, Flange (u49)
11
90105-10136-00
Bolt, Flange (u49)
12
90201-10128-00
Washer, Plate (u49)
13
91317-06140-00
Bolt (u49)
14
4WU-11160-01-00
Breather Assy (u49)
15
371-11167-01-00
Pipe, Breather 2 (u49)
16
4KB-11165-00-00
Plate, Breather (u49)
17
93210-92448-00
O-ring (u49)
18
95027-06012-00
Bolt, Flange (4my) (u49)
19
93211-06635-00
O-ring (u49)
20
91317-06025-00
Bolt (4my) (u49)
21
5GH-11166-00-00
Pipe, Breather 1 (u49)
22
90467-14015-00
Clip, Scissor (u49)
23
3Y1-11186-00-00
Cover, Cyl.head 2 (u49)
24
93210-57634-00
O-ring (u49)
25
91317-06020-00
Bolt (4fl) (u49)
26
5GH-1111F-00-00
Plate (u49)
28
90215-06184-00
Washer, Lock (u49)
29
NGK-DR8EA-00-00
Ngk Dr8ea 10pk (u49)
29
DR8-EA000-00-00
Ngk Dr8ea 10pk (u49)
23
3Y1-11186-10-00
Cover, Cylinder Head (u49)
