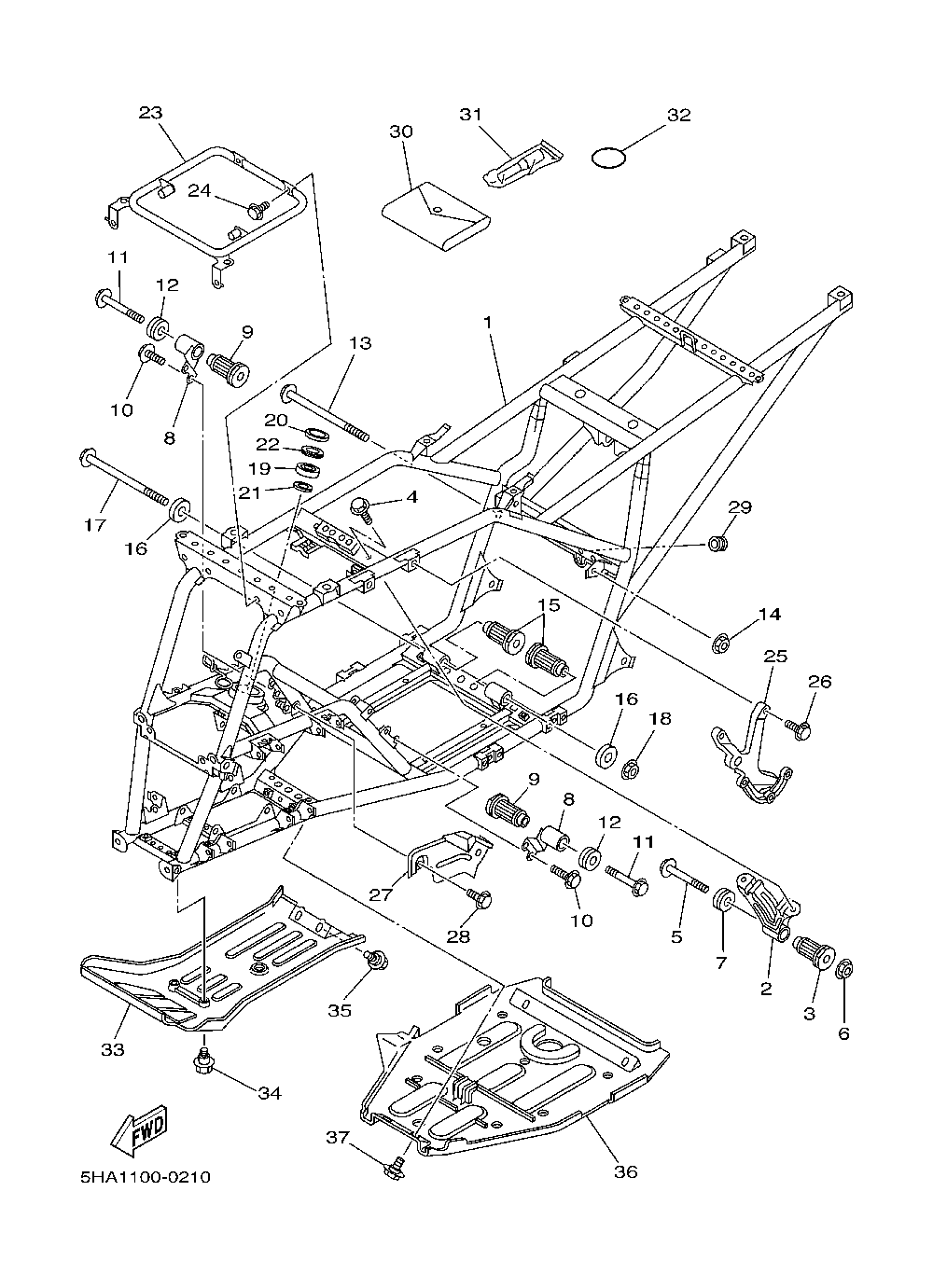

Рама

Yamaha Kodiak Automatic
Yamaha
#oem кодцена
1
5GH-21110-02-00
Frame Comp. (u49)
2
5GH-21315-00-00
Stay, Engine 2 (u49)
3
5GH-15336-00-00
Damper, Engine Mount (u49)
4
95817-08012-00
Bolt, Flange (u49)
5
95817-10110-00
Bolt, Flange (u49)
6
95607-10200-00
Nut, Self-locking (u49)
7
5GH-21486-00-00
Damper 2 (u49)
8
5GH-21316-00-00
Stay, Engine 3 (u49)
11
95817-10080-00
Bolt, Flange (u49)
13
90105-10055-00
Bolt, Washer Based (u49)
16
5GH-21488-00-00
Damper (u49)
19
93306-20348-00
Bearing (u49)
20
93102-25081-00
Oil Seal, Sd-type (u49)
21
93102-25099-00
Oil Seal, Sd-type (u49)
22
5GT-23872-00-00
Holder, Bearing (u49)
23
5GH-21513-00-00
Stay, Fender 1 (u49)
24
95817-06012-00
Bolt, Flange (u49)
25
5GH-21585-00-00
Arm (u49)
26
95817-08020-00
Bolt, Flange(8ab) (u49)
27
5GH-22825-00-00
Protector 1 (u49)
28
95817-06010-00
Bolt, Flange (u49)
29
90480-10517-00
Grommet (u49)
30
4WV-28100-00-00
Tool Kit (u49)
31
1NV-2811A-01-00
Gauge, Air (u49)
32
93210-64297-00
O-ring (u49)
33
5GH-2147A-00-00
Guard, Engine 1 (u49)
34
90109-063F5-00
Bolt (u49)
35
90109-063F1-00
Bolt (u49)
36
5GH-2147E-00-00
Guard, Engine 2 (u49)
22
2GU-23872-00-00
Holder, Bearing (u49)
9
5GH-15336-00-00
Damper, Engine Mount (u49)
10
95817-08012-00
Bolt, Flange (u49)
12
5GH-21486-00-00
Damper 2 (u49)
14
95607-10200-00
Nut, Self-locking (u49)
15
5GH-15336-00-00
Damper, Engine Mount (u49)
17
90105-10055-00
Bolt, Washer Based (u49)
18
95607-10200-00
Nut, Self-locking (u49)
37
90109-063F1-00
Bolt (u49)
