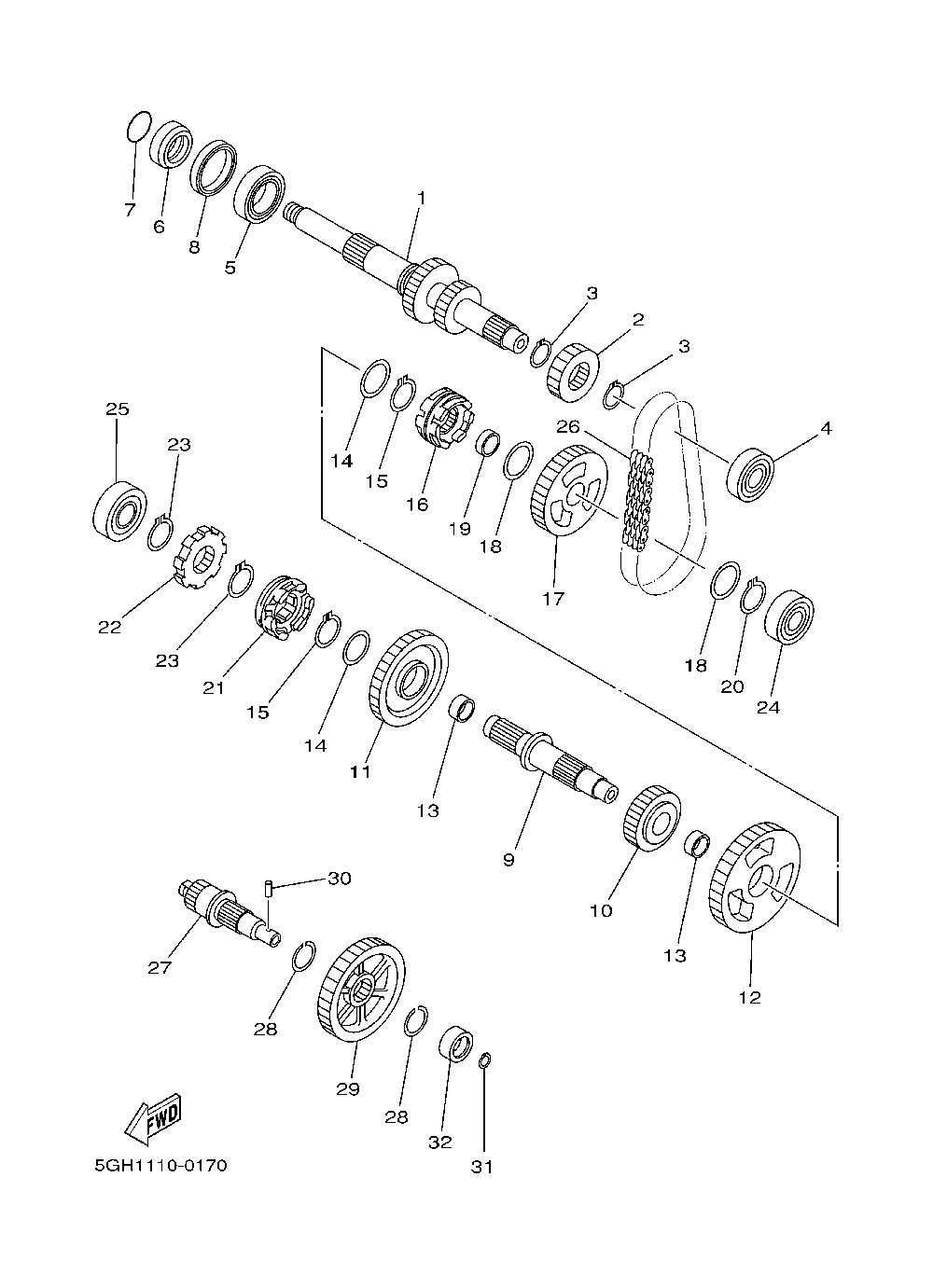

ТРАНСМИССИЯ

Yamaha Kodiak Automatic

ТРАНСМИССИЯ

#

oem код

название

цена

1

5GH-17681-00-00

Shaft, Secondary (u49)

Shaft, Secondary (u49)

2

5GH-17451-00-00

Sprocket, Drive (u49)

Sprocket, Drive (u49)

3

Circlip, Outer (u49)

Circlip, Outer (u49)

4

Bearing (u49)

Bearing (u49)

5

Bearing (u49)

Bearing (u49)

6

Collar (u49)

Collar (u49)

7

O-ring (u49)

O-ring (u49)

8

Oil Seal (u49)

Oil Seal (u49)

9

5GH-17402-01-00

Drive Axle Assy (u49)

Drive Axle Assy (u49)

10

5GH-17582-00-00

Gear, Middle Drive (u49)

Gear, Middle Drive (u49)

11

5GH-17223-00-00

Gear, High Wheel(3 (u49)

Gear, High Wheel(3 (u49)

12

5GH-17233-00-00

Gear, Low Wheel(45 (u49)

Gear, Low Wheel(45 (u49)

13

Bearing (u49)

Bearing (u49)

14

Washer, Plate (u49)

Washer, Plate (u49)

16

5GT-17285-00-00

Clutch, Dog (u49)

Clutch, Dog (u49)

17

5GH-17453-00-00

Sprocket, Driven(2 (u49)

Sprocket, Driven(2 (u49)

18

Washer, Plate (u49)

Washer, Plate (u49)

19

Bearing, Cyl.#10 (u49)

Bearing, Cyl.#10 (u49)

20

Circlip, S-type (u49)

Circlip, S-type (u49)

21

5GH-17285-00-00

Clutch, Dog (u49)

Clutch, Dog (u49)

22

5GH-17473-00-00

Stopper (u49)

Stopper (u49)

24

Bearing (u49)

Bearing (u49)

25

Bearing (3yl) (u49)

Bearing (3yl) (u49)

26

Chain (u49)

Chain (u49)

27

5GT-17523-00-00

Shaft (u49)

Shaft (u49)

29

5GH-17583-00-00

Gear, Middle Drive (u49)

Gear, Middle Drive (u49)

30

Pin, Dowel (u49)

Pin, Dowel (u49)

31

Circlip, Outer (u49)

Circlip, Outer (u49)

32

Bearing (u49)

Bearing (u49)

15

Circlip, Outer (u49)

Circlip, Outer (u49)

23

Circlip, Outer (u49)

Circlip, Outer (u49)

28

Circlip, Outer (u49)

Circlip, Outer (u49)
