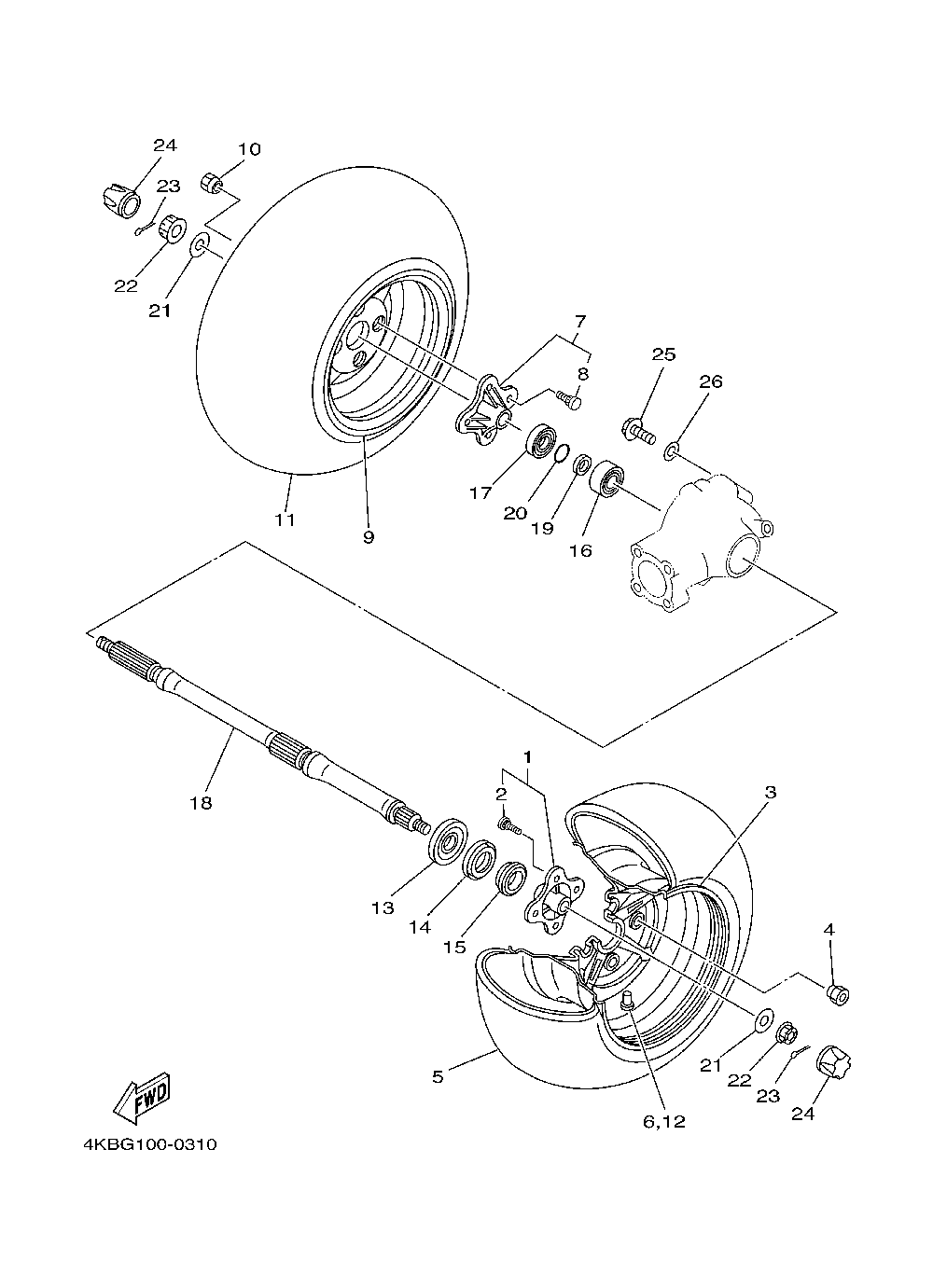

Заднее колесо

Yamaha Wolverine

Заднее колесо

#

oem код

название

цена

1

2HR-25383-01-00

Collar, Wheel (usa)

Collar, Wheel (usa)

2

Bolt, (for Atv Wheel (usa)

Bolt, (for Atv Wheel (usa)

3

4KB-25390-01-35

Rear Wheel Comp. (sl Ur Dpbse (usa)

Rear Wheel Comp. (sl Ur Dpbse (usa)

3

4KB-25390-01-MA

Wheel, Rear (tgm) Ur Pdg (usa)

Wheel, Rear (tgm) Ur Pdg (usa)

4

Nut, Spec'l Shape (at (usa)

Nut, Spec'l Shape (at (usa)

5

At23x10-12* Dun Kt40 Dunlop (usa)

At23x10-12* Dun Kt40 Dunlop (usa)

6

Valve, Rim Taiheiyo (usa)

Valve, Rim Taiheiyo (usa)

13

Bearing (1yw) (usa)

Bearing (1yw) (usa)

14

Oil Seal, Dd-type (usa)

Oil Seal, Dd-type (usa)

15

4SH-25367-01-00

Cover, Hub Dust (usa)

Cover, Hub Dust (usa)

16

Bearing (usa)

Bearing (usa)

17

Oil Seal, Sd-type (usa)

Oil Seal, Sd-type (usa)

18

4KB-25381-12-00

Axle, Wheel (usa)

Axle, Wheel (usa)

19

Collar (usa)

Collar (usa)

20

O-ring (usa)

O-ring (usa)

21

Washer, Plate (2hr) (usa)

Washer, Plate (2hr) (usa)

22

Nut, Castle (usa)

Nut, Castle (usa)

23

Pin, Cotter (usa)

Pin, Cotter (usa)

24

5GT-2512A-00-00

Cap, Wheel (usa)

Cap, Wheel (usa)

25

Bolt, Flange (3gd) (usa)

Bolt, Flange (3gd) (usa)

26

Washer, Plate (usa)

Washer, Plate (usa)

2

Bolt, Serration (usa)

Bolt, Serration (usa)

7

2HR-25383-01-00

Collar, Wheel (usa)

Collar, Wheel (usa)

8

Bolt, Serration (usa)

Bolt, Serration (usa)

9

4KB-25390-01-35

Rear Wheel Comp. (sl Ur Dpbse (usa)

Rear Wheel Comp. (sl Ur Dpbse (usa)

9

4KB-25390-01-MA

Wheel, Rear (tgm) Ur Pdg (usa)

Wheel, Rear (tgm) Ur Pdg (usa)

10

Nut, Spec'l Shape (at (usa)

Nut, Spec'l Shape (at (usa)
