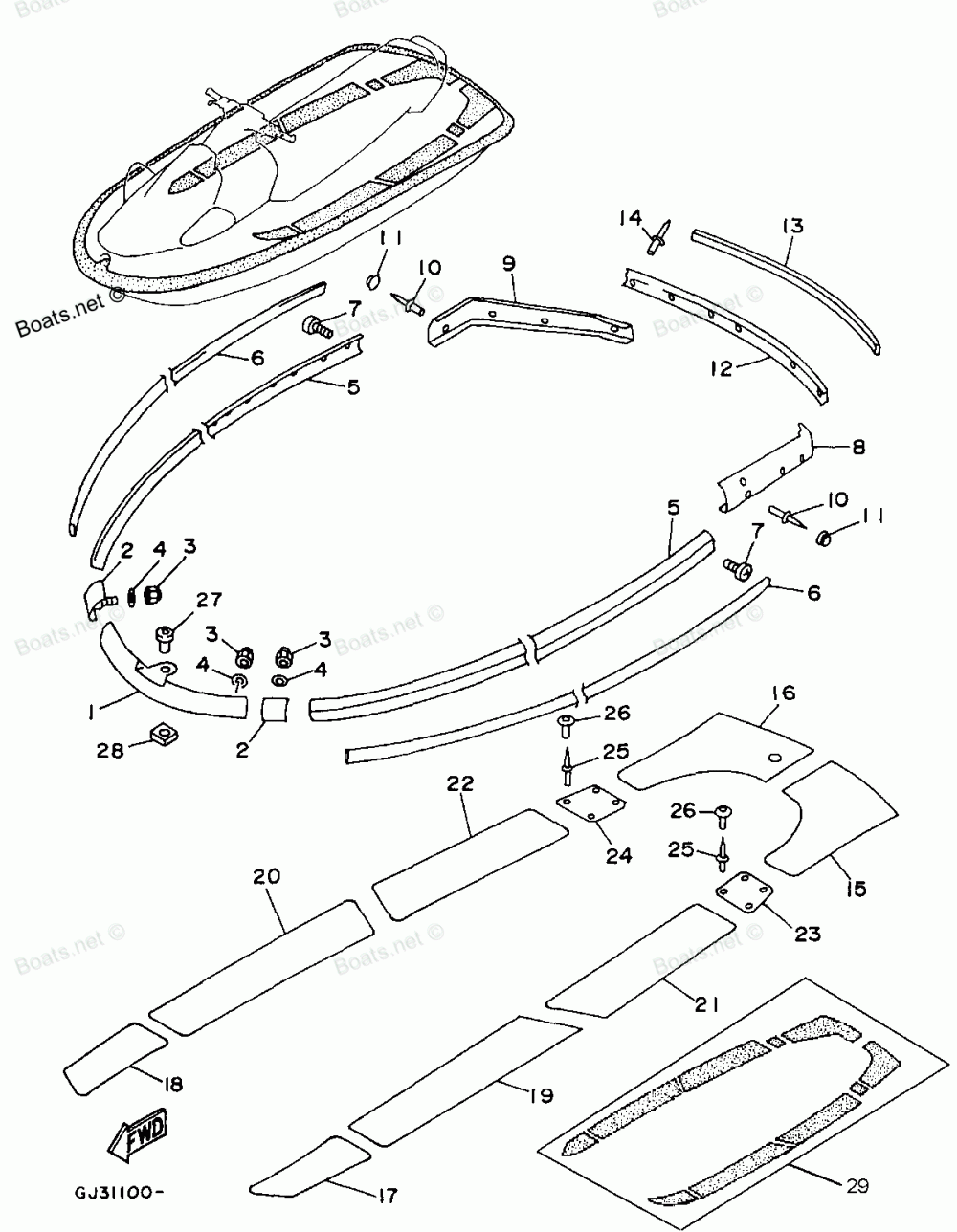

Gunwale Mat

Yamaha WAVE VENTURE 1100 - WVT1100U
Yamaha
#oem кодцена
1
GJ3-U2501-10-00
BOW GUNWALE COMP.
2
GJ1-6252A-30-00
J0INT, GUNWALE
3
95720-06300-00
Гайка
4
92990-06200-00
Шайба
5
GJ3-U2512-11-00
GUNWALE, SIDE
6
GJ3-U2519-10-00
INNER, GUNWALE
7
90169-059U1-00
Шуруп
8
GJ3-6251D-10-00
GUNWALE, STERN 1
9
GJ3-6251E-10-00
GUNWALE, STERN 2
10
90267-489U8-00
Заклёпка
11
GH1-6354D-40-00
CAP, HEAD
12
GJ3-U252C-10-00
COVER, GUNWALE 1
13
GJ3-U252D-10-00
COVER, GUNWALE 2
14
90267-489U8-00
Заклёпка
15
GJ3-63581-31-00
MAT, UPPER
16
GJ3-63581-41-00
MAT, UPPER
17
GJ3-U351H-11-00
MAT, STEP 1
18
GJ3-U351H-21-00
MAT, STEP 1
19
GJ3-U351J-11-00
MAT, STEP 2
20
GJ3-U351J-21-00
MAT, STEP 2
21
GJ3-U351K-30-00
MAT, STEP 3
22
GJ3-U351K-40-00
MAT, STEP 3
23
GJ3-6351M-30-00
MAT, STEP 4
24
GJ3-6351M-40-00
MAT, STEP 4
25
90267-48925-00
Заклёпка
26
GJ3-U352E-20-00
PLUG, MUSHROOM
27
FN8-61651-00-00
ROPE HOLE
28
EU0-61652-00-00
Гайка
29
GU2-MATKT-00-BK
MAT KIT BLACK
