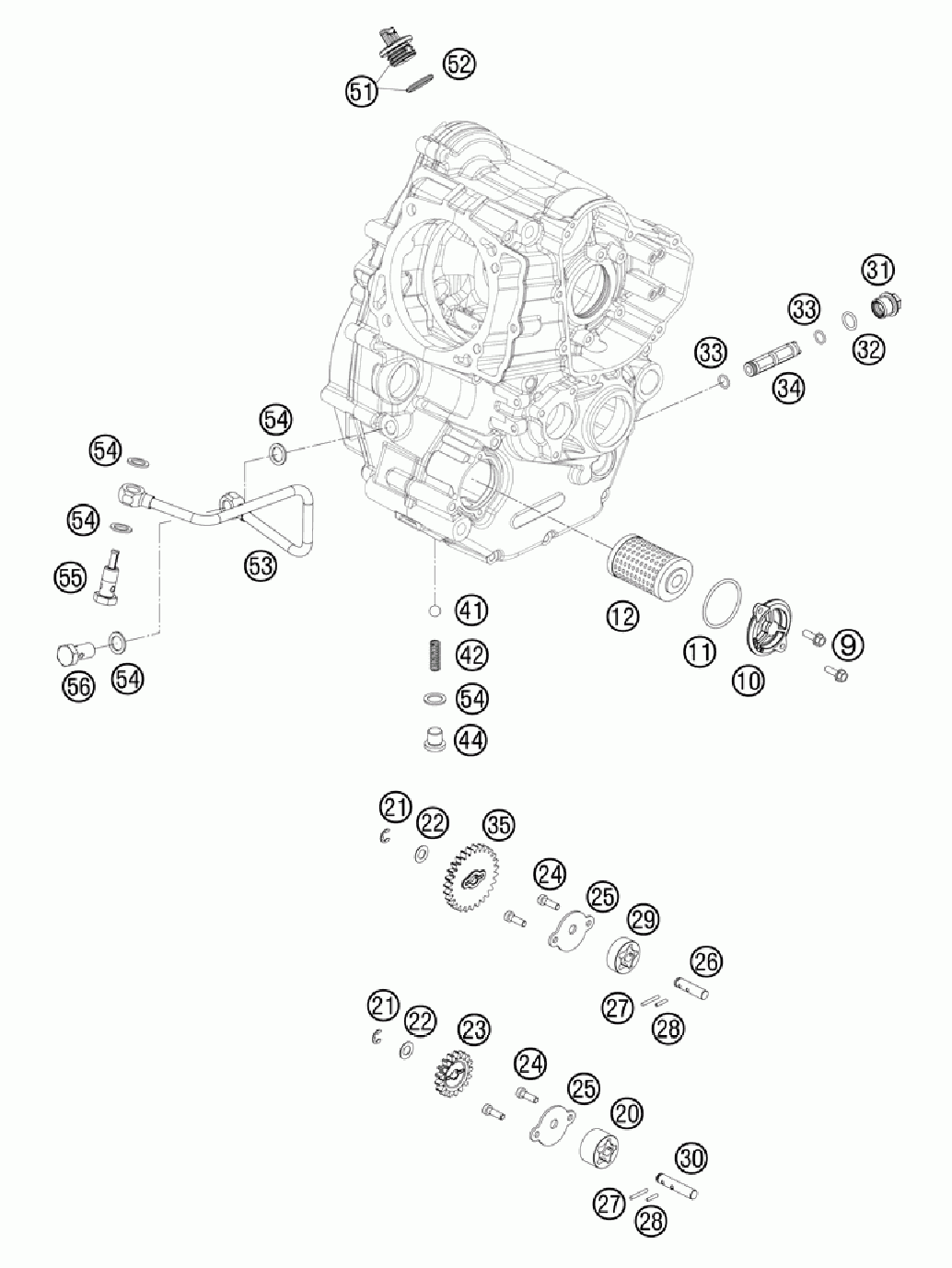

Масляная система

Husaberg 570 FE Engine
Husaberg
#oem кодцена
9
0025050166
Hh Collar Screw M5x16 Tx30
10
75038041200
Oilfilter Cap
11
07700390261
"o-ring 39, 34x2, 62"
12
77038005044
Oil Filter With Gasket 06
20
59038011012
Oilpump Rotor 12mm G-95r/003
21
0799060000
"tab Washer Din6799-rs 6, 0"
22
58038007755
"stop Disk 8, 1 X 15 X 0, 5"
23
78038001017
Oil Pump Gear 17 T
24
0984050123S
Cylind. Scr. Din6912 M5x12 8.8
25
81238003000
Крышка насоса
26
78038002000
Oil Pump Shaft Transm. Pump
27
0402251980
"needlerol.din5402 Nra 2, 5x19, 8"
28
0402251180
"needle Roller Din5402 2, 5x11, 8"
29
59038011010
Oilpump Rotor Cpl. 10mm G-73r
30
81238102000
Oil Pump Shaft Dp
31
78038018000
Screw Plug M17
32
0770125020
"o-ring 12, 50x2, 00 Nbr 70"
33
07700900151
"o-ring 9x1, 5 V75 Sh Din 3771"
34
78038015000
"oil Screen 12, 5x56, 5mm"
35
78038001027
Oil Pump Gear 27t
41
0401090003
Ball Din5401-9
42
58038023300
Pressure Spring L=25mm D=1mm
44
0908120153
"plug Din0908-m12x1, 5"
51
58030020100
Пробка M24x3
52
0770191015
"o-ring 19, 00x3, 00 Nbr"
53
81738035000
Oil Pipe
54
58038022000
"cu-seal Ring Din7603-12x18x1, 5"
55
81238016000
Hollow Screw M12 W. Strainer
56
0643120243
"hollow Screw Din7643-8 M12x1, 5"
