Сцепление Запчасти для квадроциклов ATV Yamaha Big Bear 400 4X4 (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

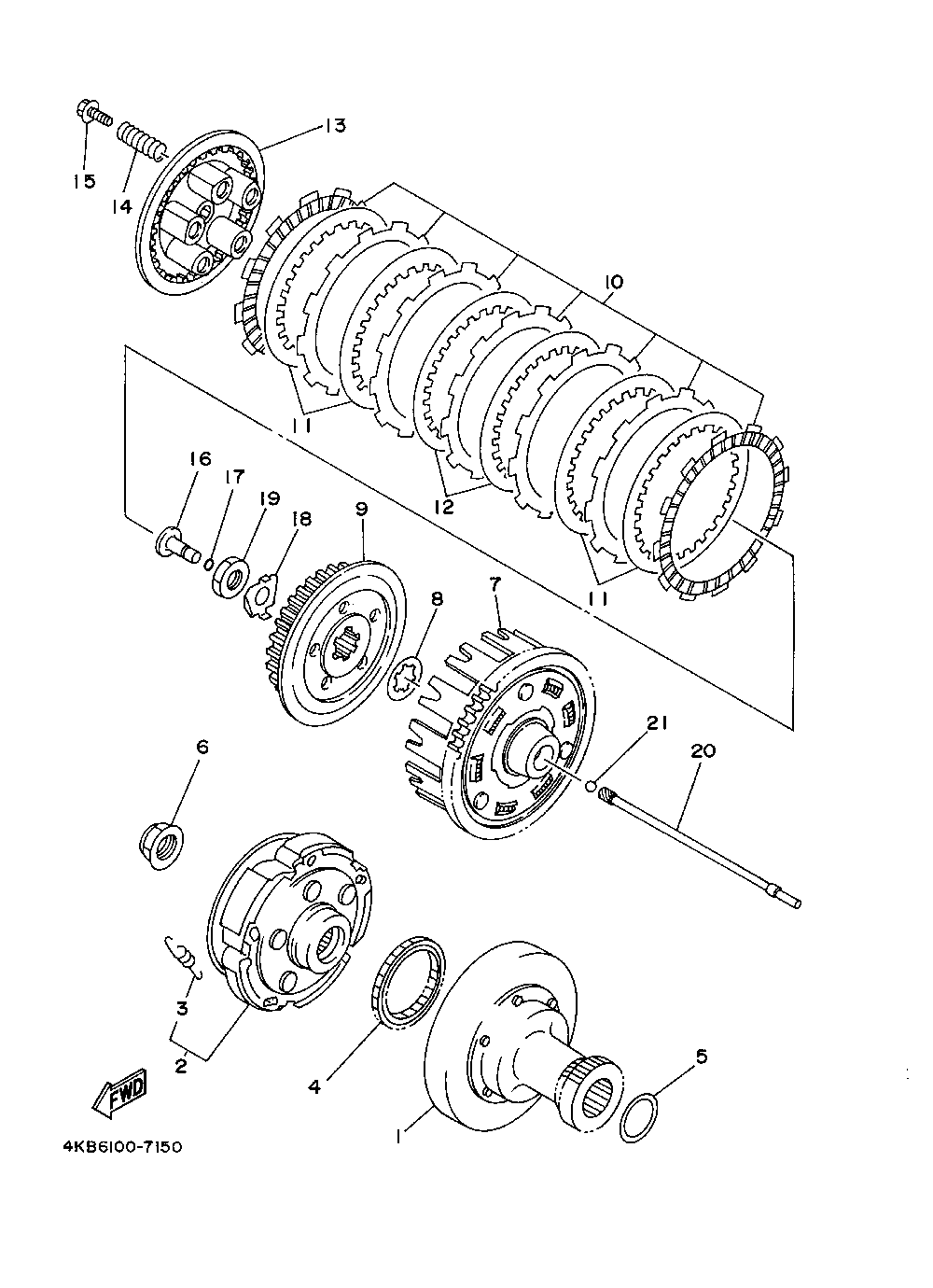

Сцепление

Yamaha Big Bear 400 4X4

Сцепление

#

oem код

название

цена

1

5EH-16611-00-00

Clutch Housing Comp. (5fu2)

Clutch Housing Comp. (5fu2)

2

5EH-16620-00-00

Clutch Carrier Assy (5fu2)

Clutch Carrier Assy (5fu2)

3

5EH-16626-00-00

Spring, Clutch Wt 1 (5fu2)

Spring, Clutch Wt 1 (5fu2)

4

4SH-16664-00-00

Clutch, One Way (5fu2)

Clutch, One Way (5fu2)

5

Washer, Plate (5fu2)

Washer, Plate (5fu2)

6

Nut (5fu2)

Nut (5fu2)

7

4KB-16150-00-00

Pri Drvn Gear (5fu2)

Pri Drvn Gear (5fu2)

8

30X-16154-00-00

Plate, Thrust 1 (5fu2)

Plate, Thrust 1 (5fu2)

9

55V-16371-00-00

Boss, Clutch (5fu2)

Boss, Clutch (5fu2)

10

5Y1-16331-01-00

Plate, Friction (5fu2)

Plate, Friction (5fu2)

11

168-16325-00-00

Plate, Clutch 2 (5fu2)

Plate, Clutch 2 (5fu2)

12

3J2-16324-00-00

Plate, Clutch 1 (5fu2)

Plate, Clutch 1 (5fu2)

13

5Y1-16351-00-00

Plate, Pressure 1 (5fu2)

Plate, Pressure 1 (5fu2)

14

Spring, Compression (5fu2)

Spring, Compression (5fu2)

15

Screw, With Washer (5fu2)

Screw, With Washer (5fu2)

16

4KB-16356-00-00

Rod, Push 1 (5fu2)

Rod, Push 1 (5fu2)

17

O-ring (5fu2)

O-ring (5fu2)

18

Washer, Lock (5fu2)

Washer, Lock (5fu2)

19

Nut, Hexagon (5fu2)

Nut, Hexagon (5fu2)

20

4KB-16357-00-00

Rod, Push 2 (5fu2)

Rod, Push 2 (5fu2)

21

Ball 11/32 (5fu2)

Ball 11/32 (5fu2)
