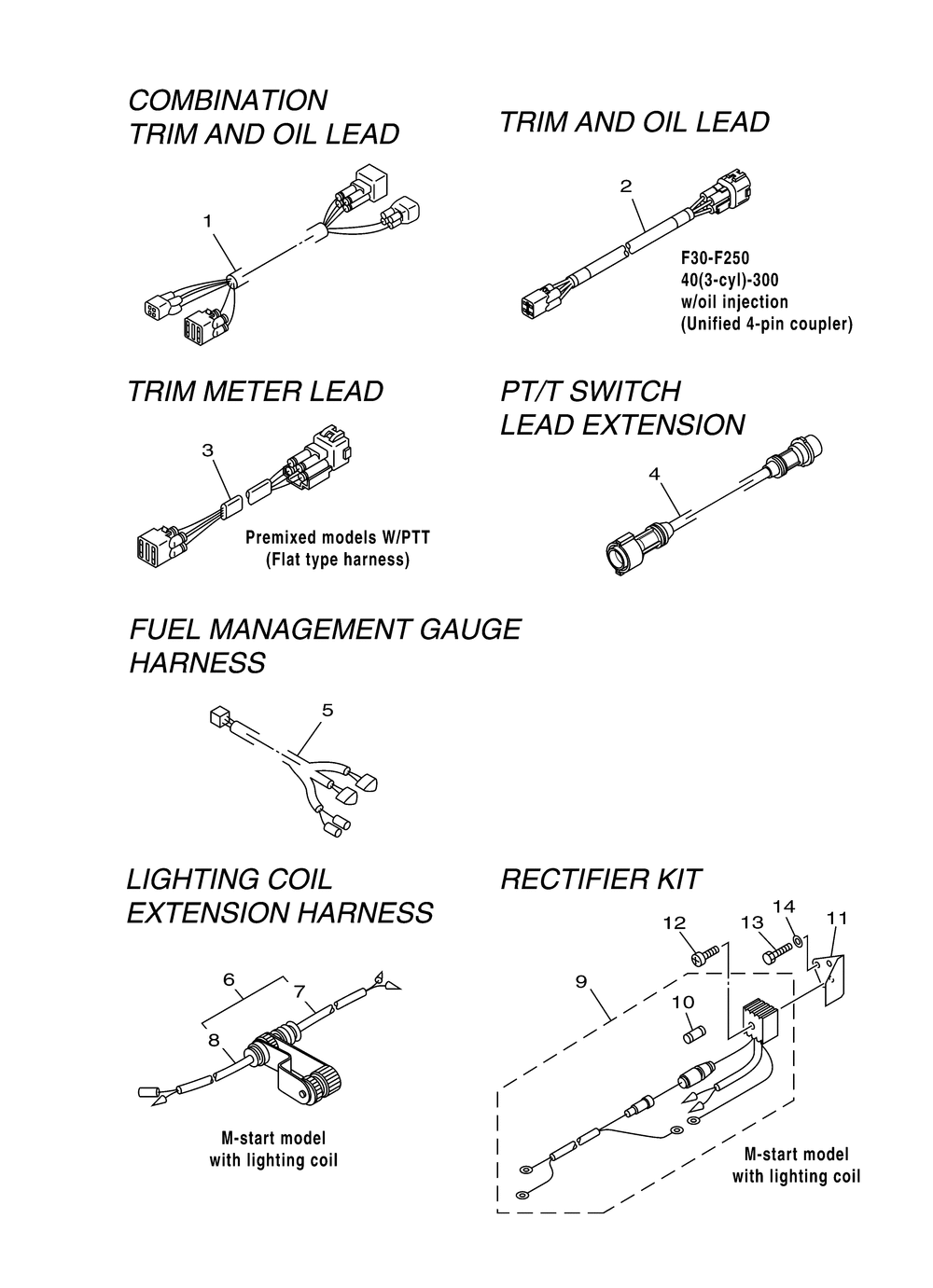

Electrical wire harness 2

Yamaha PARTS 2007 RIGGING 20
Yamaha
#oem кодцена
1
68F-82553-80-00
Extension, Wire Lead (l=8.0m)
1
68F-82553-70-00
Extension, Wire Lead (l=7.0m)
1
68F-82553-90-00
Extension, Wire Lead (l=9.5m)
1
68F-82553-50-00
Trim Wire Lead 5m (1 (l=5.0m)
1
68F-82553-A0-00
Trim Har(35') 11m (l=10.5m)
2
6Y5-83653-40-00
Trim Harness 30' 200 (l=9.0m) Ur (4p) 9m
2
6Y5-83653-50-00
Trim Harness 35' 200 (l=10.5m) Ur (4p) 10.5m
2
6Y5-83653-30-00
Trim Harness 26' 200 (l=8.0m) Ur (4p) 8m
2
6Y5-83653-10-00
Trim Harness 20' 200 (l=6.0m) Ur (4p) 6m
2
6Y5-83653-00-00
Trim Harness 16' 200 (l=5.0m) Ur (4p) 5m
3
6R3-82553-90-00
Oil, Trim, Ext., 31.2 (l=9.0m) Ur (4p)
3
6R3-82553-70-00
Trim Harness 23 Ft (l=7.0m) Ur (4p)
3
6R3-82553-50-00
Trim Harness 16ft (l=5.0m) Ur (4p)
3
6R3-82553-30-00
Trim Harness 10ft (l=3.0m) Ur (4p)
3
6R3-82553-80-00
Oil, Trim, Ext., 26.2 (l=8.0m) Ur (4p)
4
688-82586-11-00
7pin/ext Harn 6ft (2.0m) Ur (7p) 2m
5
6Y5-83553-F1-00
Wire, Lead Fm, Sende (l=8.0m)
6
682-84380-00-00
Rect.connector Asy
7
682-84381-00-00
2p Concent 1
8
682-84382-00-00
2p Concent 2
9
676-81970-01-00
Регулятор напряжения
10
682-82151-00-00
Fuse (12v-20a)
11
677-81975-00-00
Plate, Rectifire Fit
12
98580-05525-00
Винт
13
97013-06010-00
Болт
14
92990-06600-00
Шайба (отпускается по 5 шт)
