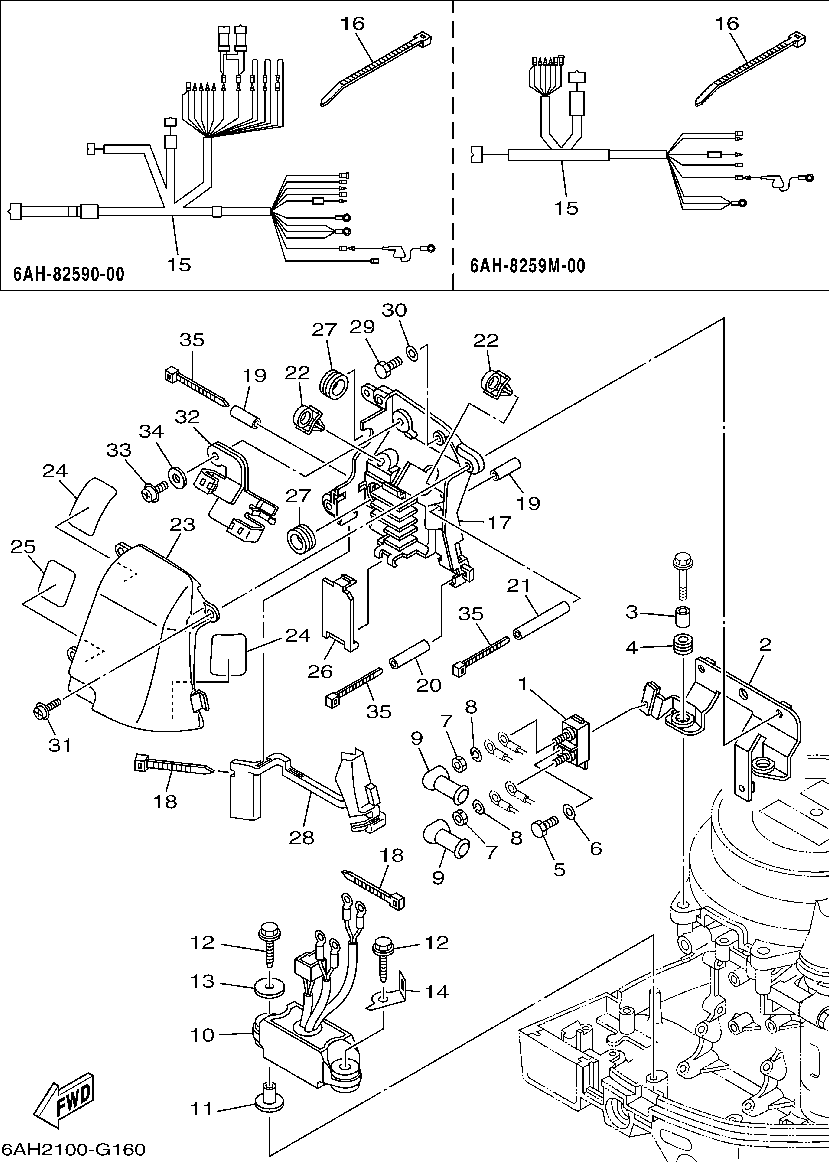

Электрика 4

Yamaha F20MSH-200/F15CMSH-20/F15CPLH-20/F15CELH-20/F15CESH-20/F15CMLH-2
Yamaha
#oem кодцена
1
6H5-81925-00-00
Terminal Ph/pr
2
6AH-81929-01-00
Bracket, Terminal Ph/pr
3
90387-06182-00
Collar Ph/pr
4
6AH-82317-00-00
Damper, Ignition Coi Ph/pr
5
97095-06014-00
Bolt Ph/pr
6
92990-06600-00
Washer Ph/pr (5 Per Pack)
7
90170-06M30-00
Nut, Hexagon Ph/pr
8
90204-06M00-00
Washer, Spring Ph/pr
9
6G5-82119-10-00
Cover, Lead Wire Ph/pr
10
6AH-81950-00-00
Relay Assy Ph/pr
11
90387-06M03-00
Collar Ph/pr
12
90109-06MA2-00
Bolt Ph/pr
13
90201-06416-00
Washer, Plate Ph/pr
14
6AH-82388-00-00
Plate Ph/pr
15
6AH-8259M-00-00
Wire Harness Assy 2 Ur Ph
15
6AH-82590-00-00
Wire Harness Assy Ur Pr
16
90465-13M39-00
Clamp Ph/pr (5 Per Pack)
17
6AH-8552A-10-00
Housing Ph/pr
18
90465-13M39-00
Clamp Ph/pr (5 Per Pack)
19
90445-07025-00
Hose Ph/pr
20
90445-07026-00
Hose Ph/pr
21
90445-07027-00
Hose Ph/pr
22
90464-12001-00
Clamp Ph/pr
23
6AH-8552E-10-00
Cover, Case Ph/pr
24
6AH-42735-10-00
Protector Ph/pr
25
6AH-42735-20-00
Protector Ph/pr
26
6AH-85537-10-00
Cover Ph/pr
27
90480-19368-00
Grommet(75v) Ph/pr
28
6AH-85547-10-00
Damper Ph/pr
29
97095-06014-00
Bolt Ph/pr
30
92990-06600-00
Washer Ph/pr (5 Per Pack)
31
97985-06214-00
Screw, With Washer Ph/pr
32
6AH-85525-10-00
Cover Ph/pr
33
97985-06214-00
Screw, With Washer Ph/pr
34
90201-06M02-00
Washer, Plate Ph/pr
35
90464-76001-00
Tie-wrap Ph/pr
