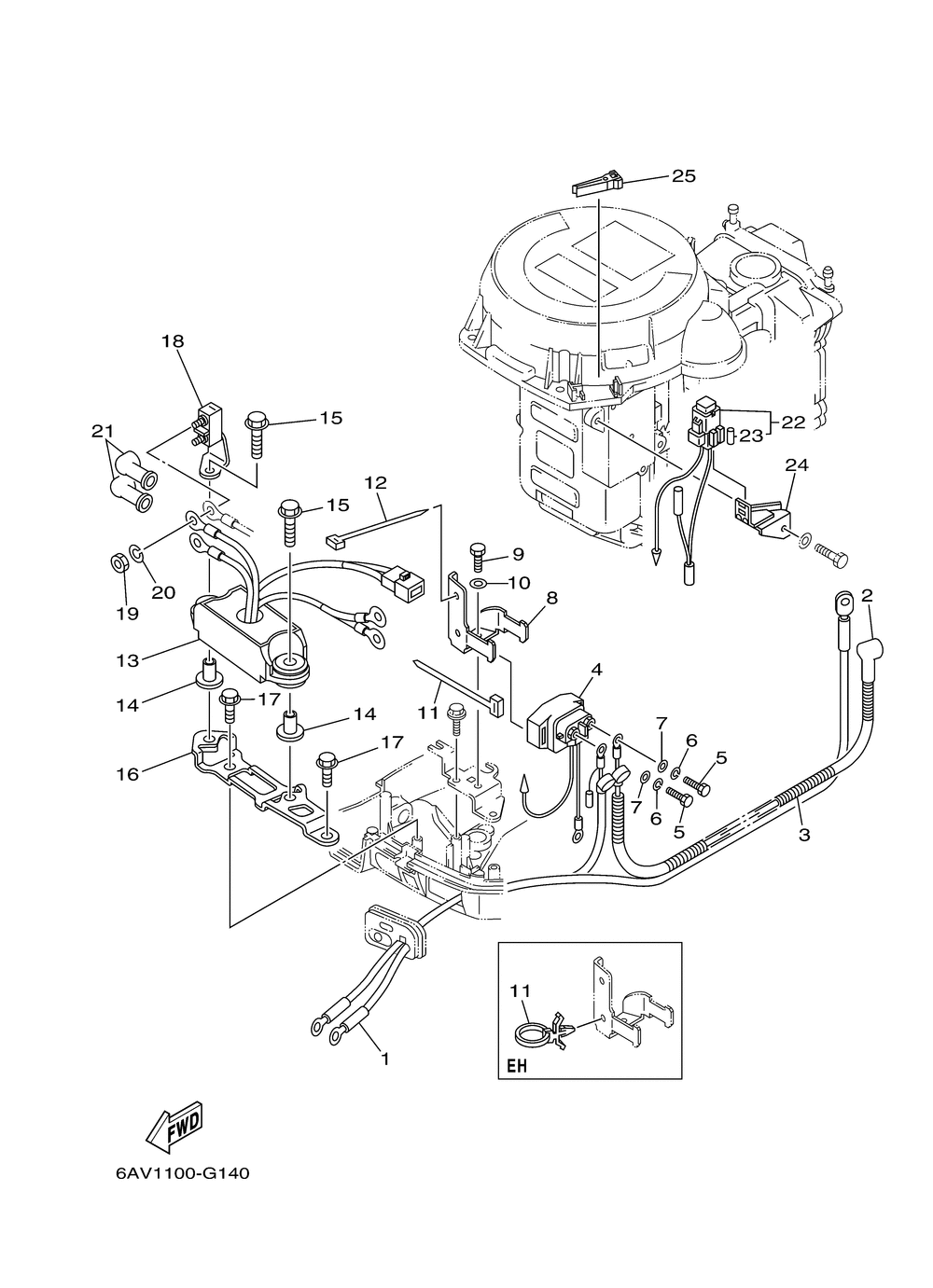

Электрика 2

Yamaha 6AVK 1000001~ T9.9GELH/T9.9GPXR/T9.9GPLH/T9.9GPLR/T9.9GEXH/T9.9G
Yamaha
#oem кодцена
1
69G-82105-00-00
Battery Cable (l: 3.0m) Eh/ph
2
6H4-82117-00-00
Wire, Lead Eh/ph
3
90446-10M86-00
Hose (l140) Eh/ph
4
68T-81940-00-00
Starter Relay Assy Eh/ph
5
97085-06010-00
Bolt Eh/ph
6
92995-06100-00
Washer Eh/ph (5 Per Pack)
7
92990-06600-00
Washer Eh/ph (5 Per Pack)
8
68T-81945-01-00
Plate, Switch Fittin Eh/ph
9
97080-06012-00
Bolt Eh/ph
10
92990-06600-00
Washer Eh/ph (5 Per Pack)
11
90465-13M11-00
Clamp Ur Ph
11
90465-12M56-00
Clamp (62t) Ur Eh
12
90465-13M11-00
Clamp Ph
13
69G-81950-00-00
Relay Assy Ph
14
90387-06M03-00
Collar Ph
15
90119-06M56-00
Bolt, With Washer Ph
16
69G-81948-01-00
Bracket Ph
17
90109-06M86-00
Bolt Ph
18
69G-81925-00-00
Terminal Ph
19
90170-06M30-00
Nut, Hexagon Ph
20
90204-06M00-00
Washer, Spring Ph
21
6G5-82119-10-00
Cover, Lead Wire Ph
22
68T-82150-00-00
Fuse Holder Assy Eh/ph
23
67F-82151-40-00
Fuse (10a) (10a-bl)
24
68T-82171-01-00
Stay, Fuse Box Eh/ph
25
67F-2812A-00-00
Puller, Fuse Eh/ph
