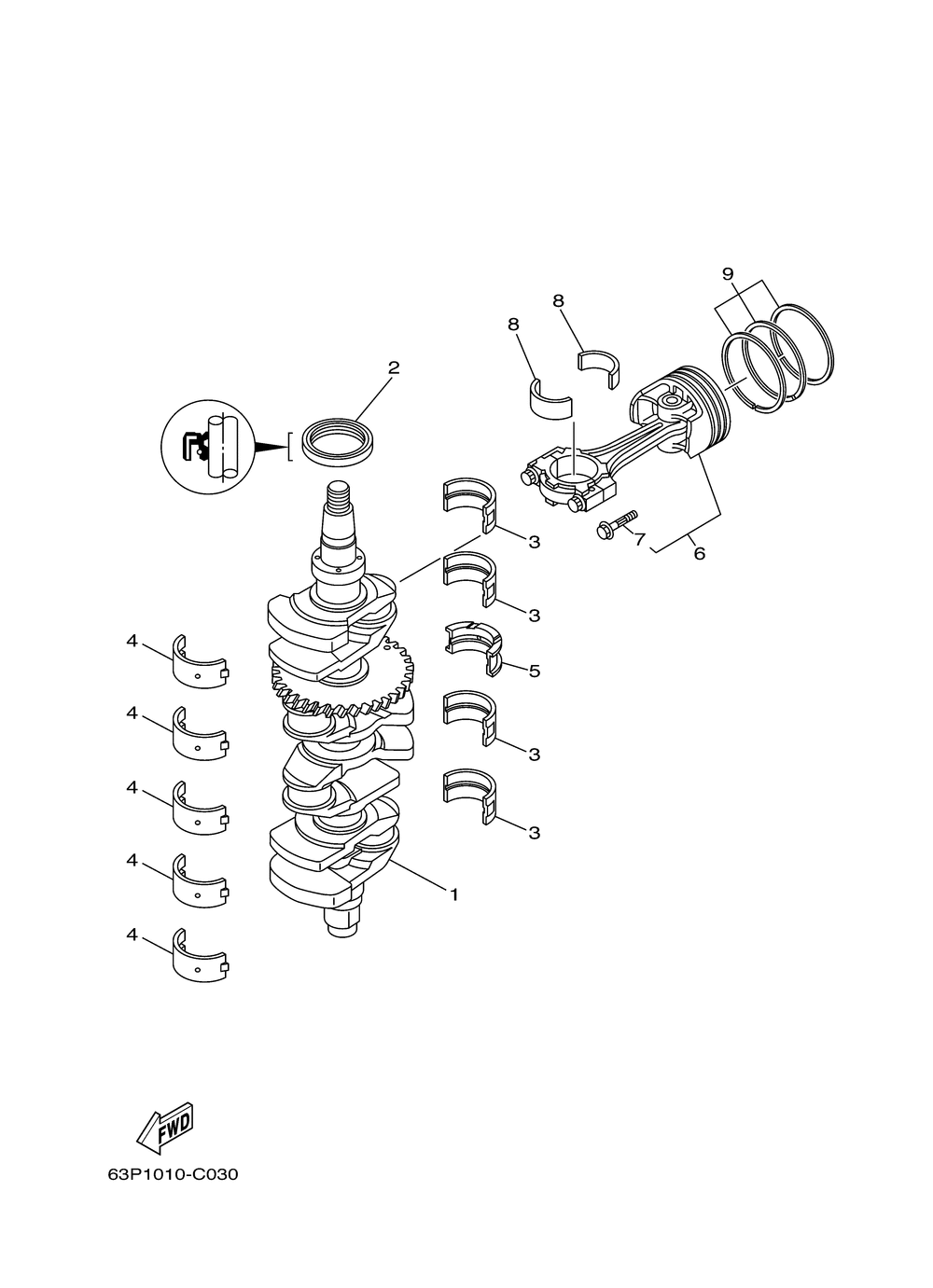

Коленчатый вал и Поршень

Yamaha 63P-1029405~1049286 LF150TXR 64P-1003507~1006748 LF150TXR/F150TX
Yamaha
#oem кодцена
1
99999-03779-00
Crank Shaft
2
93102-60004-00
Сальник
3
63P-11416-12-00
Plane Bearing, Crank Ur Red
3
63P-11416-02-00
Plane Bearing, Crank Ur Green
3
63P-11416-20-00
Plane Bearing, Crank Ur Yellow
4
63P-11417-02-00
Plane Bearing, Crank Ur Green
4
63P-11417-12-00
Plane Bearing, Crank Ur Red
4
63P-11417-22-00
Plane Bearing, Crank Ur Yellow
4
63P-11417-30-00
Plane Bearing, Crank Ur Blue/green
5
63P-11426-00-00
Plane Bearing, Crank Ur Green
5
63P-11426-20-00
Plane Bearing, Crank Ur Yellow
5
63P-11426-10-00
Plane Bearing, Crank Ur Red
6
63P-W1164-01-00
Piston/con-rod Assy (std)
6
63P-W1164-10-00
Piston/con-rod Assy( (0.25mm Os) Ap
7
63P-11654-00-00
Болт шатуна
8
63P-11656-01-00
Plane Bearing, Conne Ur Green
8
63P-11656-11-00
Plane Bearing, Conne Ur Blue
8
63P-11656-21-00
Plane Bearing, Conne Ur Red
9
63P-11603-01-00
Piston Ring Set (std (std)
9
63P-11604-00-00
Piston Ring Set (0.2 (0.25mm O/s) Ap
