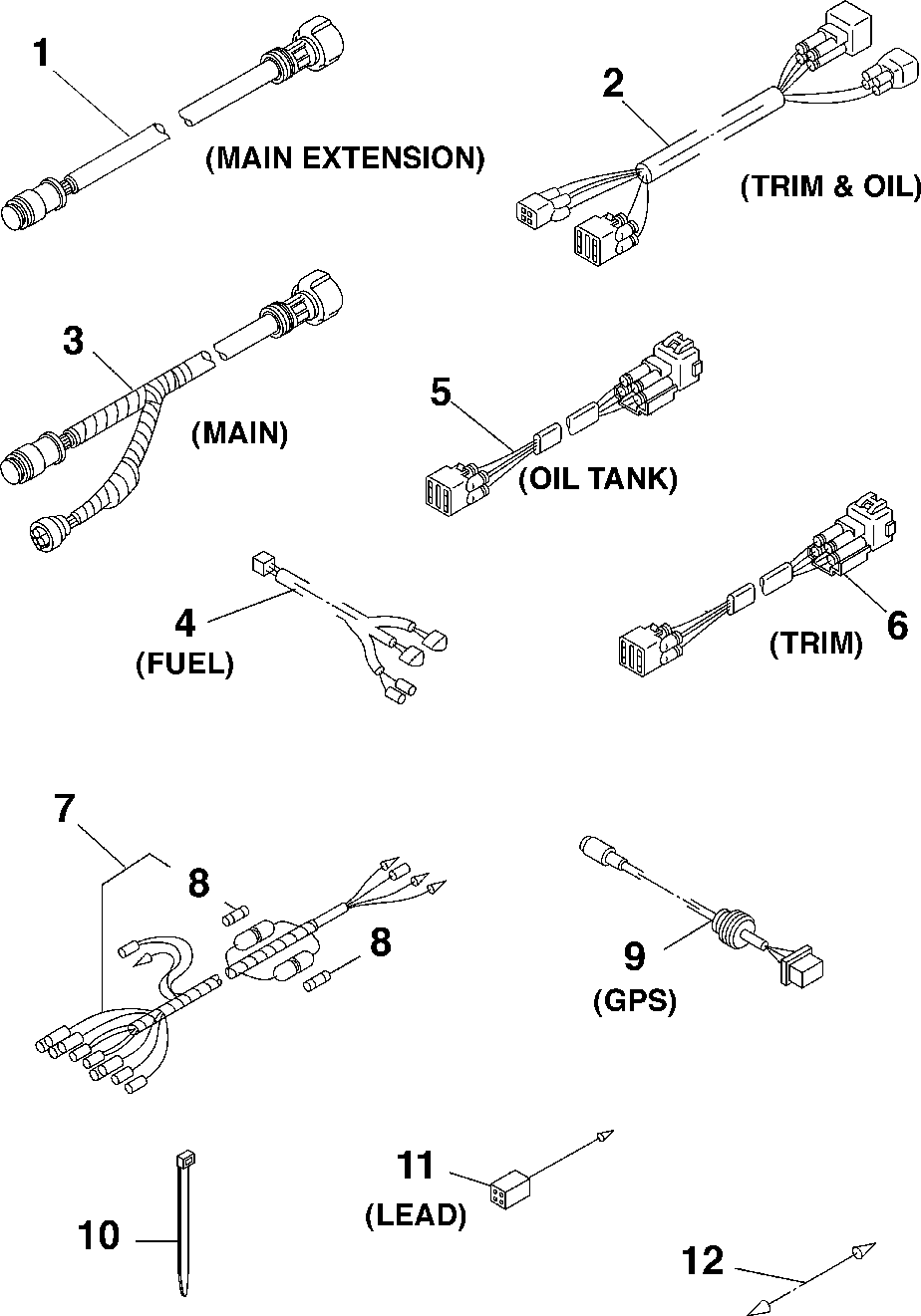

Electrical wire harnesses

Yamaha RIGGING 20
Yamaha
#oem кодцена
1
688-8258A-20-00
Wire Harness(10p5m Extension, Main
1
688-8258A-10-00
10pin/ext Harn 6ft Extension, Main
1
688-8258A-30-00
10p/ext Harn 10ft Extension, Main
1
703-8258A-00-00
Harness, 7pin-10pin 7 To 10 Pin Adapter
2
68F-82553-80-00
Extension, Wire Lead Trim & Oil Gauge
2
68F-82553-70-00
Extension, Wire Lead Trim & Oil Gauge
2
68F-82553-90-00
Extension, Wire Lead Trim & Oil Gauge
2
68F-82553-60-00
Trim Har(20') 6m Trim & Oil Gauge
2
68F-82553-50-00
Trim Wire Lead 5m (1 Trim & Oil Gauge
3
688-8258A-50-00
10p/main/hrns/16ft Main 10 Pin
3
6K1-8258A-40-00
10p/main/hrns/26ft Main 10 Pin
3
61B-8258A-01-00
10p Harness(31') 9m Ap (10p)
3
688-8258A-60-00
Wire Harness 20ft Main 10 Pin
4
6Y5-83553-F1-00
Wire, Lead Fm, Sende Ap
5
6R3-85721-50-00
Wire, Lead Oil Tank
5
6R3-82553-70-00
Trim Harness 23 Ft Ap Rp, 7m
5
6R3-85721-30-00
Oil, Trim, Ext., 9.8 Oil Tank
5
6R3-85721-80-00
Oil Tank Harn 26ft Oil Tank
6
6R3-82553-30-00
Trim Harness 10ft Trim Gauge
6
6R3-82553-80-00
Oil, Trim, Ext., 26.2 Trim Gauge
6
6R3-82553-50-00
Trim Harness 16ft Trim Gauge
6
6R3-82553-70-00
Trim Harness 23 Ft Trim Gauge
7
6Y5-83553-N0-00
Gauge Harness/2 Fuse
8
1E6-82151-00-00
Fuse (10 Amp, 30 Mm
9
6Y5-87122-S0-00
Штуцер
11
6Y5-82149-00-00
Blue Rigging Lead Y-lead
11
6Y5-82117-00-00
Black Rigging Lead Y-lead
11
6Y5-82521-00-00
Yell Rigging Lead Y-lead
12
703-82531-00-00
Wire, Lead Ap
