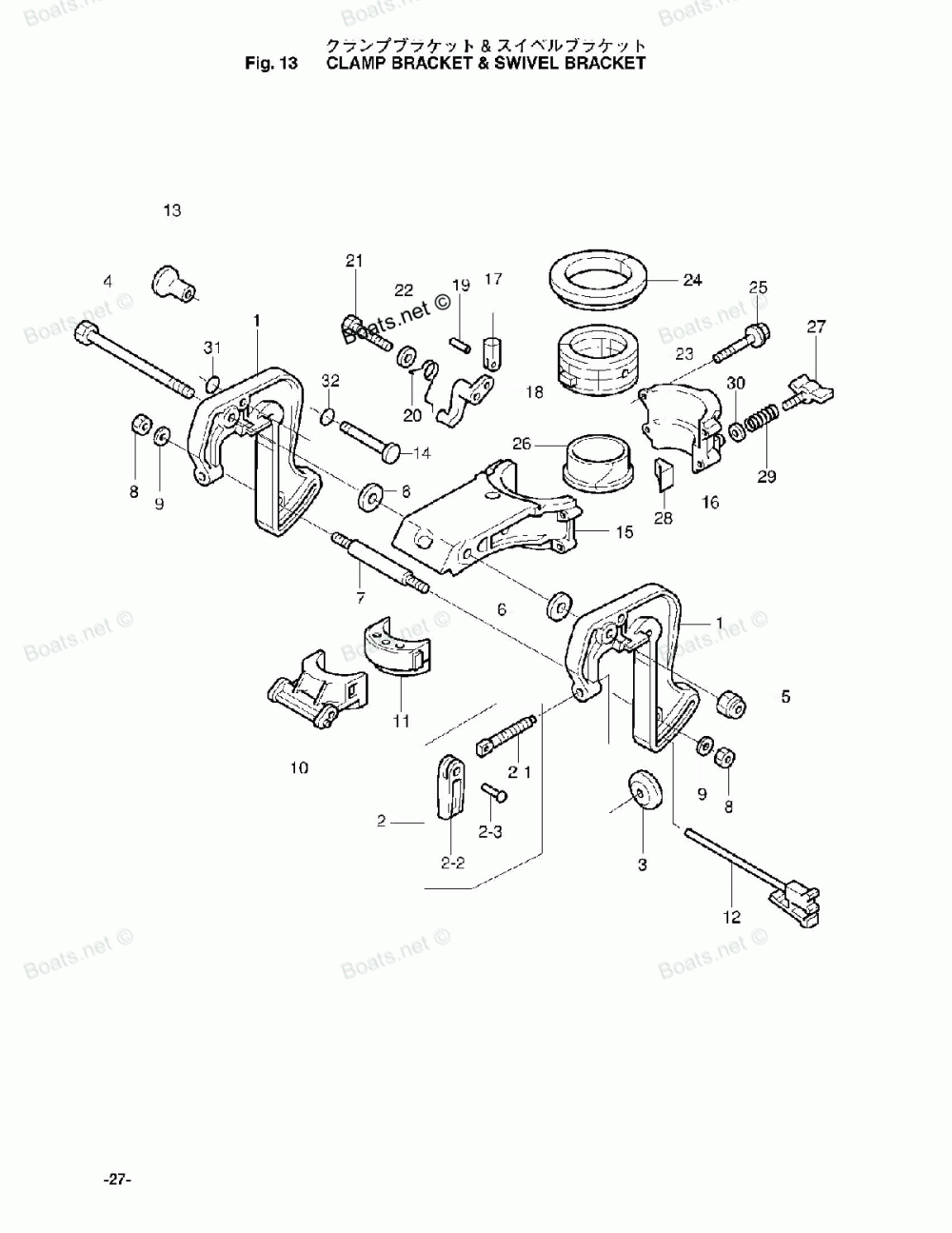

Clamp Bracket & Swivel Bracket

Tohatsu MFS3.5B
Tohatsu
#oem кодцена
1
3ABQ621112
CLAMP BRACKET (TILT PIN HOLE 10)
1
3ABQ621111
CLAMP BRACKET (TILT PIN HOLE 10)
1
3ABQ621110
CLAMP BRACKET (TILT PIN HOLE 8)
2
3AB621000M
CLAMP SCREW ASSY
2-1
369621031M
CLAMP SCREW
2-2
3AB621020M
CLAMP SCREW HANDLE
2-3
3C8621042M
RIVET, 3-22
3
332621011M
CLAMP SCREW PAD
4
309621152M
BOLT, 8 -122
5
9304030800
NYLON NUT, 8-P1.25
6
307621161M
WASHER, 8.5-28-1
7
309621180M
DISTANCE PIECE
8
9301E30600
Гайка
9
9401E30600
Шайба
10
3AB622120M
THRUST SUPPORTER
11
3AB613361M
DAMPER (LOWER)
12
3F0621600M
Штанга
13
309624630M
TILT STOPPER KNOB
14
3AB624643M
TILT STOPPER 10 (WITHOUT O-RING)
14
3AB624640M
TILT STOPPER 10 (WITH O-RING)
14
309624640M
TILT STOPPER 8 (WIITHOUT O-RING)
15
3ABQ623911
SWIVEL BRACKET "A"
16
3ABQ623921
SWIVEL BRACKET "B"
17
3AB663341M
STEERING STOPPER
18
3AB630680M
STOPPER LEVER
19
9514030212
SPRING PIN, 2-12
20
3AB663360M
STOPPER LEVER SPRING
21
9161E30650
Болт
23
393624160M
STEERING BUSHING
24
3H6623250M
THRUST BUSHING
25
3V1600011M
BOLT, 6 - 35 PRE-COATED
26
3AB623211M
PIVOT BUSHING (BLACK)
26
309623211M
PIVOT BUSHING (WHITE)
27
309Q624422
FRICTION PLATE SCREW
28
309624412M
FRICTION PLATE
29
309624461M
FRICTION SPRING
31
301660230M
O-RING, 2.4 - 9.5
32
3AB101640M
O-RING, 1.25-8
