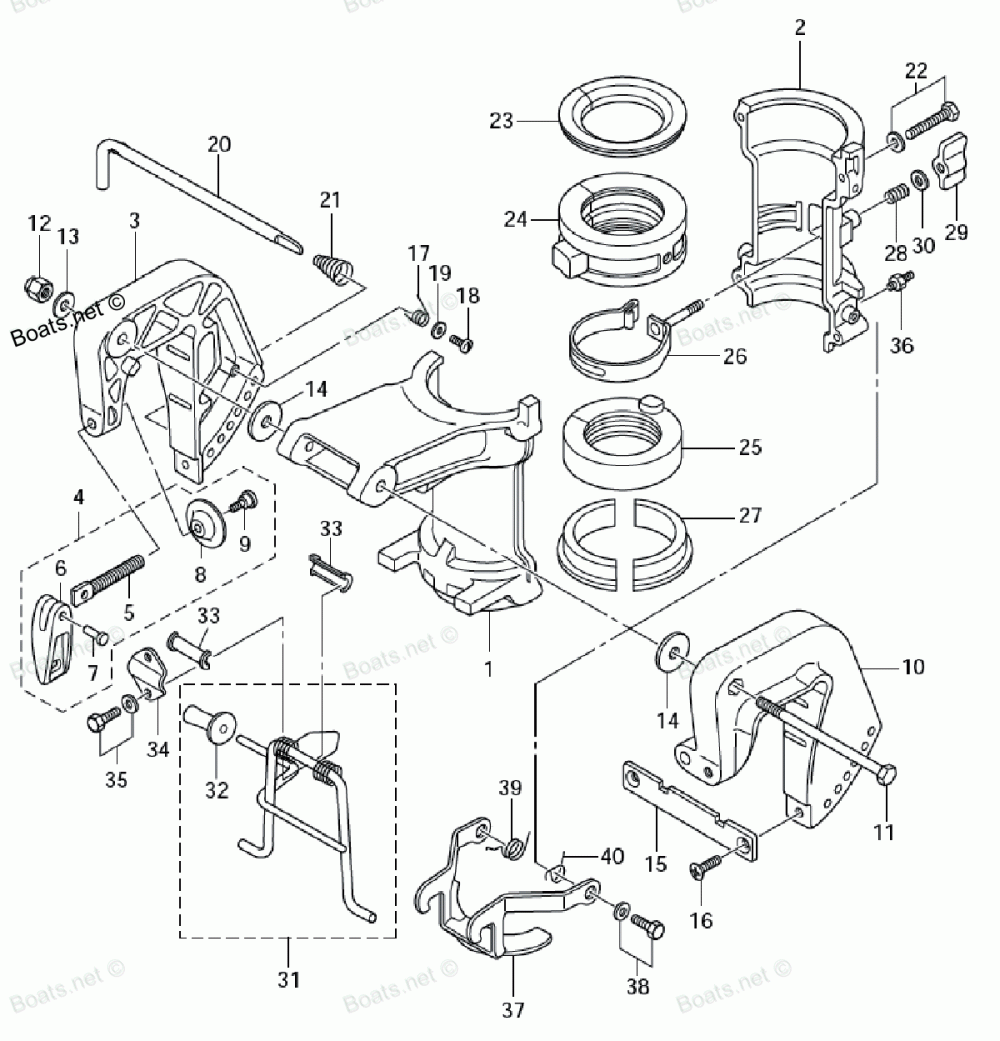

Bracket & Reverse Lock

Tohatsu MFS5C
Tohatsu
#oem кодцена
1
3H6Q623910
SWIVEL BRACK A
2
3H6Q623921
SWIVEL BRACK B
3
369Q621123
CLAMP BRACKET, RIGHT
4
3GTQ621050
CLAMP SCREW KIT
5
369621060M
CLAMP SCREW
6
3ABQ621020
CLAMP SCREW HANDLE
7
3C8621042M
RIVET 3-22
8
332621011M
CLAMP SCREW PAD
9
3C8621070M
SHOULDER BOLT
10
369Q621132
CLAMP BRACKET
11
309621152M
BOLT 8-122
12
9304030800
NYLON NUT 8P1.25
13
9401E30800
Шайба
14
307621161M
WASHER 8.5-28-1
15
3B2621180M
DISTANCE PLATE BRACKET
16
9216E30612
Винт
17
369621461M
STERN BRACKET SPRING
18
9217030406
Винт
19
369621470M
WASHER 4.3-16-1.5
20
350621212M
Штанга
21
369621222M
THRUST ROD SPRING
22
9101E35640
Болт
23
3H6623250M
THRUST BUSHING
24
3H6613010M
BUSHING UPPER STEERING
25
3H6624171M
BUSHING LOWER STEERING
26
3H9624181M
FRICTION BAND ASSEMBLY
27
3H6624240M
THRUST PLATE, LOWER
28
3H9624460M
SPRING CO-PILOT
29
3H9624420M
WING NUT M6
30
3C8663080M
WASHER 6-16-1.5
31
3GR624310M
TILT STOPPER ASSEMBLY
32
3AS624330M
TILT STOPPER GRIP
33
393624370M
BUSHING TILT STOPPER
34
369624391M
SETTING PLATE TILT STOPPER
35
9101E35612
Болт
36
344671770M
Масленка
37
3H6663130M
REVERSE LOCK ARM
38
9101E35614
Болт
39
369663380M
REVERSE LOCK SPRING RIGHT
40
369663390M
REVERSE LOCK SPRING LEFT
