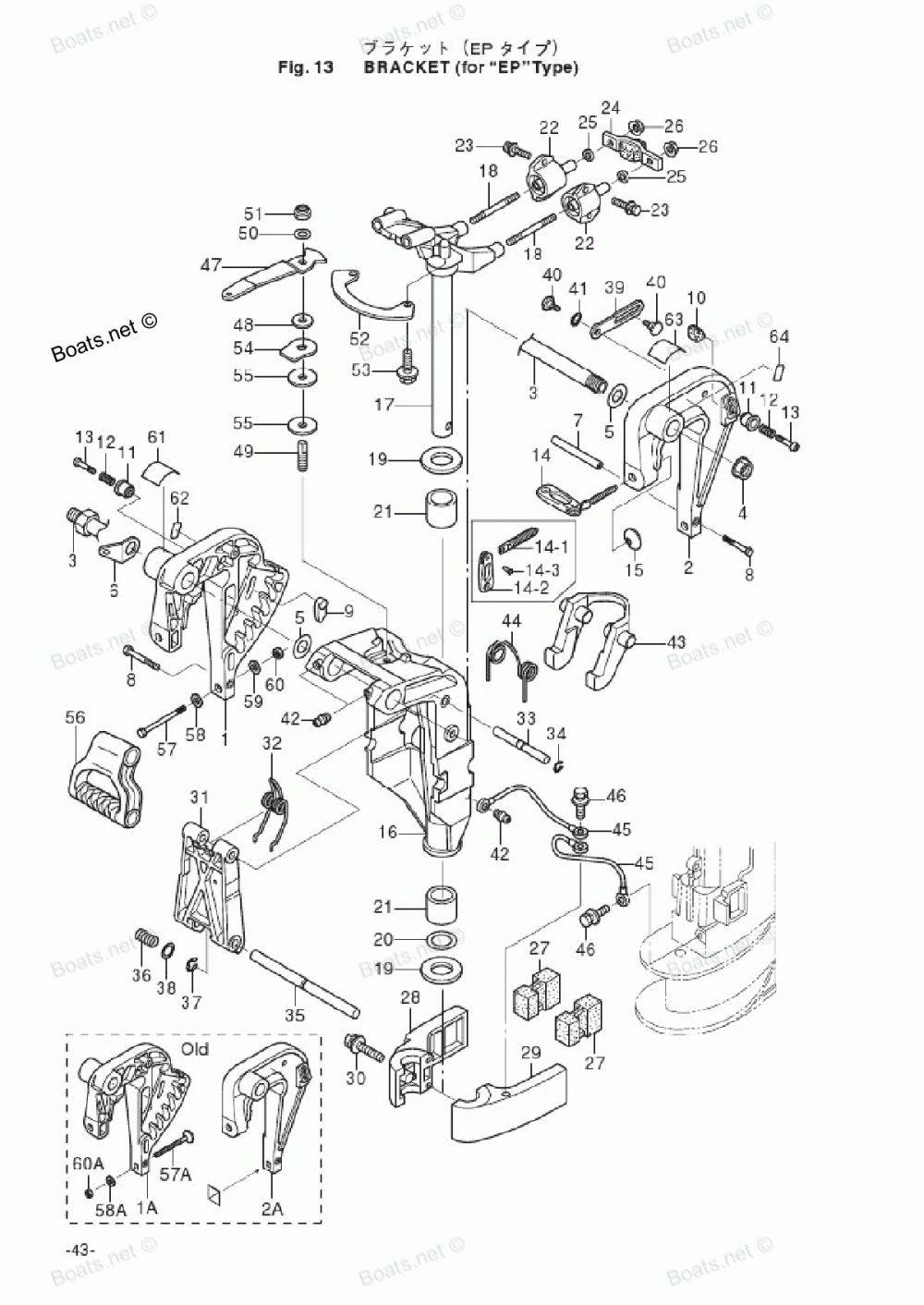

Bracket (for "ep" Type)
Bracket (for "ep" Type)

Bracket (for "ep" Type)

Tohatsu MFS9.8A3

Bracket (for

#

oem код

название

цена

1

CLAMP BRACKET (RIGHT)

CLAMP BRACKET (RIGHT)

1A

CLAMP BRACKET (RIGHT)

CLAMP BRACKET (RIGHT)

2

CLAMP BRACKET (LEFT)

CLAMP BRACKET (LEFT)

2A

CLAMP BRACKET (LEFT)

CLAMP BRACKET (LEFT)

3

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

4

NYLON NUT, 7/8

NYLON NUT, 7/8

5

WASHER, 22 - 36 - 1

WASHER, 22 - 36 - 1

6

Пластина

Пластина

7

DISTANCE PIECE

DISTANCE PIECE

8

Болт

Болт

9

SETTING PLATE, TRIM

SETTING PLATE, TRIM

10

TILT LOCK PIECE

TILT LOCK PIECE

11

Ручка

Ручка

12

TILT LOCK KNOB SPRING

TILT LOCK KNOB SPRING

13

Винт

Винт

14

ASSEMBLY

ASSEMBLY

14-1

CLAMP SCREW

CLAMP SCREW

14-2

HANDLE, CLAMP SCREW

HANDLE, CLAMP SCREW

14-3

RIVET, 3 - 22

RIVET, 3 - 22

15

PAD, CLAMP SCREW

PAD, CLAMP SCREW

16

SWIVEL BRACKET

SWIVEL BRACKET

17

STEERING SHAFT

STEERING SHAFT

18

Шпилька

Шпилька

19

THRUST PLATE, 22 - 44 - 2

THRUST PLATE, 22 - 44 - 2

20

O-RING, 3.5 - 22

O-RING, 3.5 - 22

21

BUSHING, 24 - 30 - 30

BUSHING, 24 - 30 - 30

22

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

23

Болт

Болт

24

DAMPER (UPPER)

DAMPER (UPPER)

25

Шайба

Шайба

26

Гайка

Гайка

27

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

28

MOUNT BRACKET (RIGHT)

MOUNT BRACKET (RIGHT)

29

MOUNT BRACKET (LEFT)

MOUNT BRACKET (LEFT)

30

Болт

Болт

31

TILT STOPPER BODY

TILT STOPPER BODY

32

Пружина

Пружина

33

TILT STOPPER SHAFT (UPPER)

TILT STOPPER SHAFT (UPPER)

34

E-RING, D=6

E-RING, D=6

35

TILT STOPPER SHAFT (LOWER)

TILT STOPPER SHAFT (LOWER)

35

TILT STOPPER SHAFT (LOWER)

TILT STOPPER SHAFT (LOWER)

36

Пружина

Пружина

37

E-RING, D=9

E-RING, D=9

37

E-RING, D=8

E-RING, D=8

38

WASHER, 10.5 - 18 - 1.5

WASHER, 10.5 - 18 - 1.5

39

TILT STOPPER

TILT STOPPER

40

Болт

Болт

41

WAVE WASHER, D=10

WAVE WASHER, D=10

42

Масленка

Масленка

43

REVERSE LOCK

REVERSE LOCK

44

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK

45

GROUND CABLE

GROUND CABLE

46

Болт

Болт

47

HANDLE, CO-PILOT

HANDLE, CO-PILOT

48

WASHER, 8.1 - 20 - 0.8

WASHER, 8.1 - 20 - 0.8

49

BOLT, CO-PILOT

BOLT, CO-PILOT

51

NYLON NUT, 8P - 1.25

NYLON NUT, 8P - 1.25

52

PLATE, CO-PILOT

PLATE, CO-PILOT

53

Болт

Болт

54

WASHER, CO-PILOT

WASHER, CO-PILOT

55

DISC, CO-PILOT

DISC, CO-PILOT

56

CARRYING HANDLE

CARRYING HANDLE

57

Болт

Болт

57A

Болт

Болт

58

WASHER, 8.5 - 34 - 3

WASHER, 8.5 - 34 - 3

58A

WASHER, 7 - 32 - 1.5

WASHER, 7 - 32 - 1.5

60A

NYLON NUT, 1/4

NYLON NUT, 1/4

61

TRIM POSITION DECAL

TRIM POSITION DECAL

62

LOWER TILT LIMIT DECAL

LOWER TILT LIMIT DECAL

63

CO-PILOT DECAL

CO-PILOT DECAL

64

TILT LOCK DECAL

TILT LOCK DECAL
