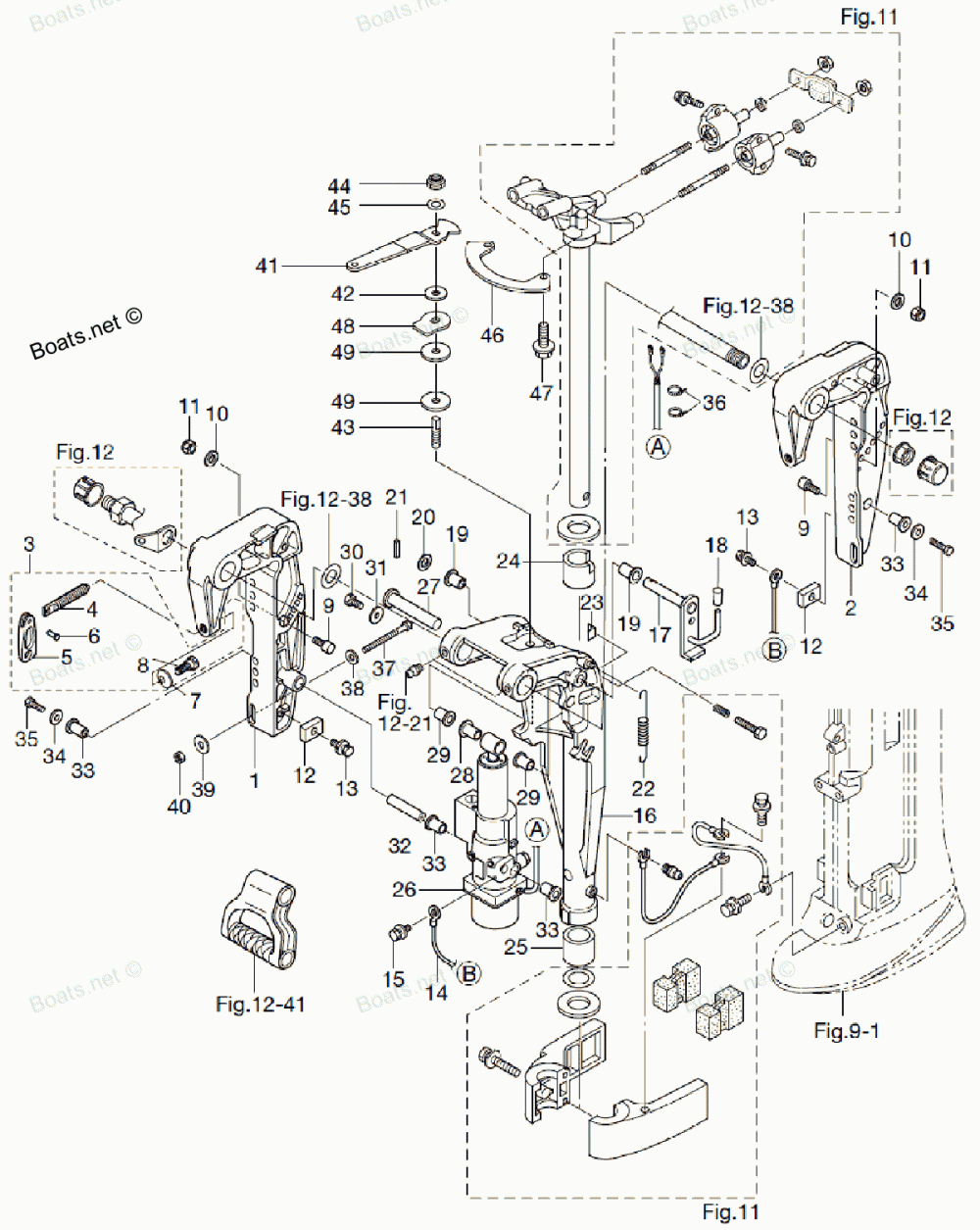

Bracket, Eft & Ept Type
Bracket, Eft & Ept Type

Bracket, Eft & Ept Type

Tohatsu MFS9.8A3

Bracket, Eft & Ept Type

#

oem код

название

цена

1

CLAMP BRACKET, PTT-R

CLAMP BRACKET, PTT-R

2

CLAMP BRACKET PTT-L

CLAMP BRACKET PTT-L

3

CLAMP SCREW KIT

CLAMP SCREW KIT

4

CLAMP SCREW

CLAMP SCREW

5

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

6

RIVET 3-22

RIVET 3-22

7

CLAMP SCREW PAD

CLAMP SCREW PAD

8

SHOULDER BOLT

SHOULDER BOLT

9

TRIM LOCK PIN

TRIM LOCK PIN

10

WASHER 8.1-16-1.5

WASHER 8.1-16-1.5

11

NYLON NUT, 2T, M8=P1.25

NYLON NUT, 2T, M8=P1.25

12

Анод

Анод

13

BOLT 5-16

BOLT 5-16

14

GROUND, EARTH WIRE, LENGTH: 130

GROUND, EARTH WIRE, LENGTH: 130

15

BOLT WITH WASHER

BOLT WITH WASHER

16

SWIVEL BRACKET ASSEMBLY

SWIVEL BRACKET ASSEMBLY

17

TILT STOPPER, PTT

TILT STOPPER, PTT

18

TILT STOPPER GRIP

TILT STOPPER GRIP

19

COLLAR 10.2-12-12

COLLAR 10.2-12-12

20

Шайба

Шайба

21

SPRING PIN 3.5-16

SPRING PIN 3.5-16

22

TILT STOPPER SPRING

TILT STOPPER SPRING

23

Стопор фрикционный

Стопор фрикционный

24

BUSHING 24-30-30

BUSHING 24-30-30

25

BUSHING 24-30-30

BUSHING 24-30-30

26

PT ASSEMBLY

PT ASSEMBLY

27

CYLINDER PIN, UPPER

CYLINDER PIN, UPPER

28

BUSHING 13-16-31

BUSHING 13-16-31

29

BUSHING 13-17-19.5

BUSHING 13-17-19.5

30

Болт

Болт

31

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

32

CYLINDER PIN, LOWER

CYLINDER PIN, LOWER

33

BUSHING 13-16-31

BUSHING 13-16-31

34

WASHER 8.5-28-1

WASHER 8.5-28-1

35

Болт

Болт

36

BAND LEAD WIRE

BAND LEAD WIRE

37

Болт

Болт

38

Шайба

Шайба

39

Шайба

Шайба

40

NYLON NUT 8P1.25

NYLON NUT 8P1.25

41

FRICTION LEVER

FRICTION LEVER

42

WASHER 8.1-20-0.8

WASHER 8.1-20-0.8

43

BOLT CO-PILOT

BOLT CO-PILOT

44

NYLON NUT 8P1.25

NYLON NUT 8P1.25

45

Шайба

Шайба

46

PLATE CO-PILOT

PLATE CO-PILOT

47

Болт

Болт

48

WASHER CO-PILOT

WASHER CO-PILOT

49

DISC CO-PILOT

DISC CO-PILOT
