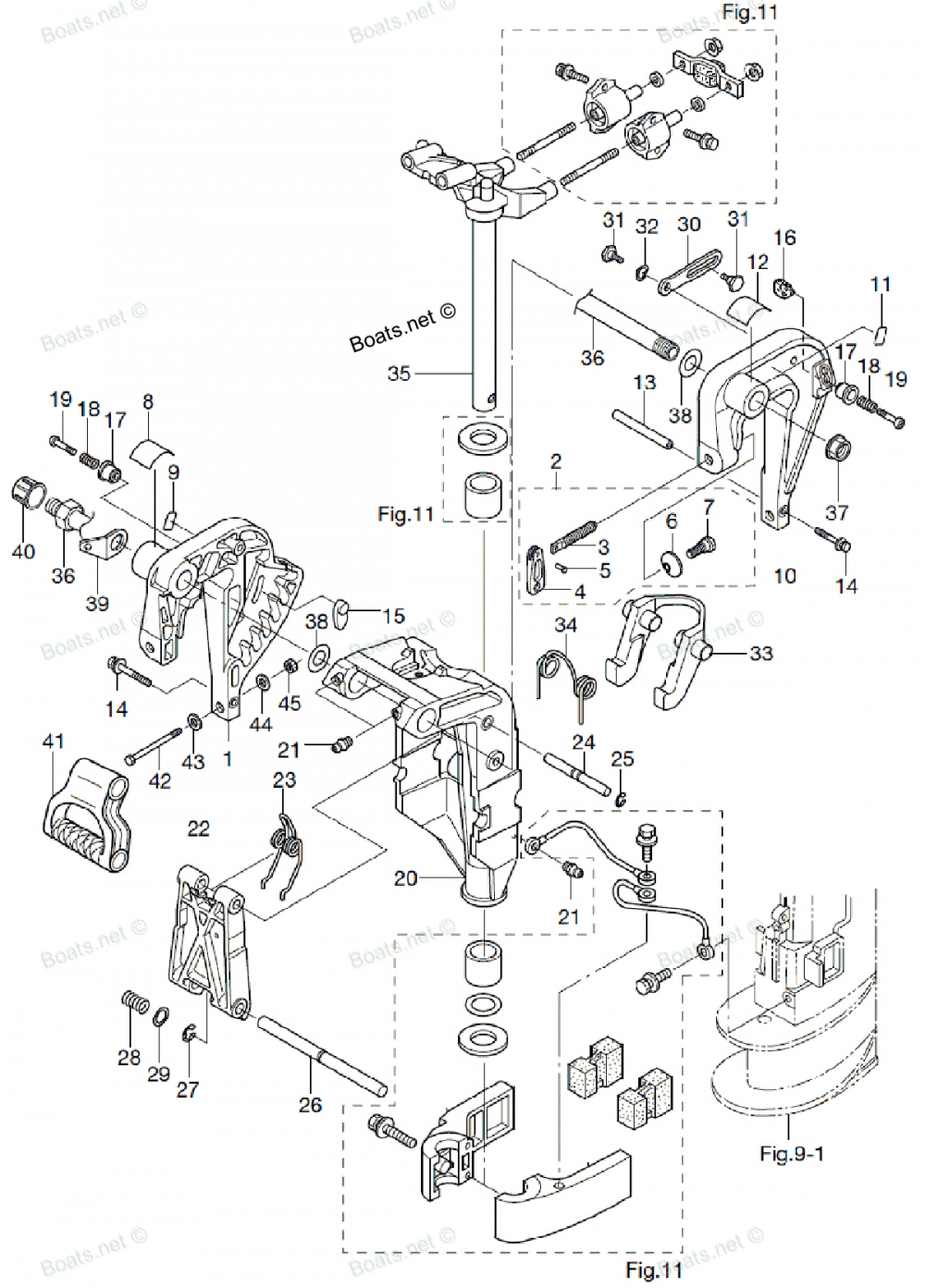

Bracket, Ep Type
Bracket, Ep Type

Bracket, Ep Type

Tohatsu MFS9.8A3

Bracket, Ep Type

#

oem код

название

цена

1

CLAMP BRACKET R

CLAMP BRACKET R

2

CLAMP SCREW KIT

CLAMP SCREW KIT

3

CLAMP SCREW

CLAMP SCREW

4

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

5

RIVET 3-22

RIVET 3-22

6

CLAMP SCREW PAD

CLAMP SCREW PAD

7

SHOULDER BOLT

SHOULDER BOLT

8

TRIM POSITION DECAL

TRIM POSITION DECAL

9

LOWER TILT LIMIT DECAL

LOWER TILT LIMIT DECAL

10

CLAMP BRACKET LEFT

CLAMP BRACKET LEFT

11

TILT LOCK DECAL

TILT LOCK DECAL

12

CO-PILOT DECAL

CO-PILOT DECAL

13

DISTANCE PIECE

DISTANCE PIECE

14

Болт

Болт

15

TRIM SETTING PLATE

TRIM SETTING PLATE

16

TILT LOCK PIECE

TILT LOCK PIECE

17

Ручка

Ручка

18

SPRING TILT LOCK KNOB

SPRING TILT LOCK KNOB

19

Винт

Винт

20

SWIVEL BRACKET

SWIVEL BRACKET

21

Масленка

Масленка

22

TILT STOPPER BODY

TILT STOPPER BODY

23

Пружина

Пружина

24

TILT STOPPER SHAFT, UPPER

TILT STOPPER SHAFT, UPPER

25

E-RING DIAMETER: 6

E-RING DIAMETER: 6

26

TILT STOPPER SHAFT, LOWER

TILT STOPPER SHAFT, LOWER

27

E-RING DIAMETER: 9

E-RING DIAMETER: 9

28

Пружина

Пружина

29

WASHER 10.5-18-1.5

WASHER 10.5-18-1.5

30

TILT STOPPER, LEFT

TILT STOPPER, LEFT

31

Болт

Болт

32

WAVE WASHER, DIAMETER: 10

WAVE WASHER, DIAMETER: 10

33

REVERSE LOCK

REVERSE LOCK

34

REVERSE LOCK SPRING

REVERSE LOCK SPRING

35

STEERING SHAFT ASSEMBLY

STEERING SHAFT ASSEMBLY

36

SWIVEL BRACKET SHAFT ASSEMBLY

SWIVEL BRACKET SHAFT ASSEMBLY

37

NYLON NUT 7/8

NYLON NUT 7/8

38

WASHER 22-36-1

WASHER 22-36-1

39

Пластина

Пластина

40

CAP NUT BRACKET BOLT

CAP NUT BRACKET BOLT

41

CARRYING HANDLE

CARRYING HANDLE

42

Болт

Болт

43

Шайба

Шайба

44

Шайба

Шайба

45

NYLON NUT 8P1.25

NYLON NUT 8P1.25
