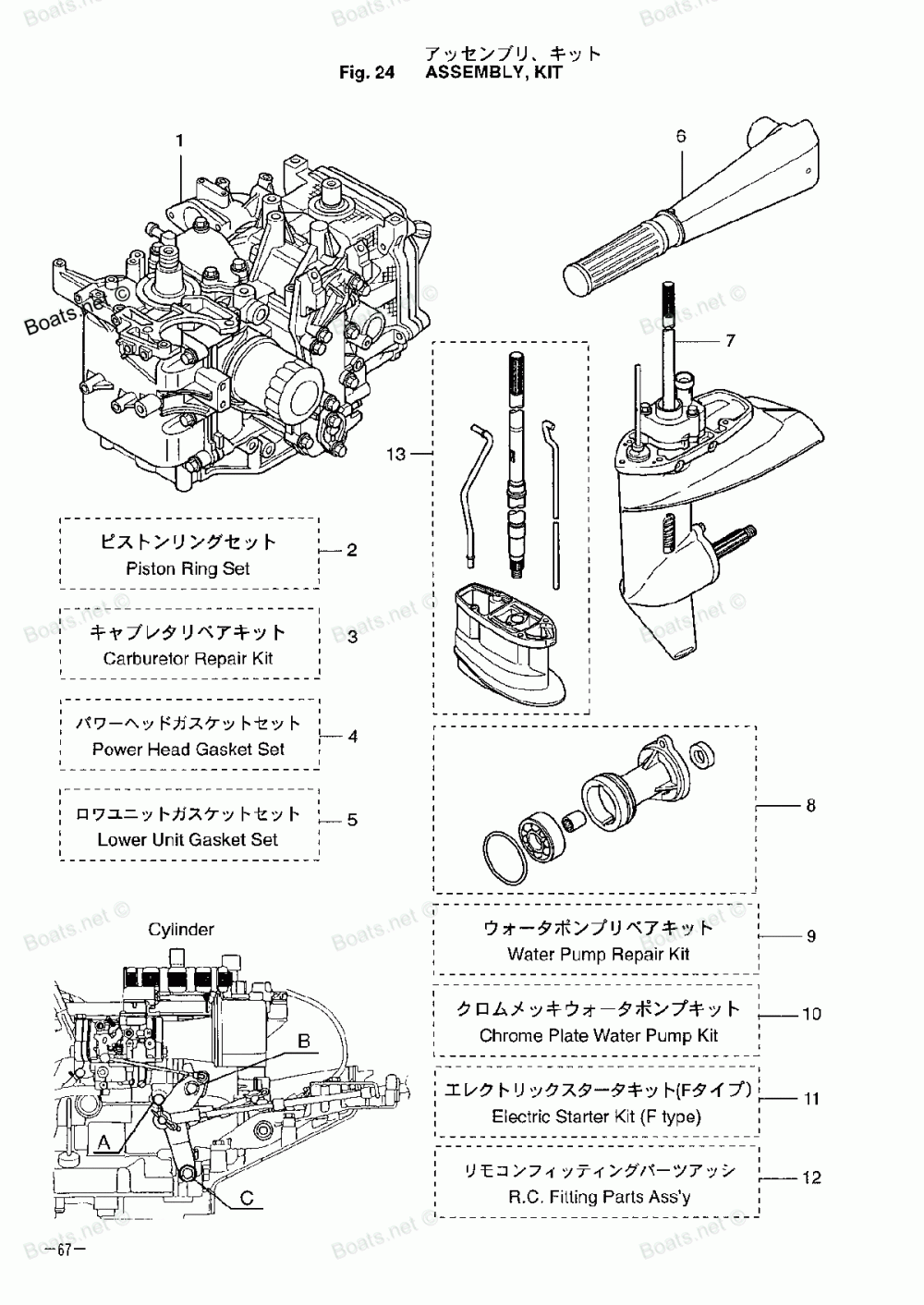

Assembly Kit Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS9.9C (2011)

Assembly Kit

Tohatsu MFS9.9C

oem код

название

цена

3BJB870900

ENGINE SHORT BLOCK KIT

970111103M

SPARK PLUG

3V9074021M

OIL PAN GASKET

3BJ871230M

Кольца поршневые стандарт

PISTON RING TOP

PISTON RING 2ND

PISTON RING OIL

CARBURETOR REPAIR KIT

3V1031160M

Уплотнительное кольцо

Винт

FLOAT VALVE

FLOAT CHAMBER GASKET

FLOAT ARM PIN

Винт

Поплавок

DRAIN SCREW GASKET

DRAIN SCREW GASKET

CARBURETOR COVER GASKET

3BJ022340M

Топливный Фильтр

9225036410

Винт

3BJ871210M

POWER HEAD GASKET SET

345624150M

O-RING, 3.5 - 25.7

3R3074321M

BREATHER CHAMBER COVER GASKET

3BJ010050M

Прокладка головки блока цилиндров

3H8076390M

OIL PUMP O-RING

3R3001210M

OIL SEAL, 32 - 44 - 9

3BJ010240M

CYLINDER HEAD COVER GASKET

3H8076350M

O-RING, 1.5 - 15.5

3BJ001210M

OIL SEAL, 36 - 50 - 7

3R0074220M

O-RING, 3.1 - 24.4

3H8076320M

O-RING, 1.5 - 10.7

3BJ021040M

INTAKE MANIFOLD GASKET

EXHAUST COVER GASKET

O-RING, 1.5 - 8.5

CARBURETOR GASKET

THERMOSTAT CAP GASKET

3H8070250M

OIL SEAL, 18 - 35 - 8

3BJ024190M

SEAL RING, 2.4 - 35

3R3011440M

ANODE CAP GASKET

398873212M

LOWER UNIT GASKET SET

EXHAUST PIPE GASKET

GASKET, 8.2 - 14 - 1

O-RING, 2.4 - 59.6

OIL SEAL, 17 - 30 - 9

332602230M

OIL SEAL, 13.8 - 26 - 9.5

O-RING, 3.5 - 36

O-RING, 2.4 - 5.8

THROTTLE DECAL

Стопор фрикционный

Вал дросселя

ASSEMBLY

Регулировочный Винт

THROTTLE SHAFT DAMPER

3R3Q630110

TILLER HANDLE

9301E30600

Гайка

350630460M

BUSHING, 8.4 - 10 - 11

PLASTIC RIVET, 6.5

Шайба

Винт

Шпилька

THROTTLE SHAFT SUPPORTER

Рукоятка

Винт

ASSEMBLY "S"

ASSEMBLY "L"

ASSEMBLY

Болт

WATER PUMP REPAIR KIT

334650210M

WATER PUMP IMPELLER

350650220M

WATER PUMP IMPELLER KEY

350650111M

PUMP CASE LINER

350650250M

WATER PUMP GUIDE PLATE

362652310M

WATER PUMP KIT (CHROME PLATED)

350650111M

PUMP CASE LINER (CHROME PLATED)

350650250M

PUMP GUIDE PLATE (CHROME PLATED)

Болт

FUSE CABLE

STARTER MOTOR BAND

Протектор

Регулятор напряжения

FUSE CABLE

STARTER MOTOR DAMPER

TERMINAL CAP

CLAMP, 6.5 - 47.5P

FUSE HOLDER BRACKET

Болт

STARTER CABLE

BAND MOUNT

LEAD WIRE BAND, 135

STARTER SOLENOID

Протектор

ELECTRIC STARTER KIT ("F" TYPE)

LEAD WIRE BAND, 203

MAIN SWITCH

Болт

TERMINAL CAP

Стартер электрический

9101035625

Болт

361760800M

NEUTRAL SWITCH

3BJ760430M

STARTER SOLENOID BRACKET

TERMINAL CAP

Болт

BATTERY CABLE

REMOTE CONTROL FITTING PARTS

3B7837151M

CABLE JOINT

3BJ839140M

THROTTLE LEVER STOPPER

3R3674831M

REMOTE CONTROL STAY COVER

3C8637330M

ROD SNAP, 5 - 3

3R3661280M

SHIFT ARM (REMOTE CONTROL)

3AA837190M

WASHER, 8.5 - 18 - 1.6

3V5Q620010

STEERING BRACKET

3BJ674850M

BOLT, 5 - 35 (WITH WASHER)

3R3637090M

THROTTLE ROD (REMOTE CONTROL)

REMOTE CONTROL STAY

SNAP PIN, D=8

Болт

SHIFT LEVER ROD

ROD SNAP, ∅3B

Болт

SHIFT LEVER (REMOTE CONTROL)

9401E31000

Шайба

9301030500

Гайка

3R3839100M

THROTTLE LEVER (REMOTE CONTROL)

3R3838200M

CABLE CLIP

9101E30625

BOLT (OR 910113-0625)

3BJ661380M

SPACER, 5 - 9.5 - 5

9101E30645

BOLT (OR 910113-0645)

Болт

WASHER, 6 - 16 - 1.5

SPLIT PIN, 2 - 12

COLLAR, 6.2 - 8 - 30.8

3R3837320M

уплотнетель кабеля

353760790M

COLLAR, 6.2 - 9 - 9.3

3BJ611110M

Шпилька

3V1652040M

WATER PIPE AUXILLARY MOUNT

3P0662330M

WASHER, 8.1 - 16 - 1.5

Винт

Гайка

WATER PIPE "UL"

DRIVE SHAFT BUSHING

DRIVE SHAFT "UL"

BUSHING STOPPER

EXTENSION HOUSING KIT "UL"

3BJ660140M

CAM ROD "UL"

9101E35612

Болт

3BJQ611100

EXTENSION HOUSING "UL"

9514070312

SPRING PIN, 3 - 12

3Z0652030M

Фиксирующая Пластина
