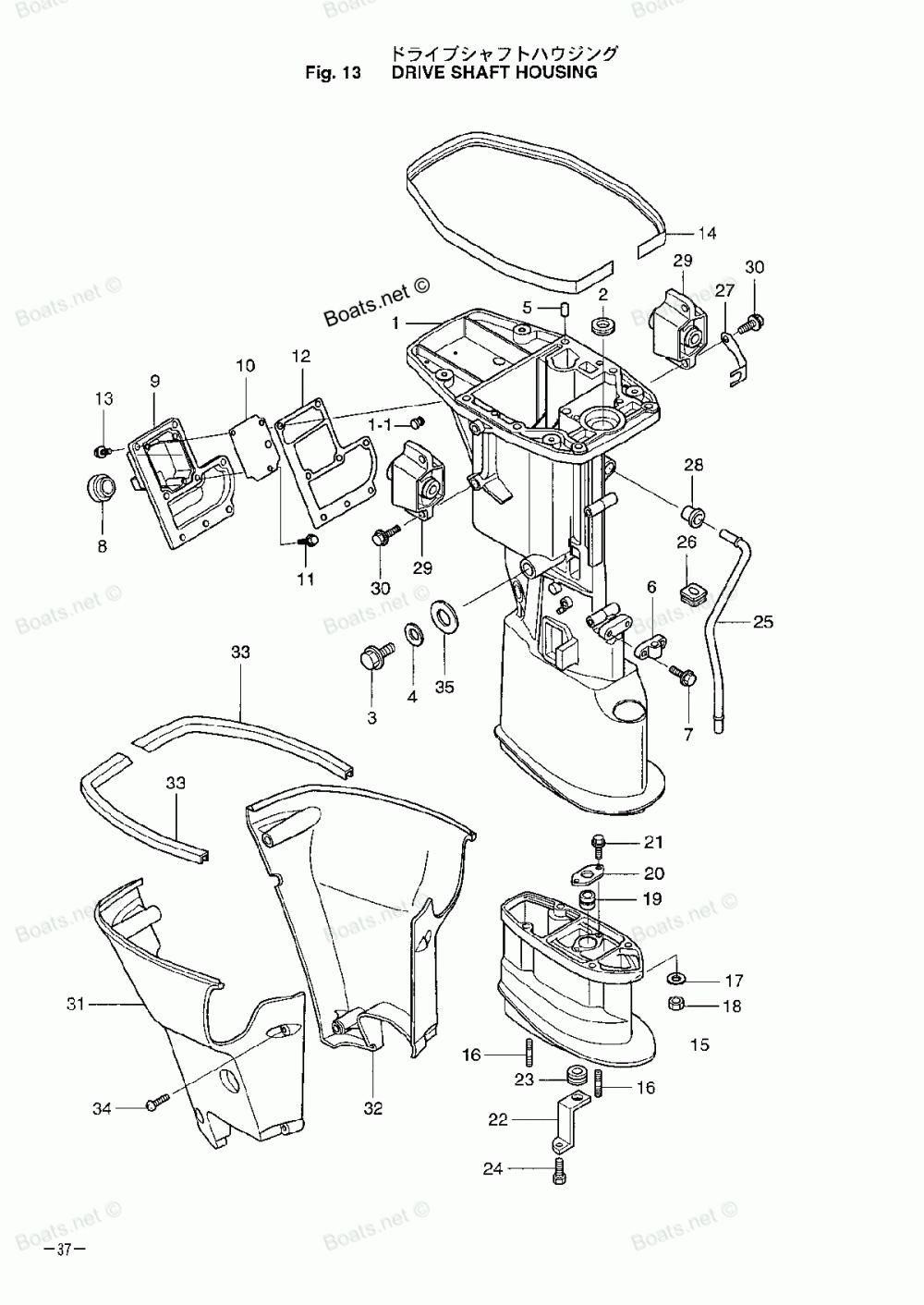

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS9.9C
Tohatsu
#oem кодцена
1
3BKQ610200
DRIVE SHAFT HOUSING "S"
1
3BKQ610300
DRIVE SHAFT HOUSING "L"
1-1
3H6072570M
EXHAUST PLUG
2
350012151M
OIL SEAL, 12.8 - 25 - 7
3
3R3074051M
DRAIN BOLT
4
3R3074060M
WASHER, 14.5 - 24 - 1
5
345011110M
DOWEL, 6 - 12
6
3V6660370M
CAM ROD HOLDER
7
9101E35620
Болт
8
3BJ612070M
IDLE EXHAUST PORT GROMMET
9
3BJQ612080
IDLE EXHAUST PORT COVER
10
3BJ621140M
IDLE EXHAUST PORT PLATE
11
9101E30512
Болт
12
3BJ612200M
IDLE EXHAUST PORT GASKET
13
9101145616
Болт
14
3R3671160M
ENGINE BASEMENT SEAL
15
3BJQ611100
EXTENSION HOUSING "UL"
16
3BJ611110M
Шпилька
17
3P0662330M
WASHER, 8.1 - 16 - 1.5
18
9301E30800
Гайка
19
3BJ600030M
DRIVE SHAFT BUSHING
20
3V1643320M
BUSHING STOPPER
21
9101E35612
Болт
22
3Z0652030M
Фиксирующая Пластина
23
3V1652040M
WATER PIPE AUXILLARY MOUNT
24
9215E30510
Винт
25
3H8651000M
WATER PIPE "S"
25
3H8651100M
WATER PIPE "L"
25
3BJ651200M
WATER PIPE "UL"
26
3R3652040M
WATER PIPE AUXILLARY MOUNT
27
3R3652050M
WATER PIPE LOCK PLATE
28
3R3652061M
WATER PIPE SEAL (UPPER)
29
3BJ613010M
RUBBER MOUNT (UPPER)
29
3BA613010M
RUBBER MOUNT (UPPER)
30
9101E35830
Болт
31
3R3Q670031
DRIVE SHAFT HOUSING COVER (RIGHT)
32
3R3Q670041
DRIVE SHAFT HOUSING COVER (LEFT)
33
3R3612130M
APRON SEAL
34
3R0612170M
TAPPING SCREW, 6 - 60
35
3R3670170M
OIL DRAIN GROMMET
