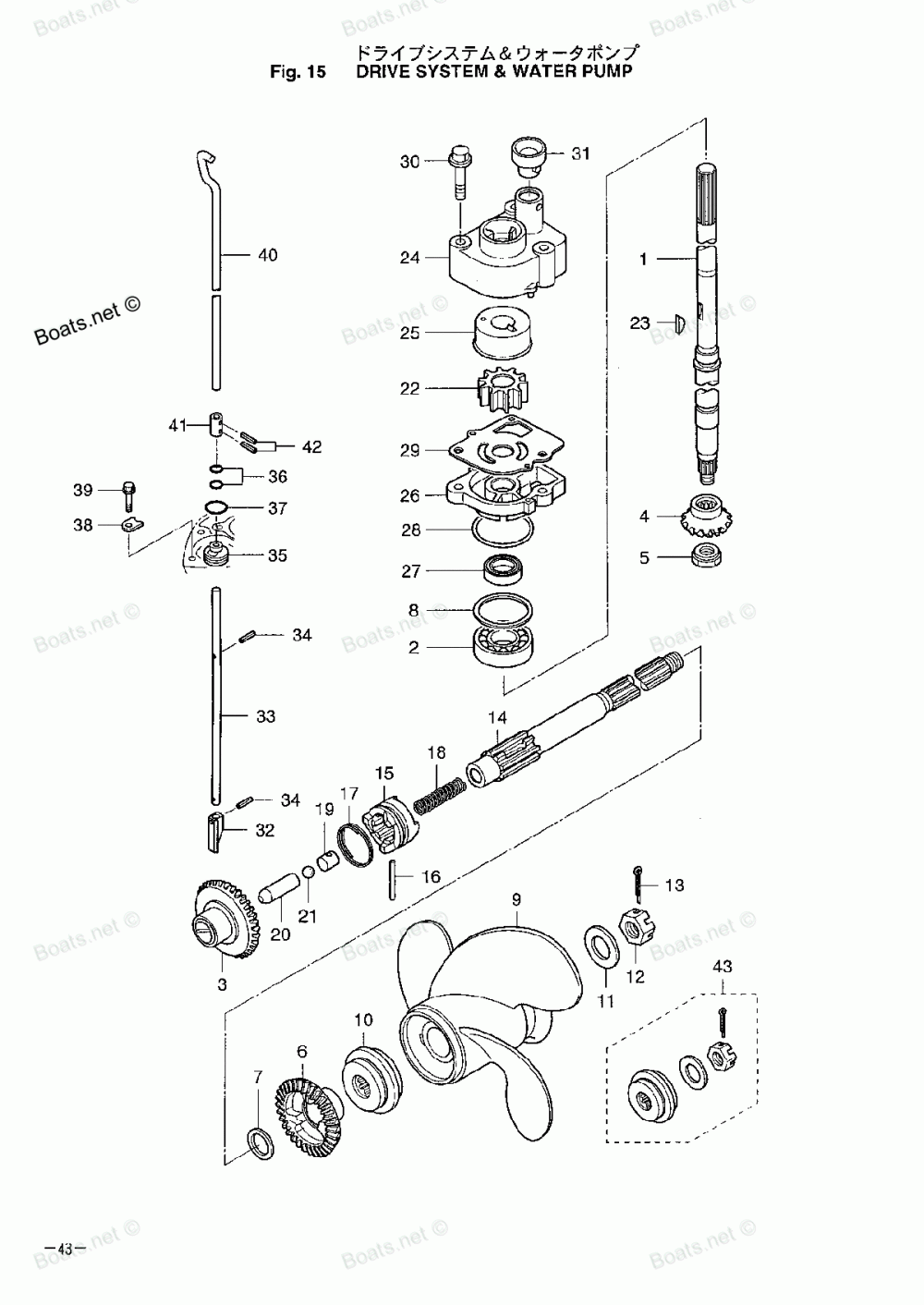

Drive System & Water Pump

Tohatsu MFS9.9C
Tohatsu
#oem кодцена
1
3BK643010M
Вертикальный вал "S"
1
3BK643020M
Вертикальный вал "L"
1
3BK643030M
DRIVE SHAFT "UL"
2
3BJ602130M
BALL BEARING, 7302A
3
3BJ640100M
BEVEL GEAR "A"
4
3BJ640200M
BEVEL GEAR "B"
5
346640271M
BEVEL GEAR "B" NUT
6
3BJ640300M
BEVEL GEAR "C"
7
350640320M
WASHER, 17 - 22 - 1.5
8
346640820M
SHIM, 35 - 41.9 - 0.15
8
346640830M
SHIM, 35 - 41.9 - 0.3
8
346640840M
SHIM, 35 - 41.9 - 0.5
8
346640810M
SHIM, 35 - 41.9 - 0.1
9
3BAB645210
PROPELLER (10), 3 X 9.25 X 10
9
3BAB645240
PROPELLER (11.5), 3 X 9.25 X 11.5
9
3Z0B645143
PROPELLER (7), 4 X 10 X 7
9
362B641070
PROPELLER (6), 3 X 9.2 X 6.1
9
362B641050
PROPELLER (7), 3 X 9.2 X 6.9
9
3BAB645160
PROPELLER (8), 3 X 9.25 X 8
9
3BAB645180
PROPELLER (9), 3 X 9.25 X 9
10
362642310M
PROPELLER TRUST HOLDER
11
346641245M
WASHER, 12.5 - 22 - 2.5
12
346641215M
PROPELLER NUT
13
9515030322
SPLIT PIN, 3 - 22
14
362642112M
Вал гребного винта
15
3BJ642150M
Муфта сцепления
16
350642180M
Палец
17
350642190M
CLUTCH PIN SNAP
18
332642210M
Пружинка
19
350642221M
CLUTCH SPRING RETAINER
20
3BJ642230M
CLUTCH PUSH ROD
21
9650020803
STEEL BALL, 3/8
22
334650210M
WATER PUMP IMPELLER
23
350650220M
WATER PUMP IMPELLER KEY
24
350650161M
PUMP CASE
25
350650111M
PUMP CASE LINER
26
350650170M
PUMP CASE (LOWER)
27
332602230M
OIL SEAL, 13.8 - 26 - 9.5
28
336624150M
O-RING, 3.5 - 36
29
350650250M
WATER PUMP GUIDE PLATE
30
9101E35652
Болт
31
350650140M
WATER PIPE SEAL (LOWER)
32
3AC660111M
Кулачковый толкатель
33
3H8660122M
CAM ROD "S"
33
3H8660132M
CAM ROD "L"
33
3BJ660140M
CAM ROD "UL"
34
9514070312
SPRING PIN, 3 - 12
35
398660310M
CAM ROD BUSHING
36
332660210M
O-RING, 2.4 - 5.8
38
332660330M
CAM ROD BUSHING STOPPER
39
9101E35512
Болт
40
3H8662152M
SHIFT ROD
41
3C8662410M
SHIFT ROD JOINT
42
9514030312
SPRING PIN, 3 - 12
43
3V9873260M
PROPELLER HARD WEAR KIT
