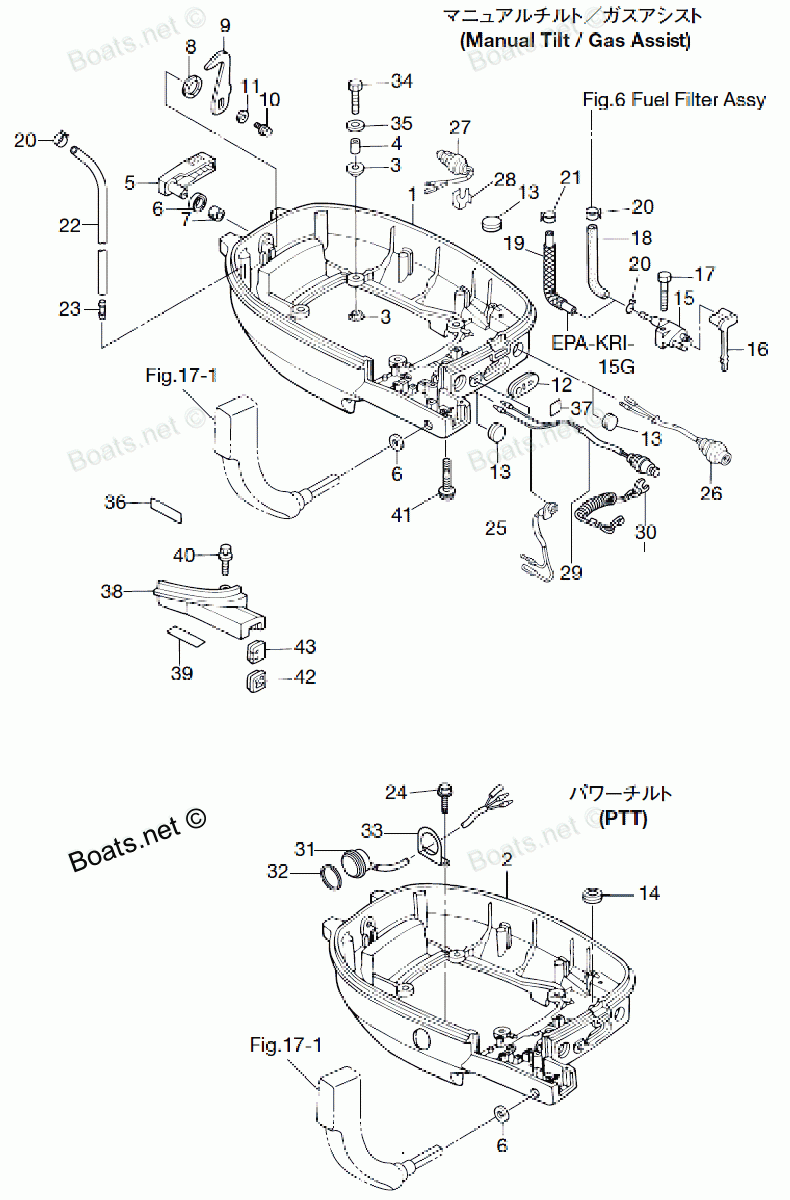

Нижняя часть колпака

Tohatsu MFS25B
Tohatsu
#oem кодцена
1
3ACQ671000
BOTTOM COWL
2
3ADQ671000
BOTTOM COWL
3
346671130M
MOUNT MIRROR COVER LOWER
4
346671141M
SPACER 6.2-9-15.7
5
3R3Q671410
HOOK LEVER
6
338671470M
SEAL RING HOOK LEVER
7
350671050M
HOOK LEVER BUSHING 14-16.5-17.7
8
9414031400
Упругая Шайба
9
3R3671420M
COVER HOOK
10
9101E35612
Болт
11
3c8663080M
WASHER 6-16-1.5
12
353671620M
GROMMET BATTERY CORD
13
345671170M
GROMMET 17-2.7
14
338671630M
GROMMET 18-2.5
15
394702600M
FUEL CONNECTOR (ENGINE MALE)
16
3H6702620M
FUEL CONNECTOR PROTECTOR
17
9101E35630
Болт
18
98AB50300M
Шланг
19
3AC021650M
FUEL HOSE WITH PROTECTOR
20
338022150M
CLIP FUEL PIPE
21
3AB351430M
Зажим
22
98AR50600M
Шланг
23
3BA011380M
NIPPLE WATER
24
9101E35616
Болт
25
3R3710400M
PILOT LAMP ASSEMBLY
26
3AA760260M
MAIN SWITCH ASSEMBLY
27
361760800M
NEUTRAL SWITCH
28
398760830M
NEUTRAL SWITCH ACTUATOR
29
398068300M
STOP SWITCH ASSEMBLY WITH CURL
30
353068210M
STOP SWITCH LANYARD ASSEMBLY WITH CURL
31
3AC726150M
PTT SWITCH ASSEMBLY
32
3F3726161M
GASKET PTT SWITCH
33
3F3726171M
PTT SWITCH ASSEMBLY BRACKET
34
9101E30630
Болт
35
346671150M
WASHER 6.5-21-1
36
3H6675720M
STORAGE DECAL
37
3H6761990M
OIL PRESSURE DECAL
38
3R0Q761180
SHIFT LEVER BRACKET COVER
39
3V9675781M
SHIFT DECAL (FNR)
40
9101E35635
Болт
41
9101E35650
Болт
42
3R0837320M
GROMMET CONTROL CABLE
43
3R0636210M
GROMMET THROTTLE CABLE
