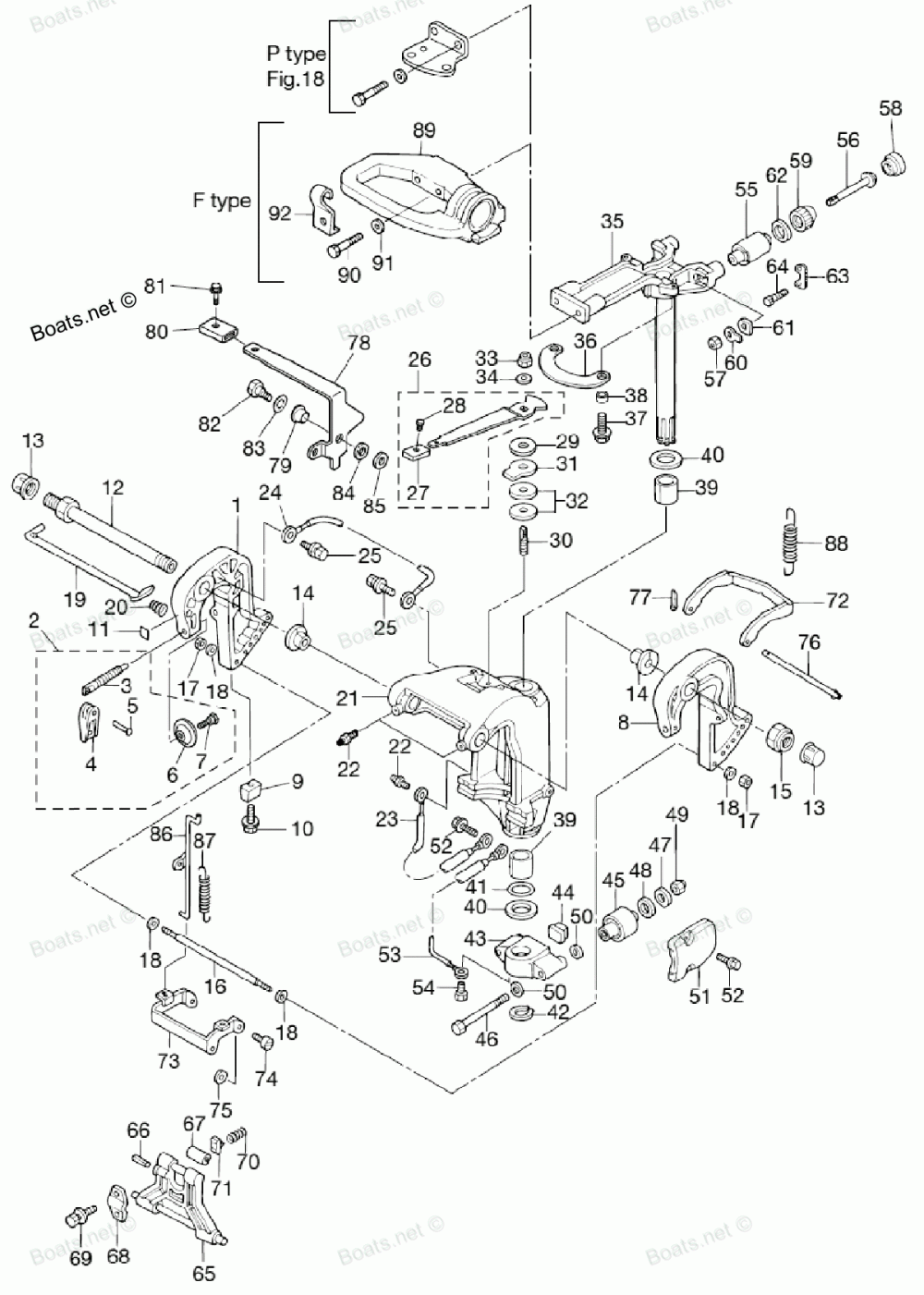

Bracket (manual Tilt)
Bracket (manual Tilt)

Bracket (manual Tilt)

Tohatsu MFS25B

Bracket (manual Tilt)

#

oem код

название

цена

1

CLAMP BRACKET R

CLAMP BRACKET R

2

CLAMP SCREW KIT

CLAMP SCREW KIT

3

CLAMP SCREW

CLAMP SCREW

4

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

5

RIVET 3-22

RIVET 3-22

6

CLAMP SCREW PAD

CLAMP SCREW PAD

7

SHOULDER BOLT

SHOULDER BOLT

8

CLAMP BRACKET L

CLAMP BRACKET L

9

Анод

Анод

10

Болт

Болт

11

CO-PILOT DECAL

CO-PILOT DECAL

12

SWIVEL BRACKET SHAFT ASSEMBLY

SWIVEL BRACKET SHAFT ASSEMBLY

13

CAP NUT BRACKET BOLT

CAP NUT BRACKET BOLT

14

BUSHING 26-32

BUSHING 26-32

15

NYLON NUT 7/8

NYLON NUT 7/8

16

DISTANCE PIECE

DISTANCE PIECE

17

Гайка

Гайка

18

Шайба

Шайба

19

Штанга

Штанга

20

THRUST ROD SPRING

THRUST ROD SPRING

21

SWIVEL BRACKET

SWIVEL BRACKET

22

Масленка

Масленка

23

GROUND EARTH WIRE

GROUND EARTH WIRE

24

GROUND EARTH WIRE

GROUND EARTH WIRE

25

Болт

Болт

26

FRICTION LEVER ASSEMBLY

FRICTION LEVER ASSEMBLY

27

GRIP CO-PILOT HANDLE

GRIP CO-PILOT HANDLE

28

STOPPER REVERSE LOCK LEVER GRIP

STOPPER REVERSE LOCK LEVER GRIP

29

WASHER 8.1-20-0.8

WASHER 8.1-20-0.8

30

BOLT CO-PILOT

BOLT CO-PILOT

31

WASHER CO-PILOT

WASHER CO-PILOT

32

DISC CO-PILOT

DISC CO-PILOT

33

NYLON NUT 8P1.25

NYLON NUT 8P1.25

34

Шайба

Шайба

35

STEERING SHAFT ASSEMBLY

STEERING SHAFT ASSEMBLY

36

PLATE CO-PILOT

PLATE CO-PILOT

37

Болт

Болт

38

Манжета

Манжета

39

BUSHING BRACKET SHAFT

BUSHING BRACKET SHAFT

40

THRUST PLATE UPPER

THRUST PLATE UPPER

41

O-RING BRACKET SHAFT

O-RING BRACKET SHAFT

42

C-RING

C-RING

43

MOUNT BRACKET

MOUNT BRACKET

44

DAMPER LOWER

DAMPER LOWER

45

RUBBER MOUNT LOWER

RUBBER MOUNT LOWER

46

BOLT MOUNT RUBBER LOWER

BOLT MOUNT RUBBER LOWER

47

WASHER 13-34-3

WASHER 13-34-3

48

Резиновый демпфер

Резиновый демпфер

49

NYLON NUT 12P-1.25

NYLON NUT 12P-1.25

50

Шайба

Шайба

51

MOUNT HOLDING PLATE LOWER

MOUNT HOLDING PLATE LOWER

52

Болт

Болт

53

GROUND EARTH WIRE

GROUND EARTH WIRE

54

Болт

Болт

55

RUBBER MOUNT UPPER

RUBBER MOUNT UPPER

56

BOLT MOUNT RUBBER

BOLT MOUNT RUBBER

57

NUT 10P1.5

NUT 10P1.5

58

DAMPER UPPER

DAMPER UPPER

59

DAMPER UPPER

DAMPER UPPER

60

LOCK PLATE MOUNT RUBBER

LOCK PLATE MOUNT RUBBER

61

WASHER MOUNT RUBBER

WASHER MOUNT RUBBER

62

LOCK PLATE UPPER

LOCK PLATE UPPER

63

RUBBER MOUNT RETAINER

RUBBER MOUNT RETAINER

64

Болт

Болт

65

TILT STOPPER

TILT STOPPER

66

Пружинный Штифт

Пружинный Штифт

67

BUSHING 10.2-12-29.5

BUSHING 10.2-12-29.5

68

SETTING PLATE TILT STOPPER

SETTING PLATE TILT STOPPER

69

Болт

Болт

70

FRICTION SPRING

FRICTION SPRING

71

SETTING PIECE TILT STOPPER

SETTING PIECE TILT STOPPER

72

REVERSE LOCK

REVERSE LOCK

73

REVERSE LOCK ARM

REVERSE LOCK ARM

74

PIVOT BOLT

PIVOT BOLT

75

WASHER 6-16-1.5

WASHER 6-16-1.5

76

REVERSE LOCK ROD

REVERSE LOCK ROD

77

SPLIT PIN 2-12

SPLIT PIN 2-12

78

REVERSE LOCK LEVER

REVERSE LOCK LEVER

79

Втулка

Втулка

80

REVERSE LOCK LEVER GRIP

REVERSE LOCK LEVER GRIP

81

STOPPER REVERSE LOCK LEVER GRIP

STOPPER REVERSE LOCK LEVER GRIP

82

SHOULDER BOLT

SHOULDER BOLT

83

WAVE

WAVE

84

WASHER 8.5-18-1.6

WASHER 8.5-18-1.6

85

WASHER 6-16-1.5

WASHER 6-16-1.5

86

REVERSE LOCK LINK

REVERSE LOCK LINK

87

REVERSE LOCK LEVER SPRING

REVERSE LOCK LEVER SPRING

88

REVERSE LOCK SPRING L

REVERSE LOCK SPRING L

88

REVERSE LOCK SPRING S

REVERSE LOCK SPRING S

89

STEERING BRACKET

STEERING BRACKET

90

Болт

Болт

91

Шайба

Шайба

92

CLAMP THROTTLE CABLE

CLAMP THROTTLE CABLE
