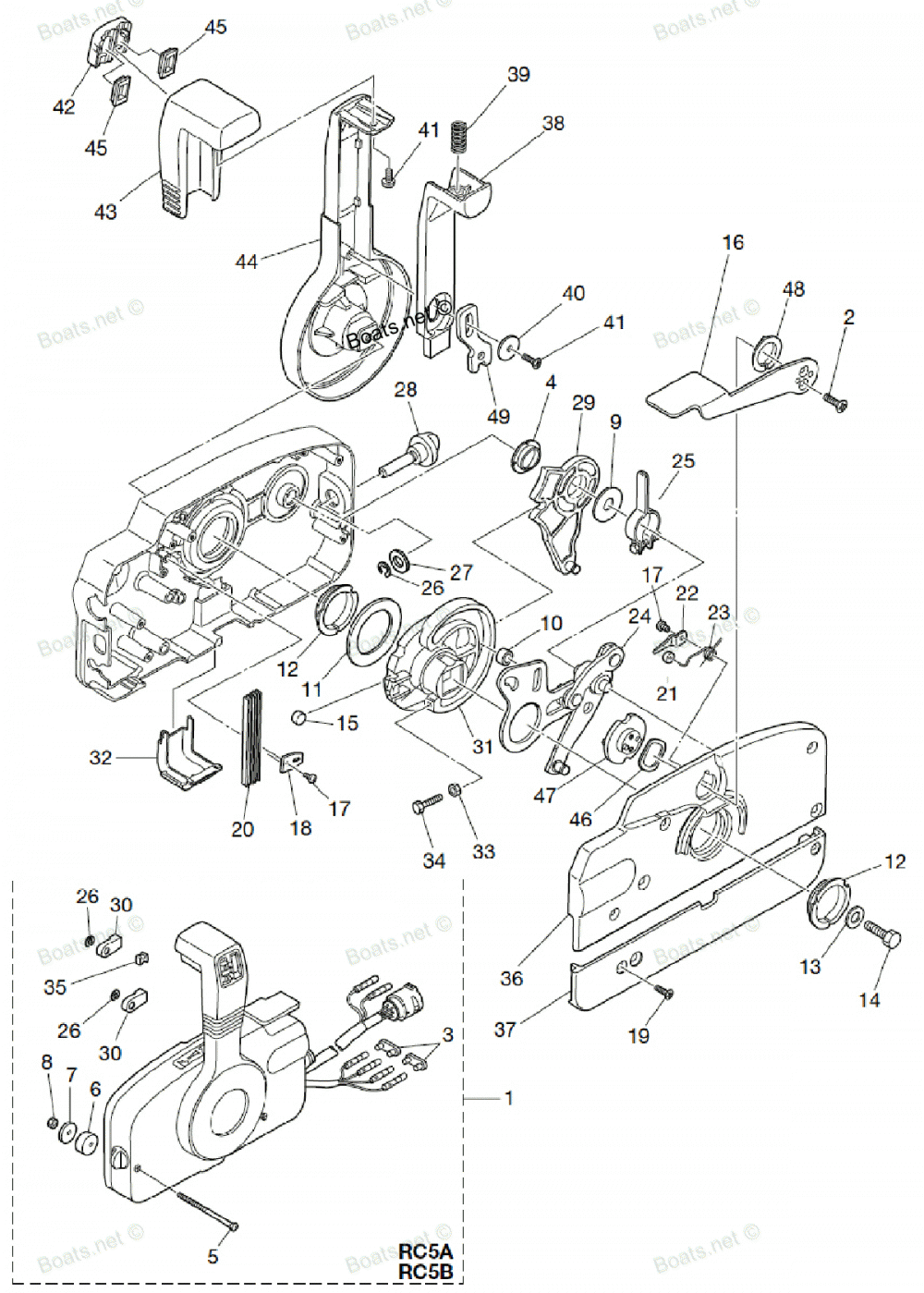

Component Parts Of Remote Control Box Assembly

Tohatsu MFS25B
Tohatsu
#oem кодцена
1
353760203M
MAIN SWITCH ASSEMBLY
1
3ACQ843300
REMOTE CONTROL HEAD ASSEMBLY
1
3B7Q843403
REMOTE CONTROL HEAD ASSEMBLY
2
3F3762170M
MAIN SWITCH KEY
2
3F3762180M
MAIN SWITCH KEY
2
9216030512
Винт
2
3F3762190M
MAIN SWITCH KEY
3
3A3760861M
NEUTRAL SWITCH
3
353760370M
CABLE TERMINAL PLUG
4
3A3844320M
BUSHING B
4
9215030315
Винт
5
3A3843750M
Винт
5
3A3725600M
PTT SWITCH ASSEMBLY
6
3A3843740M
Проставка
6
9215030206
Винт
7
353843710M
WASHER REMOTE CONTROL BOX
7
3A3725910M
PTT SWITCH COVER
8
9301030600
Гайка
8
3C8761710M
OVERHEAT BUZZER
9
3A3843830M
Шайба
9
3A3068300M
STOP SWITCH ASSEMBLY WITH CURL
10
3A3844210M
Ролик
10
353068210M
STOP SWITCH LANYARD ASSEMBLY WITH CURL
11
3A3844220M
THRUST PLATE
11
3A3761151M
CORD ASSEMBLY
12
3A3844310M
BUSHING A
12
353725460M
ASSIST CORD RED
13
9401030800
Шайба
13
3N5843310M
DECAL LEVER
14
3A3844420M
Болт
14
3N5843330M
DECAL TOHATSU
15
353843880M
DETENT ROLLER
15
3N5843360M
SHIFT POSITION DECAL
16
3N5844650M
SHIFT POSITION SIDE DECAL
16
3B7Q843120
FREE THROTTLE LEVER
17
9215030406
Винт
17
3A3843980M
BAND LEAD WIRE
18
3A3844230M
DETENT RETAINER
19
9216030518
Винт
20
3A3843070M
Пружина
21
3A3844240M
FREE THROTTLE ROLLER
22
3A3844260M
ROLLER RETAINER
23
3A3844250M
FREE THROTTLE SPRING
24
3A3843651M
THROTTLE ARM
25
3A3844280M
THROTTLE FRICTION ARM
26
9453030600
Е-Кольцо
27
353843940M
Шайба
28
3A3844270M
ADJUST SCREW THROTTLE FRICTION
29
3A3843810M
SHIFT GEAR ASSEMBLY
30
3A3833142M
CABLE TERMINAL
31
3A3843642M
DRIVE GEAR
32
3A3844290M
WIRE COVER
33
9301030500
Гайка
34
9101030525
Болт
35
3A3843760M
Уплотнитель резиновый
36
3B7Q844410
REAR HOUSING
37
3B7Q843660
REAR PANEL
38
3A3844010M
NEUTRAL LOCK ARM
39
3A3844030M
NEUTRAL LOCK SPRING
40
3A3844070M
WASHER LOCK ARM
41
9215030510
Винт
42
3A3844510M
TILT SWITCH COVER
43
3A3844040M
Рукоятка
44
3B7Q843430
Рычаг управления
45
3A3844520M
TILT SWITCH PLUG
46
3A3843680M
Упругая Шайба
47
3A3843910M
FREE THROTTLE DRUM
48
3A3844350M
Втулка
49
3A3844060M
PLATE LOCK ARM
