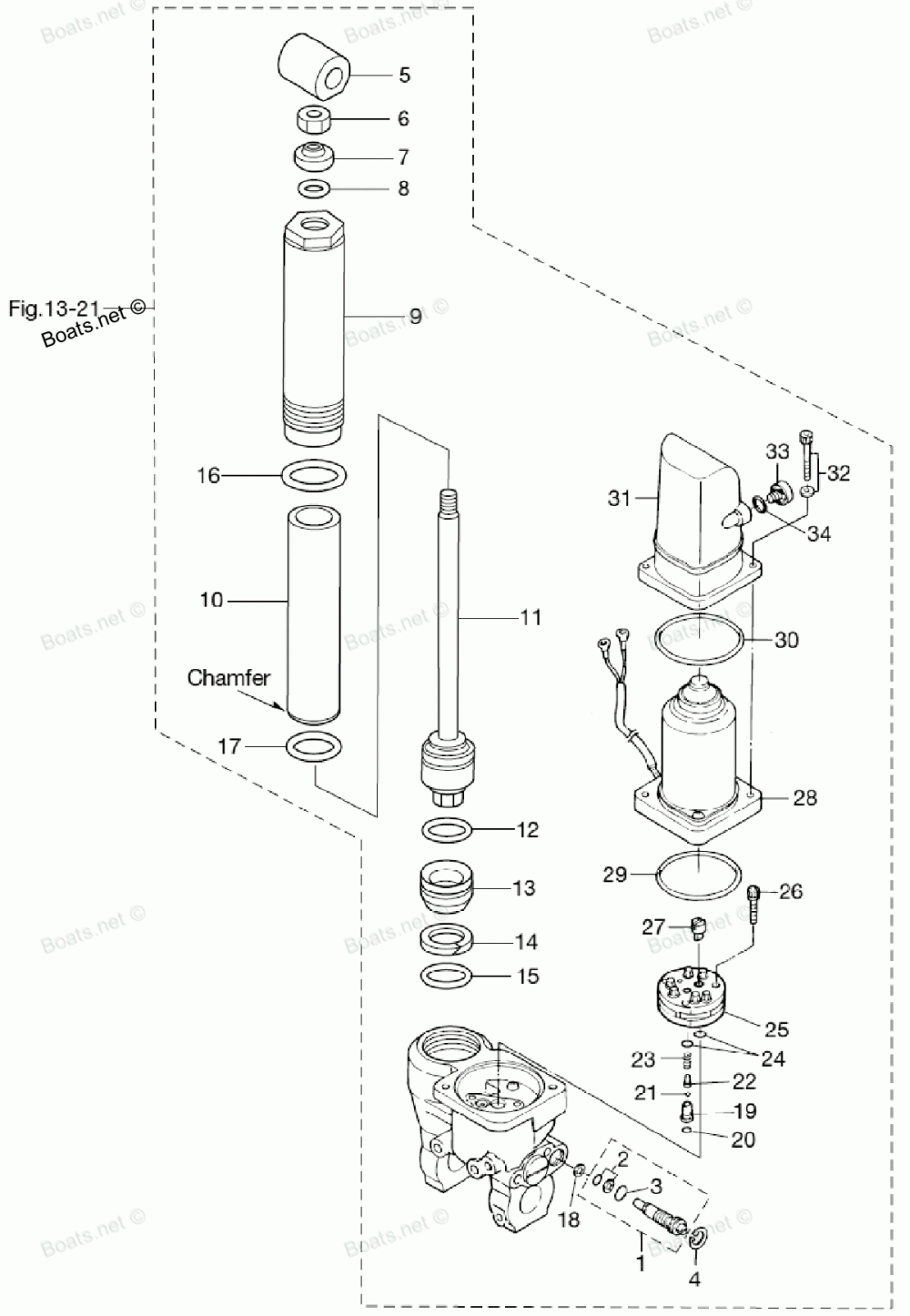

Power Tilt Assembly

Tohatsu MFS25B
Tohatsu
#oem кодцена
1
3AC771750M
MANUAL VALVE ASSEMBLY
2
3R0774090M
SEAL SET
3
3R0771770M
O-RING 2.4-9.8
4
3Z5771710M
C-RING
5
3AD773670M
Соединитель
6
3AC773740M
Гайка
7
3AC773820M
Пыльник
8
3AC773840M
O-RING 2.4-12.3
9
3AC773610M
Цилиндр
10
3AC773630M
INNER TUBE
11
3AC773650M
PISTON ROD ASSEMBLY
12
3AC773750M
O-RING 2-28.5
13
3AC773770M
FREE PISTON
14
3AC773760M
BACK-UP RING
15
3AC773980M
O-RING 2.4-27.7
16
3AC773920M
O-RING 2-43.5
17
3AC773830M
O-RING 2-34.5
18
3AC771730M
SEAL WASHER
19
3AC774530M
VALVE SEAT
20
3R0774510M
O-RING 1.5-3.5
21
3R0774570M
Шарик
22
3AC774540M
Пружины
23
3R0774550M
Пружина
24
3B7774330M
Уплотнительное кольцо
25
3R0774300M
PUMP
26
3B7774311M
Болт
27
3E0771630M
COUPLING PUMP
28
3AC771800M
MOTOR ASSEMBLY
29
3R0771670M
O-RING 2-62.5
30
3C8771820M
O-RING 2.4-66.6
31
3R0771650M
RESERVE TANK
32
3R0771590M
Болт
33
3R0771680M
Крышка
34
3R0771690M
O-RING 1.9-9.8
