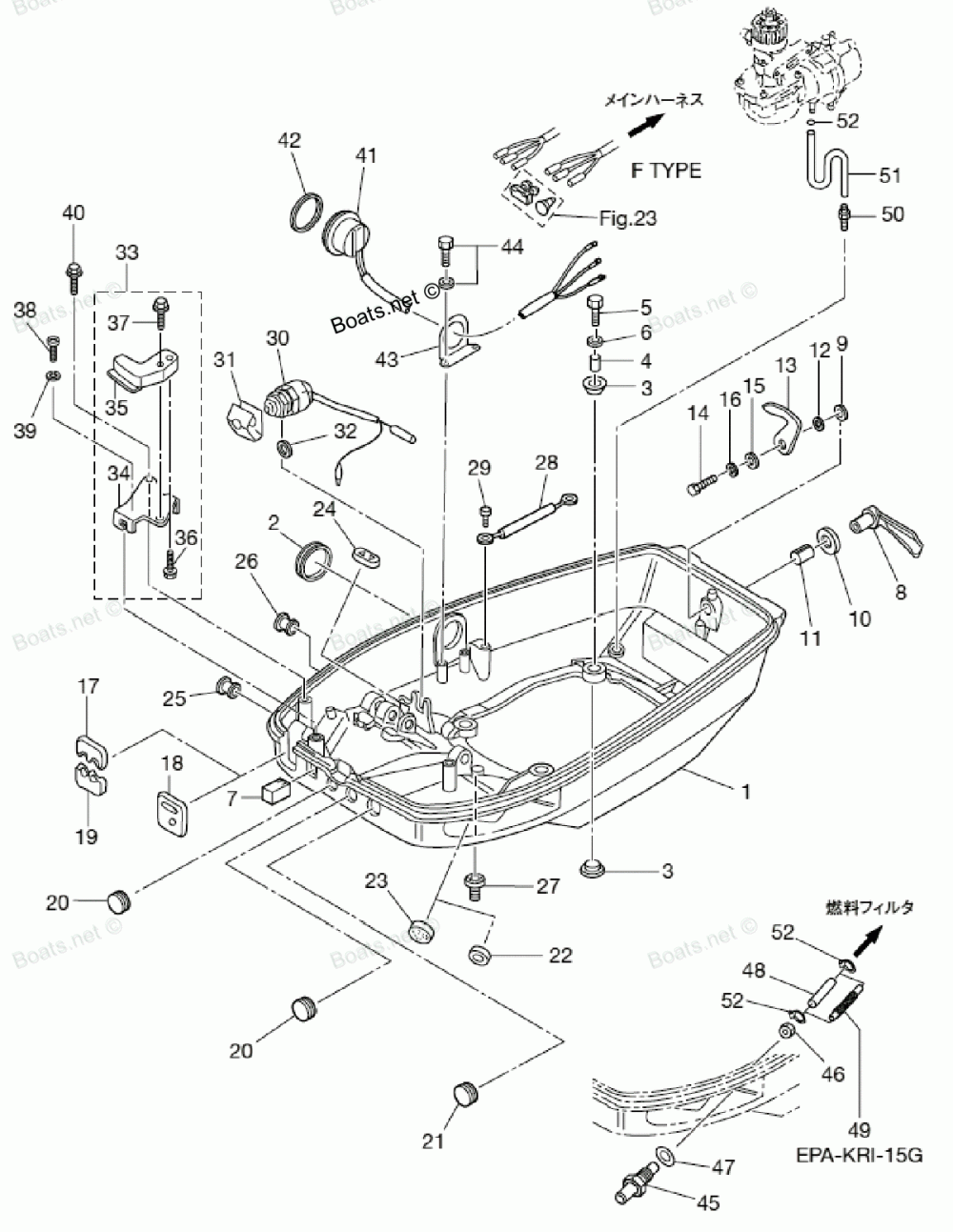

Bottom Cowl, Motor Cover Lower

Tohatsu MD40B2
Tohatsu
#oem кодцена
1
3C8Q671000
BOTTOM COWL
2
3F3726180M
GROMMET POWER TRIM AND TILT SWITCH
3
346671130M
MOUNT MOTOR COVER LOWER
4
346671141M
SPACER 6.2-9-15.7
5
9101E30630
Болт
6
346671150M
WASHER 6.5-21-1
7
3T5671500M
PLUG CHOKE KNOB
8
3C8Q671410
HOOK LEVER
9
3C8671460M
Шайба
10
338671470M
SEAL RING HOOK LEVER
11
369671050M
HOOK LEVER BUSHING
12
9414031400
WAVE WASHER, DIAMETER: 14
13
3C8671421M
COVER HOOK
14
9101F40612
Болт
15
3C8663080M
WAHER 6-16-1.5
16
9413030600
Пружинная шайба
17
3C8837320M
GROMMET REMOTE CONTROL CABLE
18
3T5671620M
GROMMET BATTERY CORD
19
3C8761161M
GROMMET CORD
20
345671170M
GROMMET 17-2.7
21
345760920M
Уплотнитель резиновый
22
338671630M
GROMMET 18-2.5
23
345671170M
GROMMET 17-2.7
24
3C8636210M
GROMMET THROTTLE WIRE
24
3C8636240M
GROMMET THROTTLE HOLE
25
3B2671870M
GROMMET THROTTLE SHAFT
26
3B7010460M
Заглушка
27
345662260M
GROMMET 17-3
28
3N4761421M
GROND CABLE LENGTH: 270
29
9101036612
Болт
30
398760800M
NEUTRAL SWITCH
31
398760830M
NEUTRAL SWITCH ACTUATOR
32
3B7637310M
WASHER 12.5-24-1
33
3C8838200M
CABLE CLIP BRACKET ASSEMBLY
34
3Z5837380M
CLUTCH CABLE CLIP BRACKET
35
3C8Q761180
Зажим
36
9101035612
Болт
37
9101035625
Болт
38
3C8838210M
SCREW 4-20 P0.5
39
9413030400
Пружинная шайба
40
9101035616
BOLT 5-16
41
3GF726150M
PTT SWITCH B, ASSEMBLY
42
3F3726161M
GASKET PTT SWITCH
43
3GF726170M
PTT SWITCH ASSEMBLY BRACKET
44
9101036614
Болт
45
3B2702601M
FUEL CONNECTOR MALE
46
332702610M
NUT M10P1.25
47
336701120M
GASKET 10.2-16-0.5
48
98AB50260M
Шланг
49
3GF021650M
FUEL HOSE WITH PROTECTOR
50
3BA011380M
NIPPLE WATER
51
98AB50250M
Шланг
52
338022150M
CLIP FUEL PIPE 10
