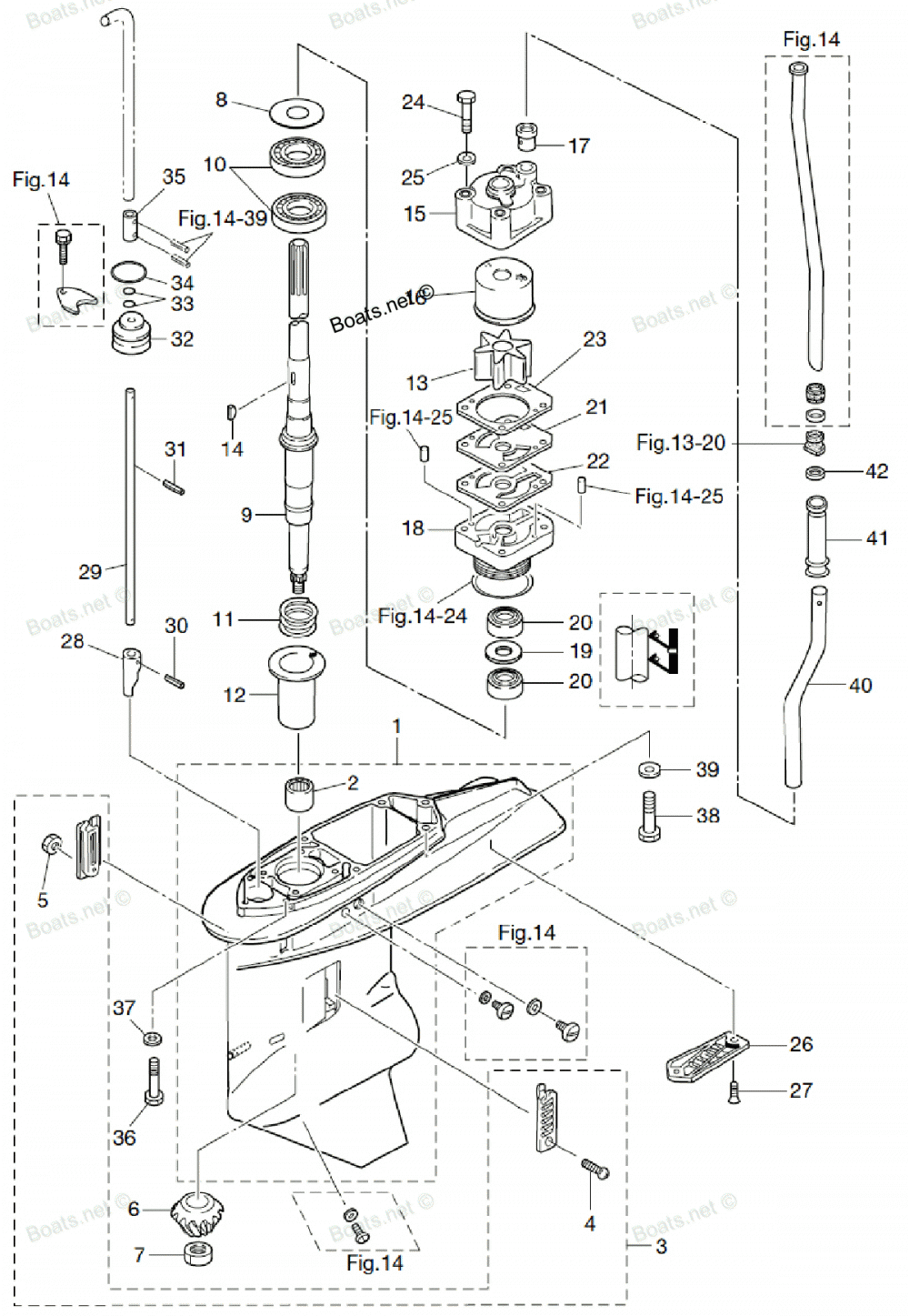

Gear Case, Drive Shaft, Mwd50, Big Foot

Tohatsu MD40B2
Tohatsu
#oem кодцена
1
3S7Q600901
GEAR CASE ASSEMBLY, WITH SUBWATER PIPE
2
353602110M
ROLLER BEARING PROPELLER SHAFT
3
3B7602050M
WATER STRAINER SET
4
9215030438
Винт
5
9304030400
NYLON NUT 4P0.7
6
3F3640200M
BEVEL GEAR B
7
353640270M
NUT BEVEL GEAR B
8
353640810M
SHIM 44-50.5-0.1
8
353640820M
SHIM 44-50.5-0.15
8
353640830M
SHIM 44-50.5-0.3
9
3S7643020M
DRIVE SHAFT L
9
3S7643030M
DRIVE SHAFT UL
10
3C8602130M
BALL BEARING 6205R
11
353643270M
DRIVE SHAFT SPRING
12
3A3643280M
DRIVE SHAFT SPRING GUIDE
13
3B7650212M
WATER PUMP IMPELLER
14
3B7650220M
KEY PUMP IMPELLER
15
3B7650160M
PUMP CASE SUB-ASSEMBLY, UPPER
16
3B7652380M
PUMP CASE LINER, CHROME PLATED
17
3B7650140M
WATER PIPE SEAL, LOWER
18
3F3650171M
PUMP CASE, LOWER
19
3F3640840M
SHIM 36.9-30-0.5
20
3F3602230M
OIL SEAL 22-37-8
21
3F3652391M
WATER PUMP GUIDE PLATE, CHROME PLATED
22
3B7650290M
GUIDE PLATE GASKET
23
3B7650180M
PUMP CASE GASKET
24
9161E30880
Болт
25
9401030800
Шайба
26
3F3602040M
SUB-WATER INLET STAINER
27
9215030608
Винт
28
3C8660110M
Кулачковый толкатель
29
3S7660140M
CAM ROD, UL
29
3S7660130M
CAM ROD L
30
9514033514
SPRING PIN 3.5-14
31
9514033510
SPRING PIN 3.5-10
32
3B7660311M
CAM ROD BUSHING
33
345660210M
O-RING 1.9-6.8
34
3B7660230M
O-RING 3.2-27.7
35
3S7662410M
SHIFT ROD JOINT
36
3T1600011M
BOLT 8-35
37
9402E30800
Шайба
38
3B7600014M
BOLT 10-40
39
9402E31000
Шайба
40
3S7602520M
EXTENSION PIPE
41
3S7602510M
JOINT HOSE
42
345652050M
COLLAR 18-20-4.5
