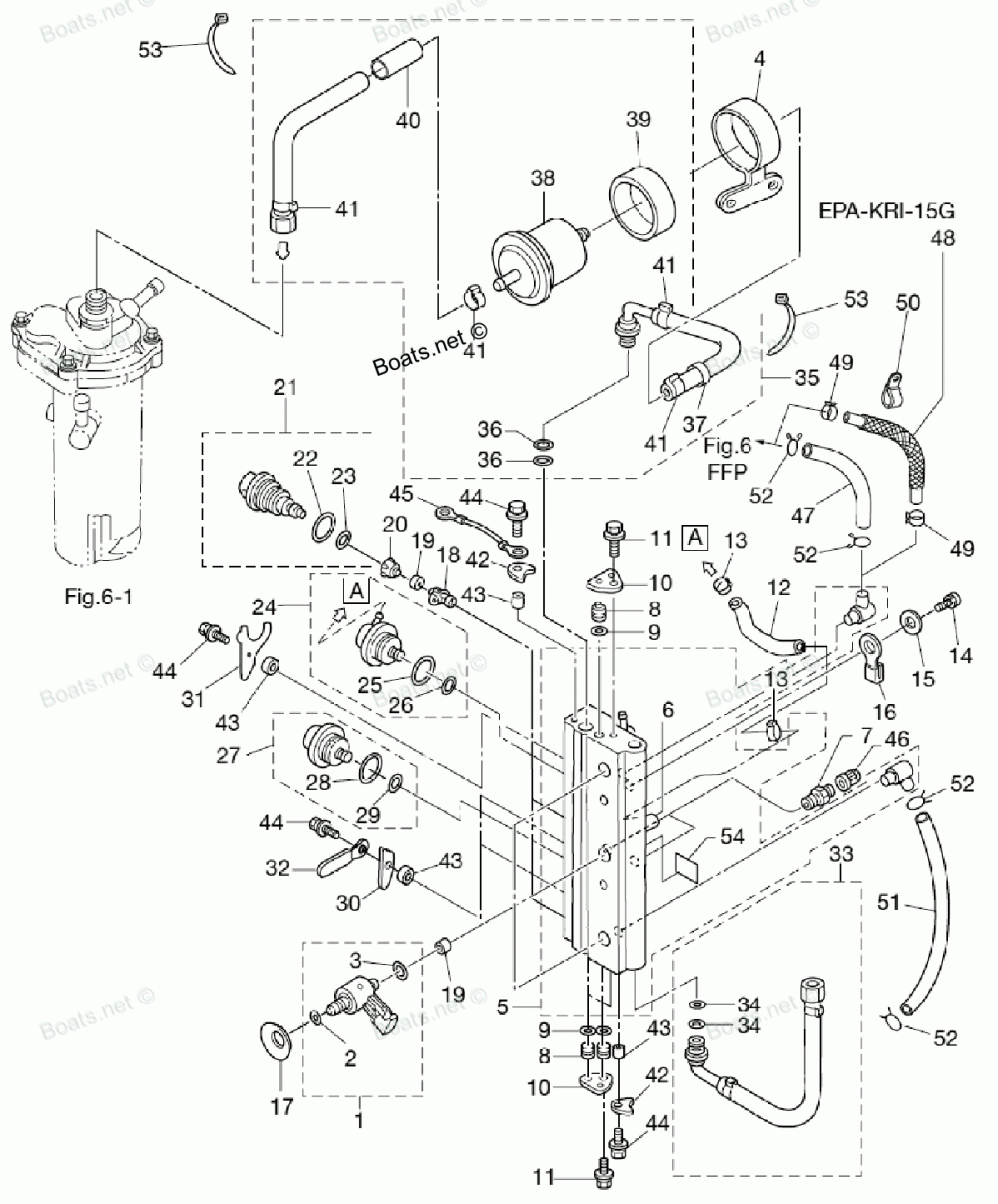

Air Rail

Tohatsu MD50B2
Tohatsu
#oem кодцена
1
3GF103100M
AIR INJECTOR COMPLETE
2
3T5103170M
O-RING 5-52
3
3Y9103111M
O-RING 2.4-9.5
4
3Z5101440M
FUEL FILTER BAND
5
3T5100801M
AIR RAIL ASSEMBLY
6
3T5101660M
L-NIPPLE
7
3T5100980M
VALVE ASSEMBLY, PRESSURE CHECK
8
3T5101670M
PLUG 10.5
9
3T5101641M
O-RING 6.8-1.9
10
3T5101650M
PLUG STOPPER
11
9101036612
Болт
12
98AY45105M
Шланг
13
3T5100910M
CLAMP 29/64
14
9101030865
Болт
15
9401030800
Шайба
16
3T5069721M
CLAMP 8.5-70P
17
3Y9103120M
DISC SPRING
18
3T5103140M
FUEL INJECTOR INSERT
19
3T5103160M
SEAL COMPRESSION
20
3T5103150M
FUEL INJECTOR ADAPTER
21
3T5103000M
FUEL INJECTOR ASSEMBLY
22
3T5103040M
O-RING 2.8-20.2
23
3T5103030M
O-RING 3.5-735
24
3T5101480M
FUEL REGULATOR ASSEMBLY
25
3T5100950M
O-RING 2.5-20
26
3T5100940M
O-RING 5-2.5
27
3GF100900M
AIR REGULATOR ASSEMBLY
28
3T5100950M
O-RING 2.5-20
29
3T5100940M
O-RING 5-2.5
30
3T5103020M
HOLDING PLATE
31
3Y9103020M
HOLDING PLATE
32
309069720M
CLAMP 6.5-47.5P
33
3T5100880M
AIR HOSE ASSEMBLY
34
3T5101620M
O-RING 9.8-1.9
35
3T5100892M
FUEL HOSE ASSEMBLY
36
3T5101620M
O-RING 9.8-1.9
37
3Z4061570M
Протектор
38
3T5B101430
HIGH PRESSURE FUEL FILTER
39
3T5101450M
FUEL FILTER RUBBER MOUNT
40
3U1061570M
PROTECTOR 18-150
41
3T5100860M
CLAMP 21/32
42
3T5101690M
HOLDING PLATE
43
3T5101530M
COLLAR 6.7-12.7-3
44
9101036616
Болт
45
3A3623961M
GROUND, EARTH WIRE, LENGTH: 110
46
3T5100990M
CAP VALVE
47
98AB50530M
Шланг
48
98AB50600M
FUEL HOSE WITH PROTECTOR
49
3AB351430M
Зажим
50
345069150M
CLAMP 6.5-14
51
98AB50280M
Шланг
52
338022150M
CLIP FUEL PIPE 10
53
3T5843980M
BAND LEAD WIRE 104
54
3T5721960M
AIR RAIL DECAL
