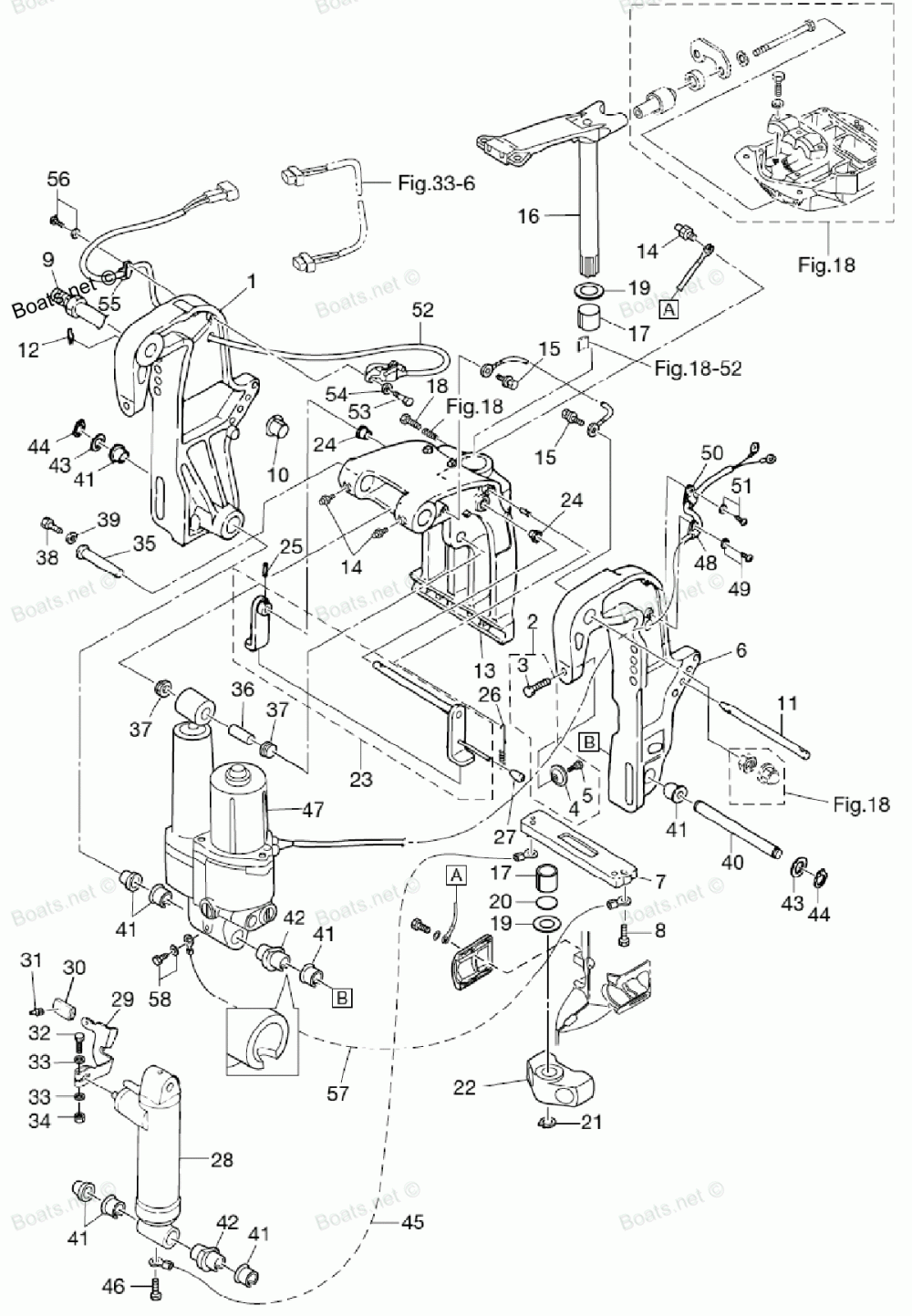

Bracket 2, Power Trim & Tilt

Tohatsu MD50B2
Tohatsu
#oem кодцена
1
3Z5Q772110
CLAMP BRACKET, PTT-R
2
3C8772160M
CLAMP SCREW KIT
3
3C8772160M
CLAMP SCREW PTT
4
332621011M
CLAMP SCREW PAD
5
3C8621070M
SHOULDER BOLT
6
3Z5Q772120
CLAMP BRACKET, PTT-L
7
3C7602182M
ANODE STERN BRACKET
8
9101036630
Болт
9
3AD621910M
SWIVEL BRACKET SHAFT ASSEMBLY
10
3C8772130M
BUSHING BRACKET BOLT
11
3R0771180M
PTT THRUST ROD
12
9516031000
SNAP PIN
13
3Z5Q772150
SWIVEL BRACKET ASSEMBLY, PTT
14
344671770M
Масленка
15
9101E35612
Болт
16
3Z5Q620100
STEERING SHAFT ASSEMBLY
17
353624170M
BUSHING BRACKET SHAFT
18
9101E30830
Болт
19
353624231M
THRUST PLATE, UPPER
20
353624150M
O-RING BRACKET SHAFT
21
9451032800
C-RING DIAMETER:28
22
3Z5Q614110
MOUNT BRACKET
23
3Z5624701M
TILT STOPPER ASSEMBLY
23
3R0Q624700
TILT STOPPER ASSEMBLY
24
353632070M
COLLAR 10.2-12-12
25
9514033516
SPRING PIN 3.5-16
26
3R0624730M
TILT STOPPER SPRING
27
369624331M
TILT STOPPER GRIP
28
3R0Q776010
GAS SHOCK ABSORBER
29
3R0663110M
REVERSE LOCK LEVER
30
3AL663330M
REVERSE LOCK LEVER GRIP
31
346663340M
STOPPER REVERSE LOCK LEVER GRIP
32
9101F40635
Болт
33
9401E30600
Шайба
33
9401030600
Шайба
34
9301E30600
Гайка
35
3R0770711M
CYLINDER PIN, UPPER
36
3R0770750M
BUSHING 13-16-40
37
3R0770760M
BUSHING 13-17-19.5
38
9101030612
Болт
38
9101E30612
Болт
39
345051221M
WASHER 6.5-23-1.5
40
3R0771011M
CYLINDER PIN, LOWER
41
3C8770761M
BUSHING 18-24-22
42
3Z5771030M
BUSHING 18-24-60
43
3R0771120M
WASHER 18.2-34-1
44
9451031800
C-RING
45
3C8623961M
GROUND, EARTH WIRE
46
9101035608
Болт
47
3Z5771501M
PTT ASSEMBLY
48
336069730M
CLAMP 6-9.5L
49
9215035612
Винт
50
345069150M
CLAMP 6.5-14
51
9215035612
Винт
52
3Z4725740M
TRIM SENSOR LENGTH: 1700
53
9101030620
Болт
54
3C8663080M
WASHER 6-16-1.5
55
336069730M
CLAMP 6-9.5L
56
9215035612
Винт
57
398623961M
GROUND, EARTH WIRE, LENGTH: 130
58
9101E35612
Болт
