Bracket, Ep Type Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS8A3 (2010)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2010
MFS8A3

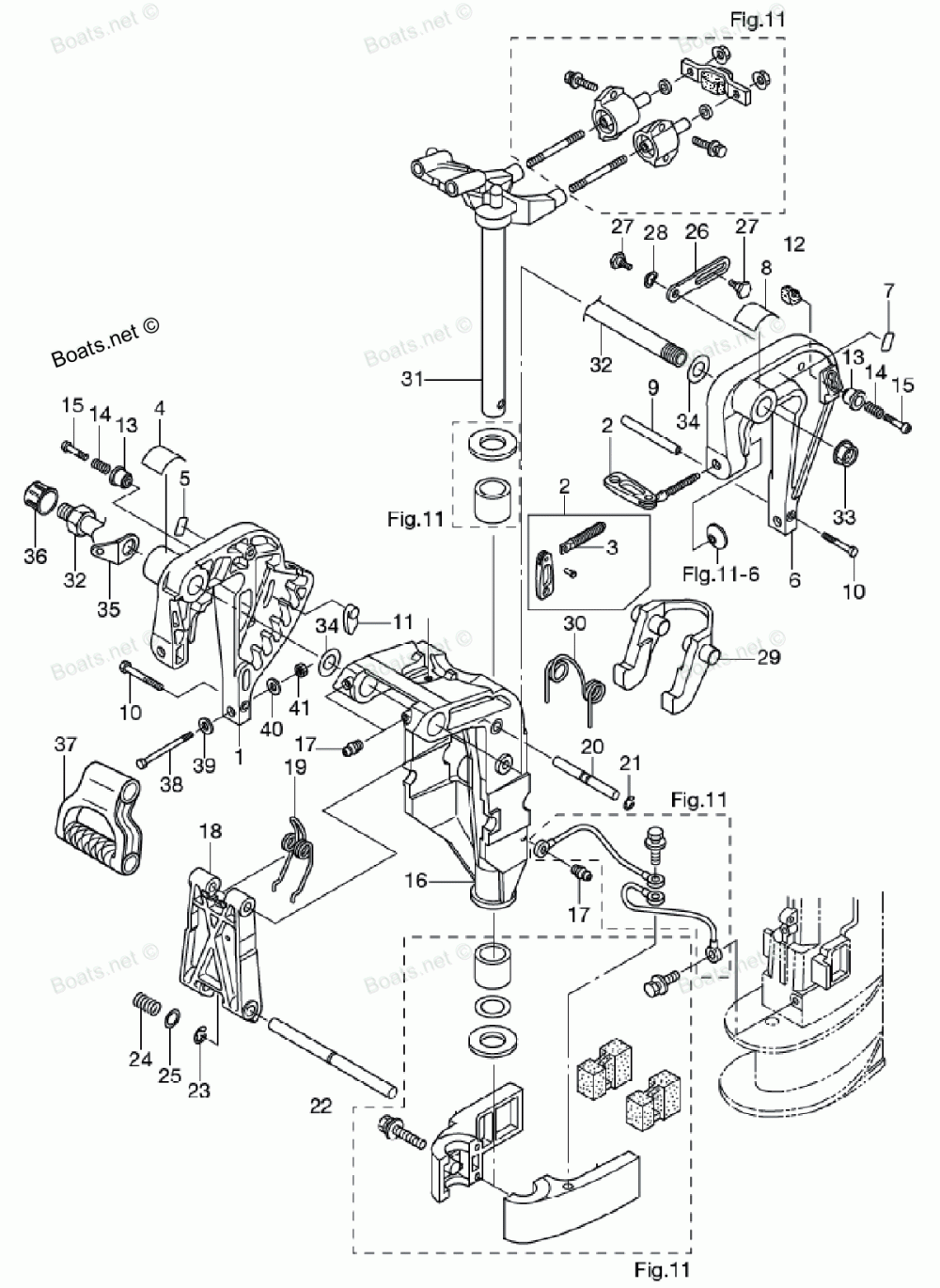

Bracket, Ep Type
Bracket, Ep Type

Bracket, Ep Type

Tohatsu MFS8A3

Bracket, Ep Type

#

oem код

название

цена

1

CLAMP BRACKET R

CLAMP BRACKET R

2

CLAMP SCREW ASSEMBLY

CLAMP SCREW ASSEMBLY

3

CLAMP SCREW

CLAMP SCREW

4

TRIM POSITION DECAL

TRIM POSITION DECAL

5

LOWER TILT LIMIT DECAL

LOWER TILT LIMIT DECAL

6

CLAMP BRACKET LEFT

CLAMP BRACKET LEFT

7

TILT LOCK DECAL

TILT LOCK DECAL

8

CO-PILOT DECAL

CO-PILOT DECAL

9

DISTANCE PIECE

DISTANCE PIECE

10

Болт

Болт

11

TRIM SETTING PLATE

TRIM SETTING PLATE

12

TILT LOCK PIECE

TILT LOCK PIECE

13

Ручка

Ручка

14

SPRING TILT LOCK KNOB

SPRING TILT LOCK KNOB

15

Винт

Винт

16

SWIVEL BRACKET

SWIVEL BRACKET

17

Масленка

Масленка

18

TILT STOPPER BODY

TILT STOPPER BODY

19

Пружина

Пружина

20

TILT STOPPER SHAFT, UPPER

TILT STOPPER SHAFT, UPPER

21

E-RING DIAMETER: 6

E-RING DIAMETER: 6

22

TILT STOPPER SHAFT, LOWER

TILT STOPPER SHAFT, LOWER

23

E-RING DIAMETER: 9

E-RING DIAMETER: 9

24

Пружина

Пружина

25

WASHER 10.5-18-1.5

WASHER 10.5-18-1.5

26

TILT STOPPER, LEFT

TILT STOPPER, LEFT

27

Болт

Болт

28

WAVE WASHER, DIAMETER: 10

WAVE WASHER, DIAMETER: 10

29

REVERSE LOCK

REVERSE LOCK

30

REVERSE LOCK SPRING

REVERSE LOCK SPRING

31

STEERING SHAFT ASSEMBLY

STEERING SHAFT ASSEMBLY

32

SWIVEL BRACKET SHAFT ASSEMBLY

SWIVEL BRACKET SHAFT ASSEMBLY

33

NYLON NUT 7/8

NYLON NUT 7/8

34

WASHER 22-36-1

WASHER 22-36-1

35

Пластина

Пластина

36

CAP NUT BRACKET BOLT

CAP NUT BRACKET BOLT

37

CARRYING HANDLE

CARRYING HANDLE

38

Болт

Болт

39

Шайба

Шайба

40

Шайба

Шайба

41

NYLON NUT 8P1.25

NYLON NUT 8P1.25
