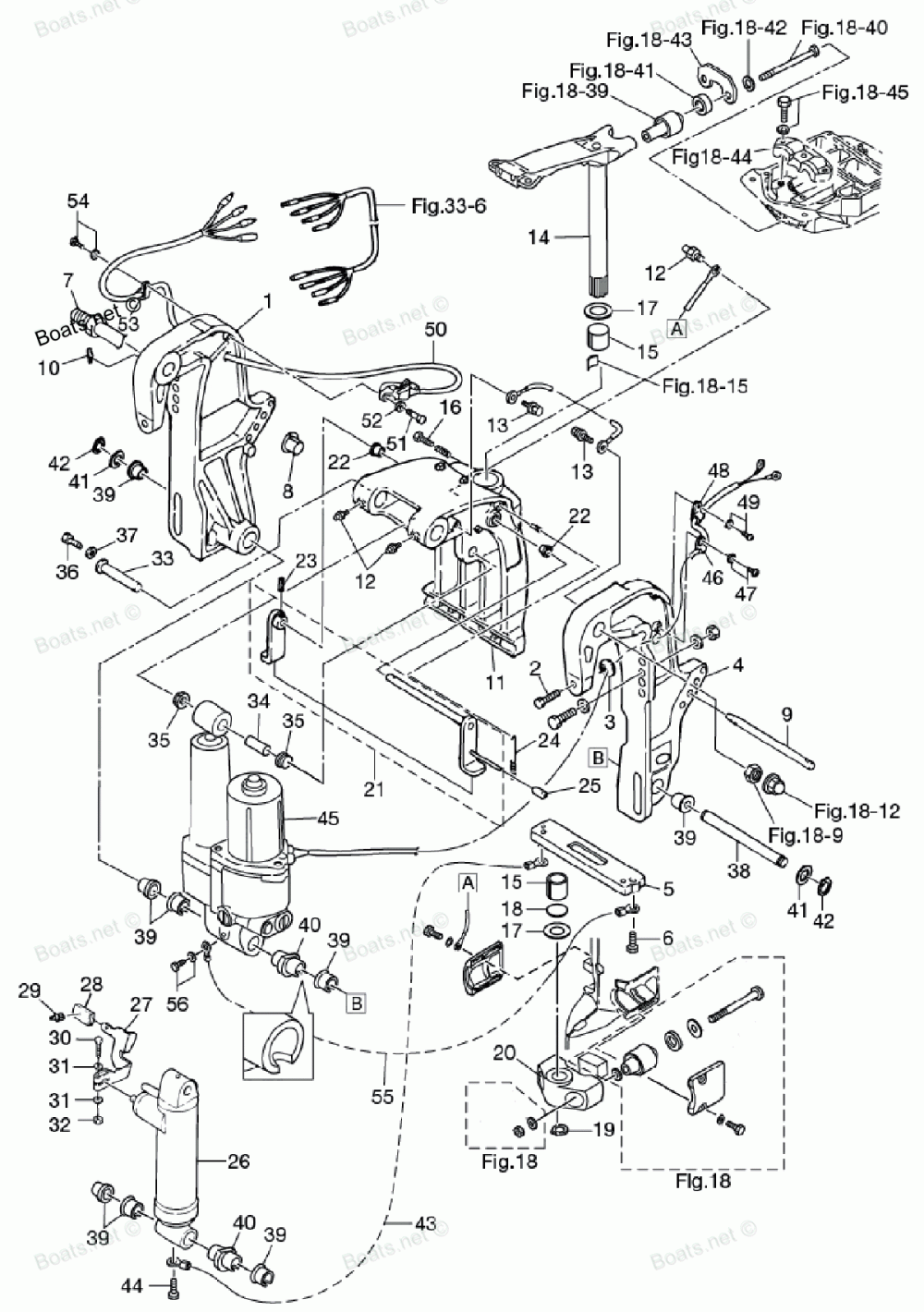

Bracket 2, Power Trim & Tilt

Tohatsu MD50B2
Tohatsu
#oem кодцена
1
3Z5Q772110
CLAMP BRACKET, PTT-R
2
3C8772140M
CLAMP SCREW PTT
3
332621010M
CLAMP SCREW PAD
4
3Z5Q772120
CLAMP BRACKET, PTT-L
5
3C7602182M
ANODE STERN BRACKET
6
9101036630
Болт
7
3AD621910M
SWIVEL BRACKET SHAFT ASSEMBLY
8
3C8772130M
BUSHING BRACKET BOLT
9
3R0771180M
PTT THRUST ROD
10
9516031000
SNAP PIN
11
3Z5Q772150
SWIVEL BRACKET ASSEMBLY, PTT
12
344671770M
Масленка
13
9101E35612
Болт
14
3Z5Q620100
STEERING SHAFT ASSEMBLY
15
353624170M
BUSHING BRACKET SHAFT
16
9101E30830
Болт
17
353624231M
THRUST PLATE, UPPER
18
353624150M
O-RING BRACKET SHAFT
19
9451032800
C-RING DIAMETER:28
20
3Z5Q614110
MOUNT BRACKET
21
3R0Q624700
TILT STOPPER ASSEMBLY
21
3Z5624701M
TILT STOPPER ASSEMBLY
22
353632070M
COLLAR 10.2-12-12
23
9514033516
SPRING PIN 3.5-16
24
3R0624730M
TILT STOPPER SPRING
25
369624331M
TILT STOPPER GRIP
26
3R0Q776010
GAS SHOCK ABSORBER
27
3R0663110M
REVERSE LOCK LEVER
28
3AL663330M
REVERSE LOCK LEVER GRIP
29
346663340M
STOPPER REVERSE LOCK LEVER GRIP
30
9101F40635
Болт
31
9401E30600
Шайба
31
9401030600
Шайба
32
9301E30600
Гайка
33
3R0770711M
CYLINDER PIN, UPPER
34
3R0770750M
BUSHING 13-16-40
35
3R0770760M
BUSHING 13-17-19.5
36
9101030612
BOLT 6-12
36
9101E30612
BOLT 6-12
37
345051221M
WASHER 6.5-23-1.5
38
3R0771011M
CYLINDER PIN, LOWER
39
3C8770761M
BUSHING 18-24-22
40
3Z5771030M
BUSHING 18-24-60
41
3R0771120M
WASHER 18.2-34-1
42
9451031800
C-RING DIAMETER: 18
43
3C8623961M
GROUND, EARTH WIRE
44
9101035608
Болт
45
3Z5771501M
PTT ASSEMBLY
46
336069730M
CLAMP 6-9.5L
47
9215035612
Винт
48
345069150M
CLAMP 6.5-14
49
9215035612
Винт
50
3Z4725740M
TRIM SENSOR LENGTH: 1700
51
9101030620
Болт
52
3C8663080M
WASHER 6-16-1.5
53
336069730M
CLAMP 6-9.5L
54
9215035612
Винт
55
398623961M
GROUND, EARTH WIRE, LENGTH: 130
56
9101E35612
Болт
