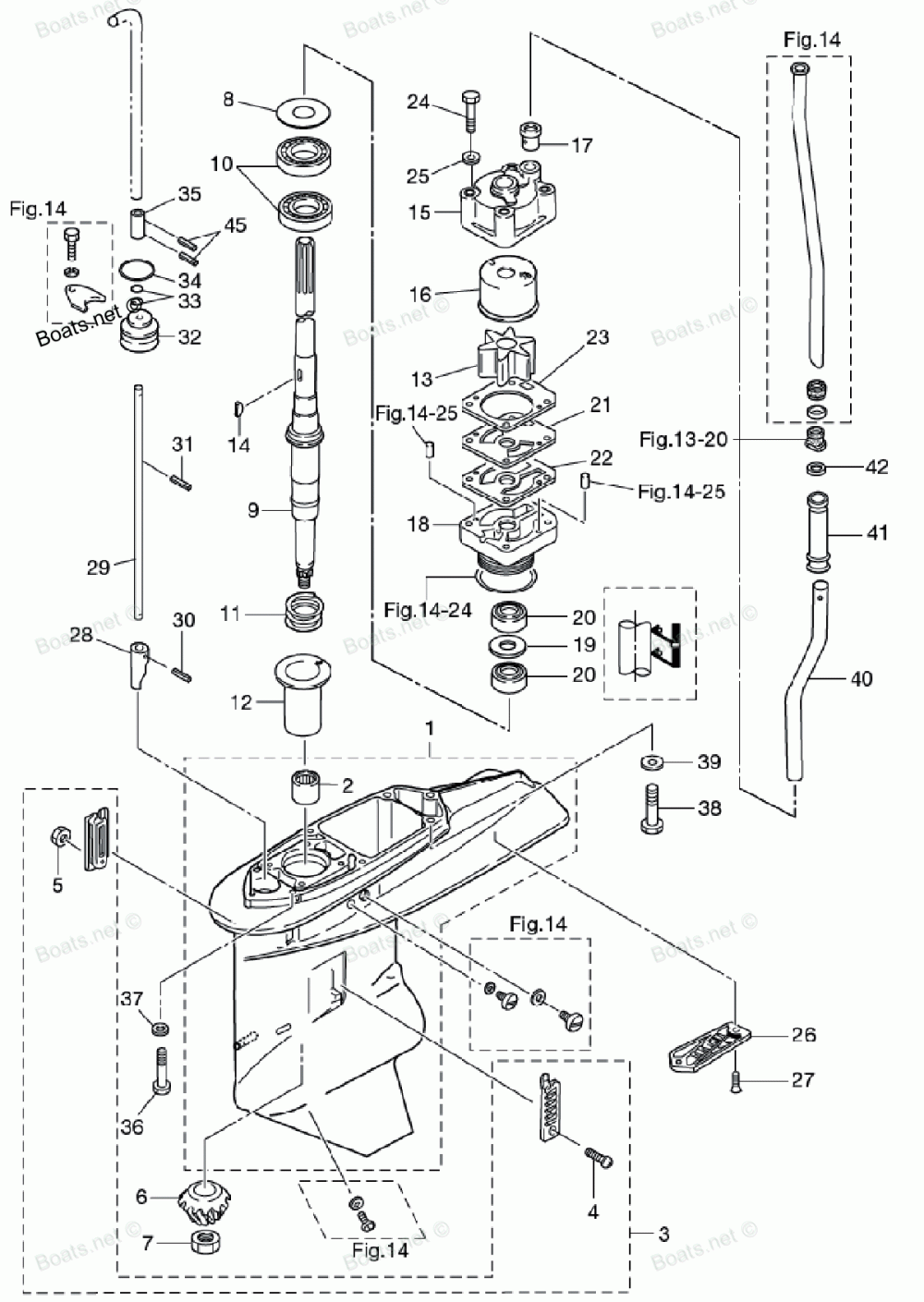

Gear Case, Drive Shaft, Mwd50, Big Foot

Tohatsu MD50B2
Tohatsu
#oem кодцена
1
3S7Q600901
GEAR CASE ASSEMBLY, WITH SUBWATER PIPE
2
353602110M
ROLLER BEARING PROPELLER SHAFT
3
3B7602050M
WATER STRAINER SET
4
9215030438
Винт
5
9304030400
NYLON NUT 4P0.7
6
3F3640200M
BEVEL GEAR B
7
353640270M
NUT BEVEL GEAR B
8
353640810M
SHIM 44-50.5-0.1
8
353640820M
SHIM 44-50.5-0.15
8
353640830M
SHIM 44-50.5-0.3
9
3S7643030M
DRIVE SHAFT UL
9
3S7643020M
DRIVE SHAFT L
10
3C8602130M
BALL BEARING 6205R
11
353643270M
DRIVE SHAFT SPRING
12
3A3643280M
DRIVE SHAFT SPRING GUIDE
13
3B7650212M
WATER PUMP IMPELLER
14
3B7650220M
KEY PUMP IMPELLER
15
3B7650160M
PUMP CASE SUB-ASSEMBLY, UPPER
16
3B7652380M
PUMP CASE LINER, CHROME PLATED
17
3B7650140M
WATER PIPE SEAL, LOWER
18
3F3650171M
PUMP CASE, LOWER
19
3F3640840M
SHIM 36.9-30-0.5
20
3F3602230M
OIL SEAL 22-37-8
21
3F3652391M
WATER PUMP GUIDE PLATE, CHROME PLATED
22
3B7650290M
GUIDE PLATE GASKET
23
3B7650180M
PUMP CASE GASKET
24
9161E30880
Болт
25
9401030800
Шайба
26
3F3602040M
SUB-WATER INLET STAINER
27
9215030608
Винт
28
3C8660110M
Кулачковый толкатель
29
3S7660130M
CAM ROD L
29
3S7660140M
CAM ROD, UL
30
9514033514
SPRING PIN 3.5-14
31
9514033510
SPRING PIN 3.5-10
32
3B7660311M
CAM ROD BUSHING
33
345660210M
O-RING 1.9-6.8
34
3B7660230M
O-RING 3.2-27.7
35
3S7662410M
SHIFT ROD JOINT
36
3T1600010M
BOLT 8-35
37
9402E30800
Шайба
38
3B7600014M
BOLT 10-40
39
9402E31000
Шайба
40
3S7602520M
EXTENSION PIPE
41
3S7602510M
JOINT HOSE
42
345652050M
COLLAR 18-20-4.5
