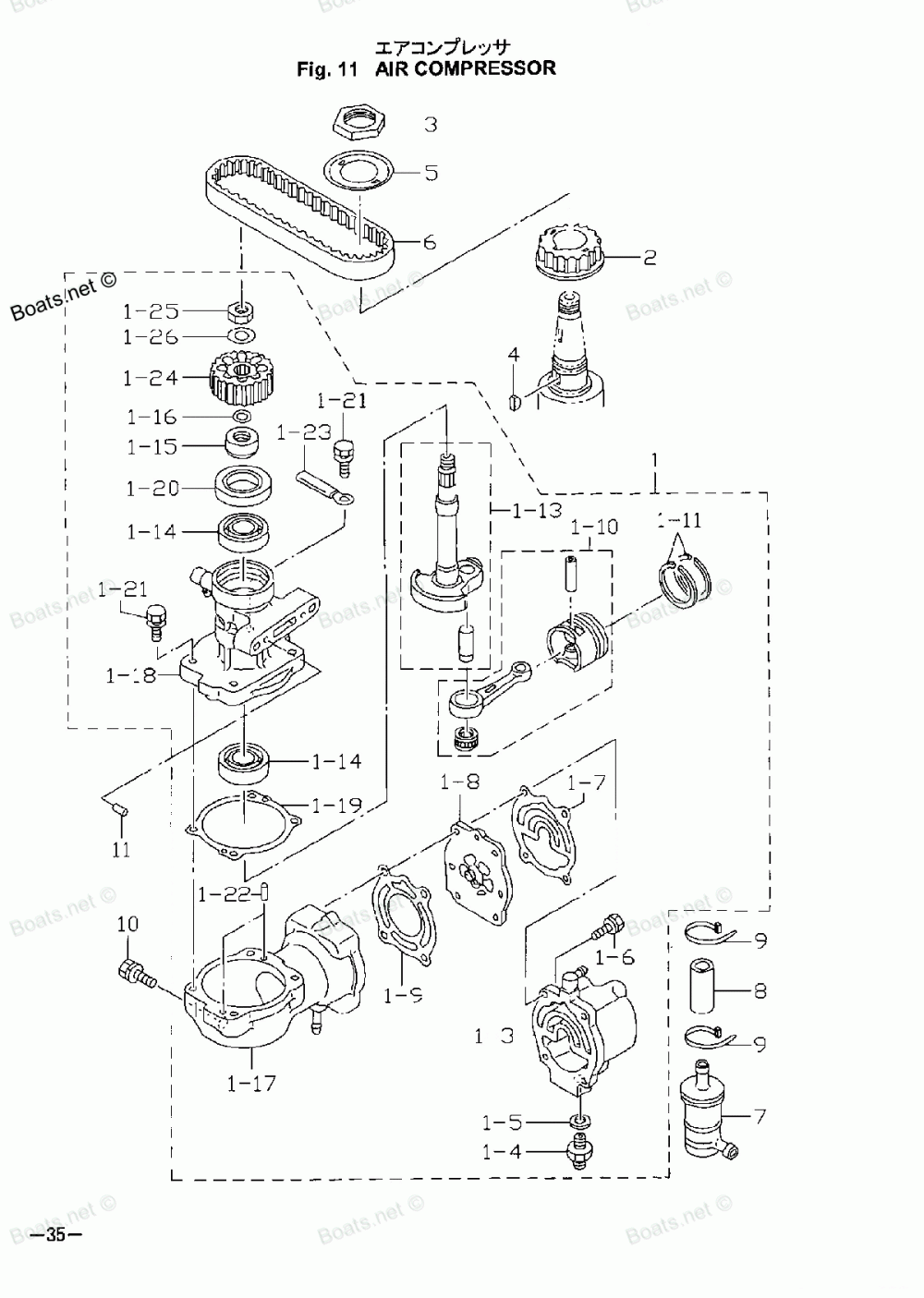

Tohatsu MD90B

Воздушный компрессор

#

oem код

название

цена

1

AIR COMPRESSOR

AIR COMPRESSOR

1

AIR COMPRESSOR ASSEMBLY

AIR COMPRESSOR ASSEMBLY

1-3

HEAD, COMPRESSOR (WITH NIPPLE)

HEAD, COMPRESSOR (WITH NIPPLE)

1-4

ADPATER, HOSE JOINT

ADPATER, HOSE JOINT

1-5

METAL WASHER, 10.2 - 17 - 2

METAL WASHER, 10.2 - 17 - 2

1-6

Болт

Болт

1-7

GASKET, COMPRESSOR HEAD

GASKET, COMPRESSOR HEAD

1-8

Клапан

Клапан

1-9

GASKET, VALVE SET

GASKET, VALVE SET

1-10

PISTON & CONNECTING ROD

PISTON & CONNECTING ROD

1-11

Кольцо поршневое

Кольцо поршневое

1-13

CRANK SHAFT

CRANK SHAFT

1-14

BEARING, 6203

BEARING, 6203

1-15

COLLAR, 13.5 - 25 - 13

COLLAR, 13.5 - 25 - 13

1-16

O-RING, 13 - 1.9

O-RING, 13 - 1.9

1-17

Цилиндр

Цилиндр

1-18

HOUSING, COMPRESSOR

HOUSING, COMPRESSOR

1-19

GASKET, COMPRESSOR HOUSING

GASKET, COMPRESSOR HOUSING

1-20

OIL SEAL, 25 - 45 - 7

OIL SEAL, 25 - 45 - 7

1-21

Болт

Болт

1-22

KNOCK, 4 - 10

KNOCK, 4 - 10

1-23

CLAMP, 6.5 - 47.5P

CLAMP, 6.5 - 47.5P

1-24

DRIVEN PULLEY

DRIVEN PULLEY

1-25

NUT, DRIVEN PULLEY, 10 - P1.25

NUT, DRIVEN PULLEY, 10 - P1.25

1-26

WASHER, 10.5 - 20 - 3.2

WASHER, 10.5 - 20 - 3.2

2

DRIVE PULLEY

DRIVE PULLEY

2

COMPRESSOR HEAD ASSEMBLY

COMPRESSOR HEAD ASSEMBLY

3

NUT, PULLEY

NUT, PULLEY

3

ADAPTER HOSE JOINT

ADAPTER HOSE JOINT

4

KEY, DRIVE PULLEY

KEY, DRIVE PULLEY

4

METAL WASHER 10.2-17-2

METAL WASHER 10.2-17-2

5

Болт

Болт

5

BELT GUIDE

BELT GUIDE

6

GASKET COMPRESSOR HEAD

GASKET COMPRESSOR HEAD

6

Ремень

Ремень

7

REED VALVE ASSEMBLY

REED VALVE ASSEMBLY

7

Воздушный фильтр

Воздушный фильтр

8

VALVE SEAT GASKET

VALVE SEAT GASKET

8

AIR HOSE

AIR HOSE

9

BAND, LEAD WIRE 104

BAND, LEAD WIRE 104

9

AIR COMPRESSOR PISTON CONNECTION ROD

AIR COMPRESSOR PISTON CONNECTION ROD

10

Болт

Болт

10

PISTON PIN, COMPRESSOR

PISTON PIN, COMPRESSOR

11

COMPRESSOR CRANKSHAFT ASSEMBLY

COMPRESSOR CRANKSHAFT ASSEMBLY

12

Подшипник

Подшипник

13

COLLAR 13.5-25-13

COLLAR 13.5-25-13

14

O-RING 1.9-13

O-RING 1.9-13

15

COMPRESSOR CYLINDER

COMPRESSOR CYLINDER

16

COMPRESSOR HOUSING

COMPRESSOR HOUSING

17

COMPRESSOR HOUSING GASKET

COMPRESSOR HOUSING GASKET

18

OIL SEAL 25-45-8

OIL SEAL 25-45-8

19

Болт

Болт

20

DOWEL PIN 4-10

DOWEL PIN 4-10

21

DRIVEN PULLEY

DRIVEN PULLEY

22

NUT M10P1.15

NUT M10P1.15

23

WASHER 10.5-20-3.2

WASHER 10.5-20-3.2

24

WATER TEMPERATURE SENSOR, WITH O-RING

WATER TEMPERATURE SENSOR, WITH O-RING

25

O-RING 2.0-10.0

O-RING 2.0-10.0

26

Болт

Болт

27

DOWEL PIN 6-12

DOWEL PIN 6-12

28

DRIVE PULLEY M18P1.5

DRIVE PULLEY M18P1.5

29

Ремень

Ремень

30

Воздушный фильтр

Воздушный фильтр

31

Шланг

Шланг

32

Шланг

Шланг
