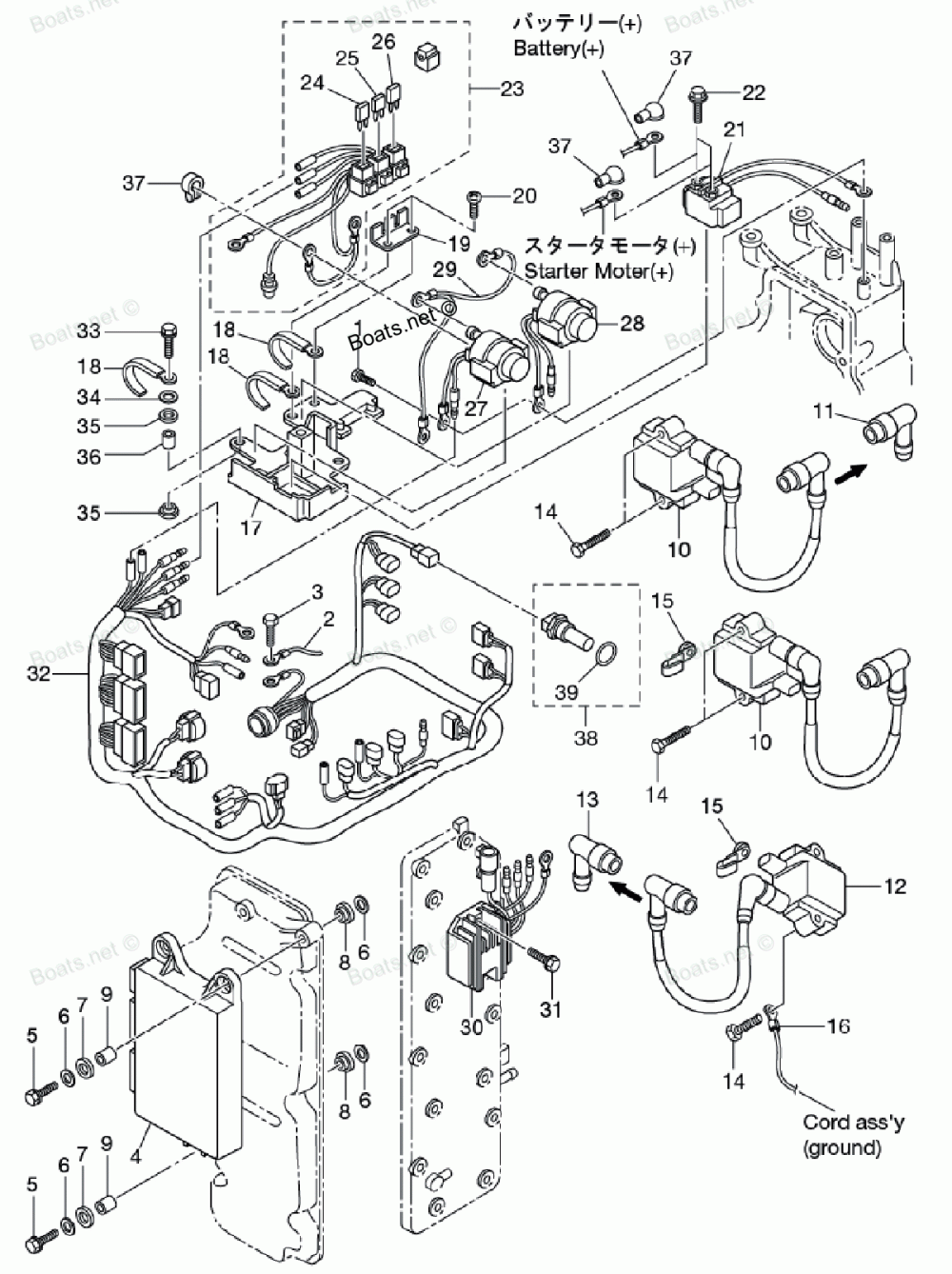

Electric Parts, Ecu Diagram

Tohatsu MD90B
Tohatsu
#oem кодцена
1
3FY064010M
ECU ASSEMBLY
1
3FW064010M
ECU ASSEMBLY
2
9101030630
Болт
3
346671150M
WASHER 6.5-21-1
4
346671130M
MOUNT RUBBER 8.5-14-2.5
5
3B7069200M
MOUNT RUBBER 8.5-14-2.5
6
3T5671140M
SPACER 6.2-9-16.6
7
3Y9064691M
Катушка зажигания
8
3H6069990M
PLUG CAP, REGISTANCE
9
9101035630
Болт
10
3FW760600M
RECTIFIER COMPLETE
11
9101035625
Болт
12
9101035612
Болт
13
3FW062810M
CABLE TERMINAL HOLDER
14
9101030620
Болт
15
3C8663080M
WASHER 6-16-1.5
16
3F3069200M
MOUNT RUBBER 8.5-12-2
17
3T5760790M
SPACER 6.2-9-10.7
18
3FW761100M
CORD ASSEMBLY
19
3T5762490M
FUSE 30A
20
3Y9762480M
FUSE 25A
21
3T5762460M
FUSE 15A
22
3A3760370M
PLUG B CABLE TERMINAL
23
9101035612
Болт
24
3T1843980M
LEAD WIRE BAND 170
25
3FW761740M
Опора
26
9101035612
Болт
27
369843980M
BAND LEAD WIRE 158
28
3FW069010M
ELECTRIC BRACKET
29
9101030625
Болт
30
3C8663080M
WASHER 6-16-1.5
31
3F3069200M
MOUNT RUBBER 8.5-12-2
32
3T5760790M
SPACER 6.2-9-10.7
33
3AC760910M
BAND LEAD WIRE LENGTH: 200
34
3T5843980M
BAND LEAD WIRE LENGTH: 104
35
3T5064370M
TAPPING SCREW 6-16
36
3H8760400M
STARTER SOLENOID
37
9101035608
Болт
38
3Y1761450M
TERMINAL CAP
39
3C8725800M
SOLENOID SWITCH A P-T/T
40
3C8725810M
SOLENOID SWITCH B P-T/T
41
3T5761421M
GROUND CORD
42
9101035612
Болт
43
3Y1761450M
TERMINAL CAP
44
3A3761450M
CAP STARTER TERMINAL
45
3Y9725140M
WATER TEMPERATURE SENSOR, WITH O-RING
46
3G9661360M
O-RING 2.0-10.00
47
3R3761410M
STARTER CORD LENGTH: 270
48
9101035612
Болт
49
3FW761200M
BATTERY CABLE
50
9101035612
Болт
51
9301030800
Гайка
52
3FW761450M
TERMINAL CAP
