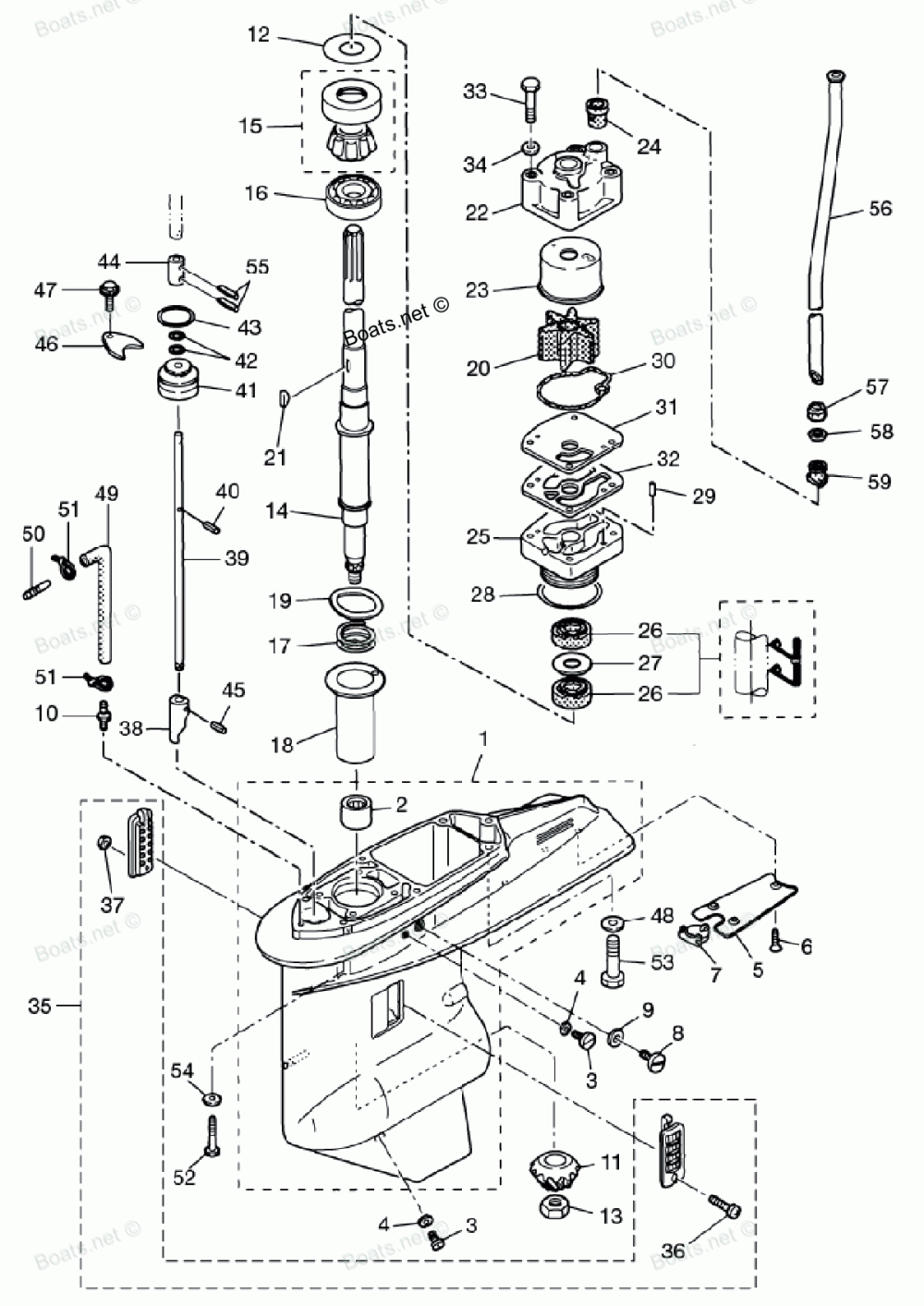

Gear Case, Drive Shaft
Gear Case, Drive Shaft

Gear Case, Drive Shaft

Tohatsu MD115A2

Gear Case, Drive Shaft

#

oem код

название

цена

1

GEAR CASE ASSEMBLY

GEAR CASE ASSEMBLY

2

ROLLER BEARING 28.6-38.1-3

ROLLER BEARING 28.6-38.1-3

3

Заглушка

Заглушка

4

GASKET 8.1-15-1

GASKET 8.1-15-1

5

GEAR CASE PLATE

GEAR CASE PLATE

6

Винт

Винт

7

GREAR CASE PLATE PLUG

GREAR CASE PLATE PLUG

8

PLUG WATER

PLUG WATER

9

GASKET 10.1-15-1

GASKET 10.1-15-1

10

NIPPLE 6-1/8

NIPPLE 6-1/8

11

BEVEL GEAR B

BEVEL GEAR B

12

SHIM 52-60.5-0.3

SHIM 52-60.5-0.3

12

SHIM 52-60.5-0.15

SHIM 52-60.5-0.15

12

SHIM 52-60.5-0.1

SHIM 52-60.5-0.1

13

NUT BEVEL GEAR B

NUT BEVEL GEAR B

14

DRIVE SHAFT L

DRIVE SHAFT L

14

DRIVE SHAFT UL

DRIVE SHAFT UL

15

TAPERED ROLLER BEARING 0506

TAPERED ROLLER BEARING 0506

16

BALL BEARING 16007

BALL BEARING 16007

17

DRIVE SHAFT SPRING

DRIVE SHAFT SPRING

18

DRIVE SHAFT SPRING GUIDE

DRIVE SHAFT SPRING GUIDE

19

WAVE WASHER DIAMETER: 47.2

WAVE WASHER DIAMETER: 47.2

20

WATER PUMP IMPELLER

WATER PUMP IMPELLER

21

KEY PUMP IMPELLER

KEY PUMP IMPELLER

22

PUMP CASE SUB-ASSEMBLY, UPPER

PUMP CASE SUB-ASSEMBLY, UPPER

23

PUMP CASE LINER

PUMP CASE LINER

24

WATER PIPE SEAL , LOWER

WATER PIPE SEAL , LOWER

25

PUMP CASE, LOWER

PUMP CASE, LOWER

26

OIL SEAL 22-42-7

OIL SEAL 22-42-7

27

SHIM 35-41.9-0.5

SHIM 35-41.9-0.5

28

O-RING 3.1-54.4

O-RING 3.1-54.4

29

DOWEL PIN 4-10

DOWEL PIN 4-10

30

PUMP CASE GASKET

PUMP CASE GASKET

31

WATER PUMP GUIDE PLATE

WATER PUMP GUIDE PLATE

32

GUIDE PLATE GASKET

GUIDE PLATE GASKET

33

Болт

Болт

34

Шайба

Шайба

35

WATER STRAINER SET

WATER STRAINER SET

36

Винт

Винт

37

NYLON NUT 4P0.7

NYLON NUT 4P0.7

38

Кулачковый толкатель

Кулачковый толкатель

39

CAM ROD L

CAM ROD L

39

CAM ROD UL

CAM ROD UL

40

SPRING PIN 3.5-10

SPRING PIN 3.5-10

41

CAM ROD BUSHING

CAM ROD BUSHING

42

O-RING 1.9-6.8

O-RING 1.9-6.8

43

O-RING 3.5-27.7

O-RING 3.5-27.7

44

SHIFT PIN 3.5-16

SHIFT PIN 3.5-16

45

SPRING PIN 3.5-16

SPRING PIN 3.5-16

46

STOPPER DRIVE SHAFT HOUSING

STOPPER DRIVE SHAFT HOUSING

47

Болт

Болт

48

Шайба

Шайба

49

Шланг

Шланг

49

Шланг

Шланг

50

NIPPLE 6-6

NIPPLE 6-6

51

BAND LEAD WIRE 100

BAND LEAD WIRE 100

52

BOLT 8-35

BOLT 8-35

53

BOLT 10-40

BOLT 10-40

54

Шайба

Шайба

55

SPRING PIN 3.5-16

SPRING PIN 3.5-16

56

WATER PIPE L

WATER PIPE L

56

WATER PIPE UL

WATER PIPE UL

56

WATER PIPE SEAL, UPPER

WATER PIPE SEAL, UPPER

58

COLLAR 18-20-4.5

COLLAR 18-20-4.5

59

WATER PIPE AUXILIARY MOUNT

WATER PIPE AUXILIARY MOUNT
