Manual Tilt (m Type) Каталог оригинальных запчастей для лодочных моторов Tohatsu MD50B (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2008
MD50B
Manual Tilt (m Type)
Manual Tilt (m Type)

Manual Tilt (m Type)

Tohatsu MD50B

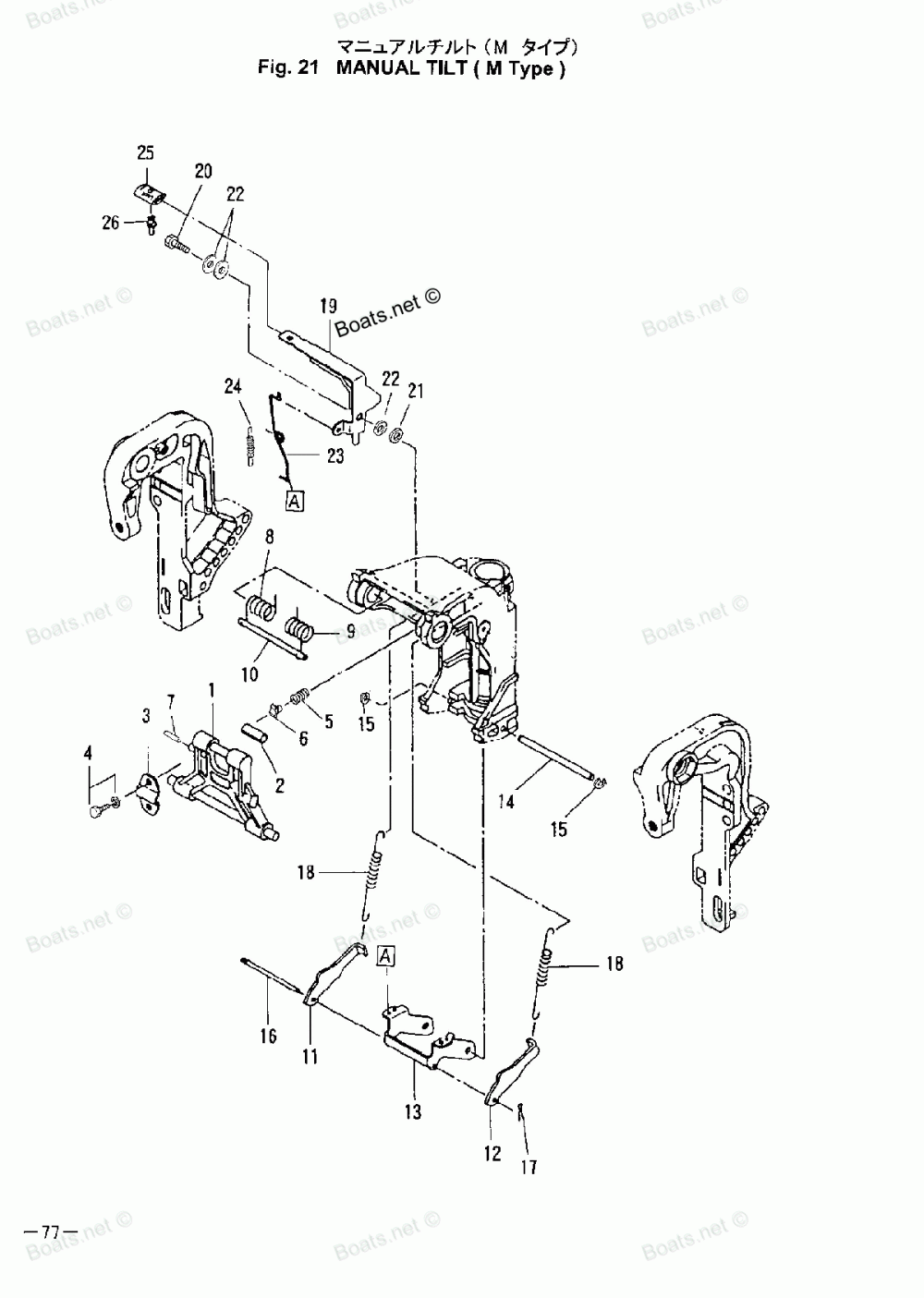

Manual Tilt (m Type)

#

oem код

название

цена

1

TILT STOPPER

TILT STOPPER

2

BUSHING, 10.2-12-29.5

BUSHING, 10.2-12-29.5

3

SET PLATE, TILT STOPPER

SET PLATE, TILT STOPPER

4

Болт

Болт

5

Пружина

Пружина

6

SET PIECE

SET PIECE

7

SPRING PIN, 4-25

SPRING PIN, 4-25

8

SPRING R, TILT ASSISTANT

SPRING R, TILT ASSISTANT

9

SPRING L, TILT ASSISTANT

SPRING L, TILT ASSISTANT

10

SHAFT, TILT ASSISTANT

SHAFT, TILT ASSISTANT

11

REVERSE LOCK L

REVERSE LOCK L

12

REVERSE LOCK R

REVERSE LOCK R

13

ARM, REVERSE LOCK

ARM, REVERSE LOCK

14

SHAFT, REVERSE LOCK

SHAFT, REVERSE LOCK

15

E-RING, D=6

E-RING, D=6

16

ROD, REVERSE LOCK

ROD, REVERSE LOCK

17

SPRIT PIN, 2-12

SPRIT PIN, 2-12

18

SPRING L, REVERSE LOCK

SPRING L, REVERSE LOCK

18

SPRING S, REVERSE LOCK

SPRING S, REVERSE LOCK

19

LEVER, TILT STOPPER

LEVER, TILT STOPPER

20

Вал

Вал

21

Шайба, 6х16х1.5

Шайба, 6х16х1.5

22

Шайба

Шайба

23

LINK B

LINK B

24

SPRING B

SPRING B

25

GRIP, REVERSE LOCK LEVER

GRIP, REVERSE LOCK LEVER

26

STOPPER, LEVER GRIP

STOPPER, LEVER GRIP
