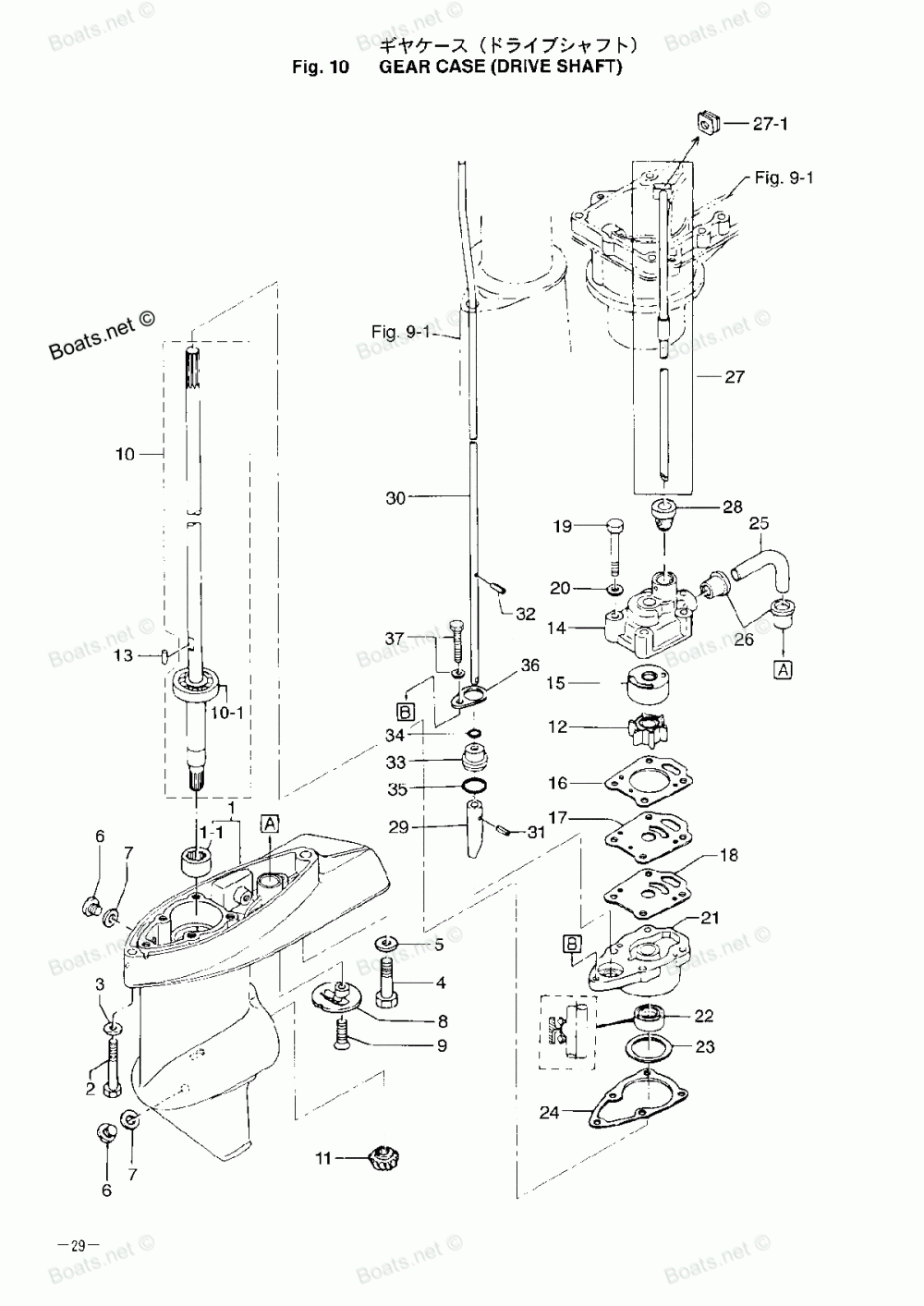

Корпус редуктора (вертикальный вал)

Tohatsu MFS4B
Tohatsu
#oem кодцена
B
369602060M
Водяная фильтрующая сетка
1
369Q600002
GEAR CASE
1
960106300M
BALL BEARING, 6300
1-1
369602110M
NEEDLE BEARING, 14-20-12
2
9161130645
Болт
3
9401130600
Шайба
4
9161130835
Болт
5
9401130800
Шайба
6
332600052M
OIL PLUG
7
332600060M
GASKET, 8.1-15-1
9
9218030620
Винт
10
369643030M
DRIVE SHAFT "UL"
10
369643010M
Вертикальный вал "S"
10
369643020M
Вертикальный вал "L"
11
369640202M
BEVEL GEAR "B"
12
369650211M
WATER PUMP IMPELLER
13
369650220M
WATER PUMP IMPELLER KEY
14
369650160M
PUMP CASE (UPPER)
15
369650110M
PUMP CASE LINER
16
369650180M
PUMP CASE GASKET (UPPER)
17
369650250M
WATER PUM GUIDE PLATE
18
369650290M
PUMP GUIDE PLATE GASKET
21
369650171M
PUMP CASE (LOWER)
22
369602230M
OIL SEAL, 10-24-8
23
369640811M
SHIM. 26.5-34.8-0.1
23
369840821M
SHIM 26.5-34.8-0.15
24
369650200M
PUMP CASE GASKET (LOWER)
25
369650350M
LOWER WATER PIPE
26
369650360M
LOWER WATER PIPE SEAL
27
369651200M
WATER PIPE "UL"
27
369651000M
WATER PIPE "S"
27
369651100M
WATER PIPE "L"
27-1
369651950M
WATER PIPE GROMMET (UPPER)
28
369650140M
WATER PIPE SEAT (LOWER)
29
369660110M
Кулачковый толкатель
30
369660141M
CAM ROD "UL"
30
369660120M
CAM ROD "S"
30
369660130M
CAM ROD "L"
31
9514070310
SPRING PIN, 3-10
32
9514070312
SPRING PIN, 3-12
33
369660310M
CAM ROD BUSHING
34
369660211M
O-RING, 2.5-4.9
35
332660320M
O-RING , 2.4-15.4
36
369660330M
CAM ROD BUSHING STOPPER
37
9101135625
Болт
