Bracket (for "eft & Ept" Type)

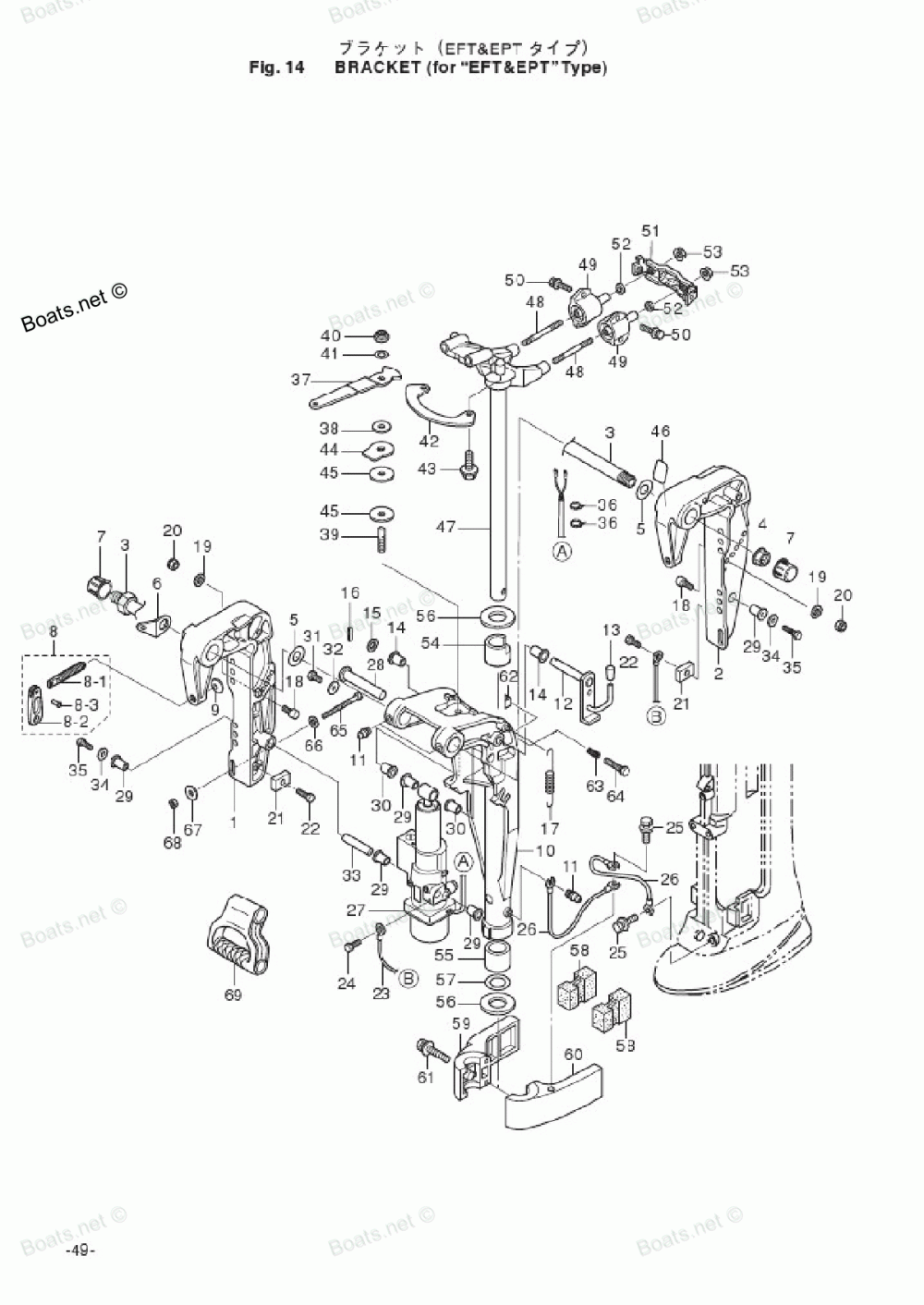

Bracket (for "eft & Ept" Type)

Bracket (for "eft & Ept" Type)

Tohatsu MFS8A3

oem код

название

цена

3Z0Q772112

CLAMP BRACKET (PTT-RIGHT)

3Z0Q772120

CLAMP BRACKET (PTT-LEFT)

ASSEMBLY

NYLON NUT, 7/8

WASHER, 22 - 36 - 1

Пластина

BRACKET SHAFT CAP

ASSEMBLY

8-1

3E3621030M

CLAMP SCREW

8-2

332Q621021

CLAMP SCREW HANDLE

8-3

RIVET, 3 - 22

CLAMP SCREW PAD

ASSEMBLY (PTT)

Масленка

TILT STOPPER

TILT STOPPER GRIP

COLLAR, 10.2 - 12 - 12

Шайба

SPRING PIN, 3.5 - 16

TILT STOPPER SPRING

TRIM LOCK PIN

WASHER, 8.1 - 16 - 1.5

3V5624420M

NYLON NUT (2T), M8 P-1.25

Анод

Болт

GROUND CABLE

Болт

Болт

GROUND CABLE

ASSEMBLY

CYLINDER PIN (UPPER)

BUSHING, 13 - 16 - 31

3R0770760M

BUSHING, 13 - 17 - 19.5

9101E30612

Болт

345051221M

WASHER, 6.5 - 23 - 1.5

CYLINDER PIN (LOWER)

WASHER, 8.5 - 28 - 1

Болт

LEAD WIRE BAND, 203

CO-PILOT HANDLE

WASHER, 8.1 - 20 - 0.8

CO-PILOT BOLT

NYLON NUT, 8P - 1.25

Шайба

CO-PILOT PLATE

Болт

CO-PILOT WASHER

CO-PILOT DISC

CO-PILOT DECAL

STEERING SHAFT

Шпилька

RUBBER MOUNT (UPPER)

Болт

DAMPER (UPPER)

Гайка

BUSHING, 24 - 30 - 30

350624170M

BUSHING, 24 - 30 - 30

350624230M

THRUST PLATE, 22 - 44 - 2

350624150M

O-RING, 3.5 - 22

3V1613020M

RUBBER MOUNT (LOWER)

3V1Q614010

MOUNT BRACKET (RIGHT)

MOUNT BRACKET (LEFT)

Болт

Стопор фрикционный

FRICTION SPRING

Болт

Болт

Шайба

CARRYING HANDLE
