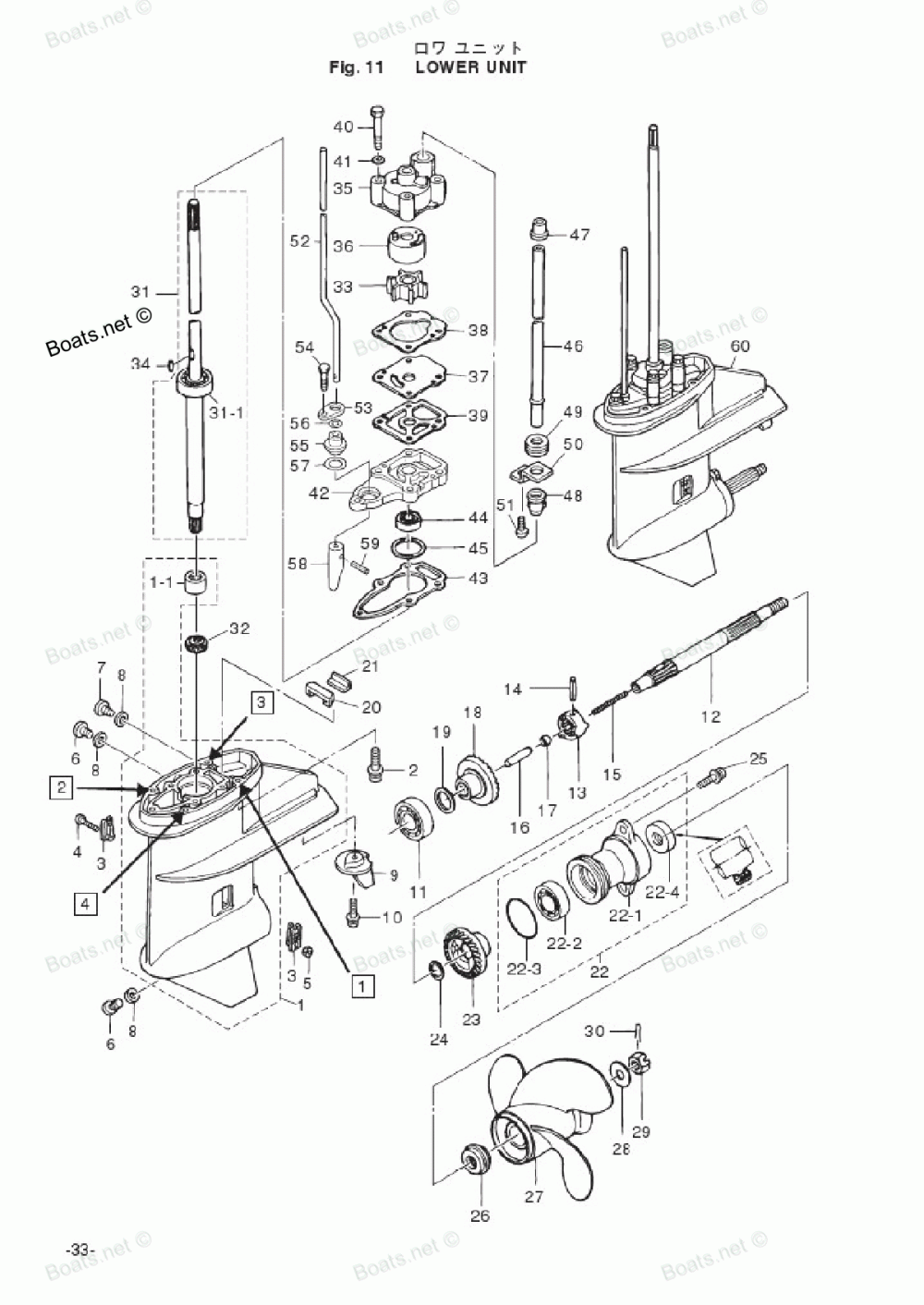

Lower Unit

Tohatsu MFS8A3

Lower Unit

#

oem код

название

цена

1

ASSEMBLY

ASSEMBLY

1-1

NEEDLE BEARING, 15 - 21 - 16

NEEDLE BEARING, 15 - 21 - 16

2

BOLT, 6 - 35 PRE-COATED

BOLT, 6 - 35 PRE-COATED

3

Водяная фильтрующая сетка

Водяная фильтрующая сетка

4

Винт

Винт

5

NYLON NUT, 4P - 0.7

NYLON NUT, 4P - 0.7

6

OIL PLUG

OIL PLUG

8

GASKET, 8.1 - 15 - 1

GASKET, 8.1 - 15 - 1

9

Триммер

Триммер

10

Болт

Болт

11

BALL BEARING, 6204

BALL BEARING, 6204

12

Вал гребного винта

Вал гребного винта

13

Муфта сцепления

Муфта сцепления

14

SPRING PIN, 3.5 - 28

SPRING PIN, 3.5 - 28

15

Пружинка

Пружинка

16

CLUTCH PUSH ROD

CLUTCH PUSH ROD

17

CLUTCH SPRING RETAINER

CLUTCH SPRING RETAINER

18

BEVEL GEAR "A"

BEVEL GEAR "A"

19

SHIM, 21 - 28 - 0.15

SHIM, 21 - 28 - 0.15

19

SHIM, 21 - 28 - 0.1

SHIM, 21 - 28 - 0.1

20

WATER SEAL RUBBER

WATER SEAL RUBBER

21

WATER SEAL PLATE

WATER SEAL PLATE

22

ASSEMBLY

ASSEMBLY

22-1

PROPELLER SHAFT HOUSING

PROPELLER SHAFT HOUSING

22-2

BALL BEARING, 6004

BALL BEARING, 6004

22-3

O-RING, 3.2 - 47

O-RING, 3.2 - 47

22-4

OIL SEAL, 15 - 28 - 10

OIL SEAL, 15 - 28 - 10

23

BEVEL GEAR "C"

BEVEL GEAR "C"

24

WASHER, 15.2 - 19 - 1.9

WASHER, 15.2 - 19 - 1.9

25

Болт

Болт

26

PROPELLER THRUST HOLDER

PROPELLER THRUST HOLDER

27

PROPELLER (6.5), 3 X 8.5 X 6.5

PROPELLER (6.5), 3 X 8.5 X 6.5

27

PROPELLER (7), 3 X 8.9 X 7.0

PROPELLER (7), 3 X 8.9 X 7.0

27

PROPELLER (7), 4 X 8.5 X 7.0

PROPELLER (7), 4 X 8.5 X 7.0

27

PROPELLER (7.5), 3 X 8.5 X 7.5

PROPELLER (7.5), 3 X 8.5 X 7.5

27

PROPELLER (8.5), 3 X 8.9 X 8.3

PROPELLER (8.5), 3 X 8.9 X 8.3

27

PROPELLER (9.5), 3 X 8.9 X 10.0

PROPELLER (9.5), 3 X 8.9 X 10.0

27

PROPELLER (5), 4 X 8.7 X 5.0

PROPELLER (5), 4 X 8.7 X 5.0

28

WASHER, 10.5 - 28 - 2

WASHER, 10.5 - 28 - 2

29

PROPELLER NUT

PROPELLER NUT

30

SPLIT PIN, 3 - 18

SPLIT PIN, 3 - 18

31

Вертикальный вал "L"

Вертикальный вал "L"

31

DRIVE SHAFT "UL"

DRIVE SHAFT "UL"

31

Вертикальный вал "S"

Вертикальный вал "S"

31

Вертикальный вал "L"

Вертикальный вал "L"

31

DRIVE SHAFT "UL"

DRIVE SHAFT "UL"

31

Вертикальный вал "S"

Вертикальный вал "S"

31-1

BALL BEARING, 6301

BALL BEARING, 6301

32

BEVEL GEAR "B"

BEVEL GEAR "B"

33

WATER PUMP IMPELLER

WATER PUMP IMPELLER

34

PUMP IMPELLER KEY

PUMP IMPELLER KEY

35

PUMP CASE (UPPER)

PUMP CASE (UPPER)

36

PUMP CASE LINER

PUMP CASE LINER

37

WATER PUMP GUIDE PLATE

WATER PUMP GUIDE PLATE

38

PUMP CASE GASKET

PUMP CASE GASKET

39

GUIDE PLATE GASKET

GUIDE PLATE GASKET

40

Болт

Болт

41

Шайба

Шайба

42

PUMP CASE (LOWER)

PUMP CASE (LOWER)

43

PUMP CASE GASKET (LOWER)

PUMP CASE GASKET (LOWER)

44

OIL SEAL, 12 - 24 - 8

OIL SEAL, 12 - 24 - 8

45

SHIM, T=0.1

SHIM, T=0.1

45

SHIM, T=0.15

SHIM, T=0.15

45

SHIM, T=0.3

SHIM, T=0.3

46

WATER PIPE "S"

WATER PIPE "S"

46

WATER PIPE "L"

WATER PIPE "L"

46

WATER PIPE "UL"

WATER PIPE "UL"

47

WATER PIPE SEAL (UPPER)

WATER PIPE SEAL (UPPER)

48

WATER PIPE SEAL (LOWER)

WATER PIPE SEAL (LOWER)

49

WATER PIPE AUXILLARY MOUNT

WATER PIPE AUXILLARY MOUNT

50

Фиксирующая Пластина

Фиксирующая Пластина

51

Винт

Винт

52

CAM ROD "S"

CAM ROD "S"

52

CAM ROD "L"

CAM ROD "L"

52

CAM ROD "UL"

CAM ROD "UL"

53

Стопор

Стопор

54

Болт

Болт

55

CAM ROD BUSHING

CAM ROD BUSHING

56

O-RING, 2.5 - 4.9

O-RING, 2.5 - 4.9

57

O-RING, 2.4 - 15.4

O-RING, 2.4 - 15.4

58

Кулачковый толкатель

Кулачковый толкатель

59

SPRING PIN, 3 - 10

SPRING PIN, 3 - 10

60

ASSEMBLY "L"

ASSEMBLY "L"

60

ASSEMBLY "S"

ASSEMBLY "S"
