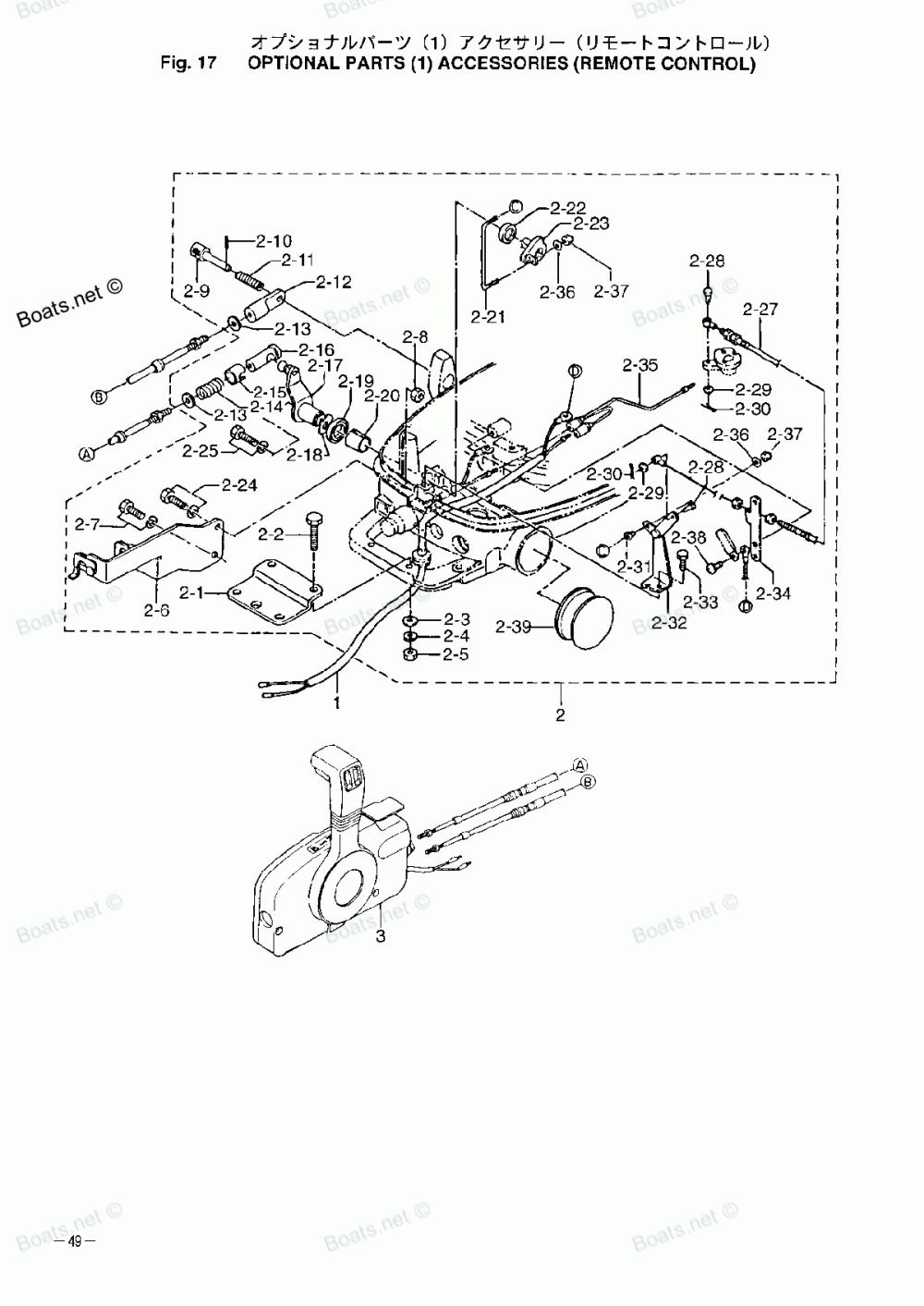

МАШИНКА ДИСТАНЦИОННОЕ УПРАВЛЕНИЕ

Tohatsu MFS5B
Tohatsu
#oem кодцена
1
369838460M
R.C. STOP CORD 2.OM (6.6FEET)
1
369838480M
R.C. STOP CORD 3.2M (10.5FEET)
1
369838530M
R.C. STOP CORD 3.9M (12.BFEET)
1
369838580M
R.C. STOP CORD 5.9M (19.4FEET)
2
3AS838800M
REMOTE CONTROL FITTING PARTS
2A
3H6838801M
REMOTE CONTROL FITTING PARTS
2-1
369838302M
STEERING HOOK PLATE
2-2
9101030830
Болт
2-3
9401030800
Шайба
2-4
9413030800
Пружинная шайба
2-5
9301030800
Гайка
2-6
369838200M
CABLE CLIP
2-7
9101036616
Болт
2-8
9301030600
Гайка
2-9
332837280M
LOCK PIN
2-10
9514030212
SPRING PIN, 2-12
2-11
332837290M
LOCK PIN SPRING
2-12
369837151M
CABLE JOINT
2-13
332837250M
WASHER, 5.5-14-1.2
2-14
332837240M
GAP SPRING
2-15
332837230M
HOLDER CAP
2-16
3A1837220M
BALL JOINT HOLDER
2-17
3H6839101M
THROTTLE LEVER "A"
2-18
9414031400
WAVE WASHER, D=14
2-19
338671470M
SEAL RING, 13.8-22-3.7
2-20
369671050M
THROTTLE LEVER BUSHING
2-21
3H6838252M
THROTTLE LINK ROD
2-22
369838880M
COLLAR, 13.5-18-2.5
2-23
3H6839201M
THROTTLE LINK LEVER
2-24
9101036625
Болт
2-25
9101535635
Болт
2-27
3H6838631M
THROTTLE CABLE (REMOTE CONTROL)
2-28
3H6636260M
THROTTLE CABLE PIN
2-29
9401030400
Шайба
2-30
9515031210
SPLIT PIN, 1.2-10
2-31
3H6636270M
ROD BUSING, 40 3
2-32
3H6838670M
THROTTLE LINK
2-33
9101030612
Болт
2-34
3H6838621M
THROTTLE CABLE BRACKET
2-35
3AS838830M
SEPARATE CORD
2-35A
3H6838830M
SEPARATE CORD
2-36
9401030300
Шайба
2-37
9304030300
NYLON NUT. 3-P0.5
2-38
9215037616
Винт
2-39
3H6671610M
GROMMET, 43-23
3
3B7Q843601
REMOTE CONTROL BOX (RC5D)
