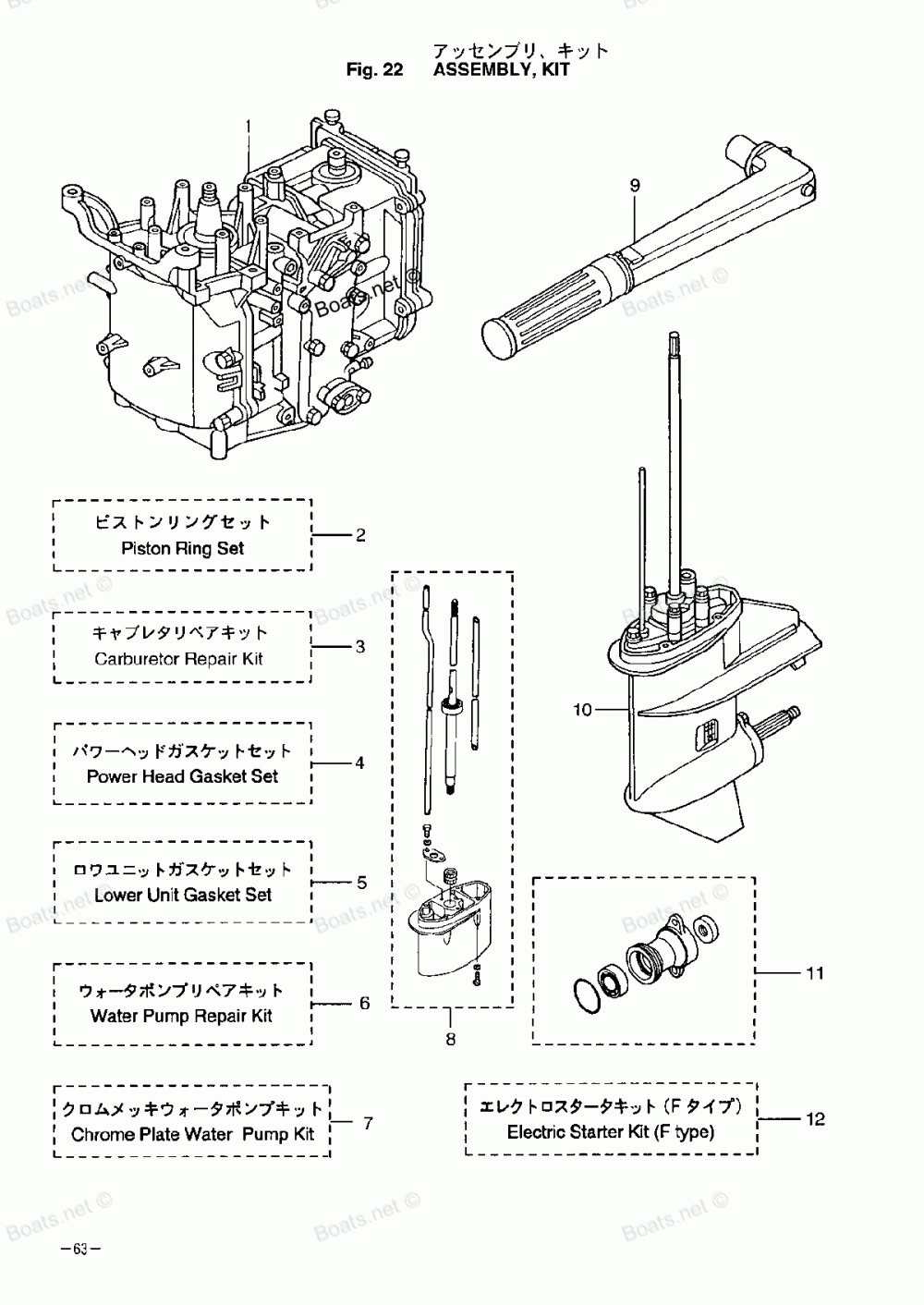

Assembly Kit

Tohatsu MFS8A3

Assembly Kit

#

oem код

название

цена

1

ENGINE SHORT BLOCK

ENGINE SHORT BLOCK

2

PISTON RING TOP (0.5MM O/S)

PISTON RING TOP (0.5MM O/S)

2

PISTON RING 2ND (0.5MM O/S)

PISTON RING 2ND (0.5MM O/S)

2

PISTON RING SET (STANDARD)

PISTON RING SET (STANDARD)

2

PISTON RING OIL (0.5MM O/S)

PISTON RING OIL (0.5MM O/S)

2

PISTONG RING TOP

PISTONG RING TOP

2

PISTON RING 2ND

PISTON RING 2ND

2

PISTONG RING OIL

PISTONG RING OIL

2

PISTON RING SET (0.5MM O/S)

PISTON RING SET (0.5MM O/S)

3

GASKET, CARBURETOR COVER

GASKET, CARBURETOR COVER

3

ARM PIN, FLOAT

ARM PIN, FLOAT

3

Винт

Винт

3

Поплавок

Поплавок

3

Винт

Винт

3

Прокладка

Прокладка

3

CARBURETOR REPAIR KIT

CARBURETOR REPAIR KIT

3

Винт

Винт

3

Уплотнительное кольцо

Уплотнительное кольцо

3

GASKET, DRAIN SCREW

GASKET, DRAIN SCREW

3

FLOAT VALVE

FLOAT VALVE

4

O-RING, 2.4 - 35.2

O-RING, 2.4 - 35.2

4

GASKET, THERMOSTAT CAP

GASKET, THERMOSTAT CAP

4

O-RING, 2.62 - 18.72

O-RING, 2.62 - 18.72

4

GASKET, ANODE CAP

GASKET, ANODE CAP

4

POWER HEAD GASKET SET

POWER HEAD GASKET SET

4

GASKET, OIL PUMP

GASKET, OIL PUMP

4

GASKET, ENGINE BASEMENT

GASKET, ENGINE BASEMENT

4

Прокладка

Прокладка

4

OIL SEAL, 18 - 35 - 8

OIL SEAL, 18 - 35 - 8

4

OIL SEAL, 30 - 45 - 8

OIL SEAL, 30 - 45 - 8

4

Прокладка, крышки головки

Прокладка, крышки головки

4

OIL SEAL, 12 - 28 - 5

OIL SEAL, 12 - 28 - 5

4

GASKET, INTAKE MANIFOLD

GASKET, INTAKE MANIFOLD

4

O-RING, 3.1 - 24.4

O-RING, 3.1 - 24.4

4

Прокладка карбюратора

Прокладка карбюратора

4

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

5

O-RING, 2.5 - 4.9

O-RING, 2.5 - 4.9

5

O-RING, 3.2 - 47

O-RING, 3.2 - 47

5

O-RING, 2.4 - 15.4

O-RING, 2.4 - 15.4

5

OIL SEAL, 15 - 28 - 10

OIL SEAL, 15 - 28 - 10

5

GASKET, DRIVE SHAFT HOUSING

GASKET, DRIVE SHAFT HOUSING

5

Прокладка

Прокладка

5

Прокладка глушителя

Прокладка глушителя

5

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

5

PUMP CASE GASKET (LOWER)

PUMP CASE GASKET (LOWER)

5

LOWER UNIT GASKET SET

LOWER UNIT GASKET SET

5

OIL SEAL, 12 - 24 - 8

OIL SEAL, 12 - 24 - 8

5

GASKET, 8.2 - 14 - 1

GASKET, 8.2 - 14 - 1

6

KEY, WATER PUMP IMPELLER

KEY, WATER PUMP IMPELLER

6

LINER, PUMP CASE

LINER, PUMP CASE

6

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

6

Болт

Болт

6

Шайба

Шайба

6

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

6

Импеллер

Импеллер

7

PUMP GUIDE PLATE (CHROME PLATED)

PUMP GUIDE PLATE (CHROME PLATED)

7

WATER PUMP KIT (CHROME PLATED)

WATER PUMP KIT (CHROME PLATED)

7

PUMP CASE LINER (CHROME PLATED)

PUMP CASE LINER (CHROME PLATED)

8

Болт

Болт

8

DRIVE SHAFT "UL"

DRIVE SHAFT "UL"

8

EXTENSION HOUSING KIT "UL"

EXTENSION HOUSING KIT "UL"

8

CAM ROD "UL"

CAM ROD "UL"

8

EXTENSION HOUSING KIT "UL"

EXTENSION HOUSING KIT "UL"

8

WATER PIPE "UL"

WATER PIPE "UL"

8

BOLT, 6 - 35 PRE-COATED

BOLT, 6 - 35 PRE-COATED

8

BUSHING, DRIVE SHAFT

BUSHING, DRIVE SHAFT

8

STOPPER, BUSHING

STOPPER, BUSHING

9

TILLER HANDLE ASSEMBLY

TILLER HANDLE ASSEMBLY

10

LOWER UNIT ASSEMBLY "S"

LOWER UNIT ASSEMBLY "S"

10

LOWER UNIT ASSEMBLY "L"

LOWER UNIT ASSEMBLY "L"

11

PROPELLER SHAFT HOUSING ASSEMBLY

PROPELLER SHAFT HOUSING ASSEMBLY

12

Болт

Болт

12

FUSE CABLE

FUSE CABLE

12

RUBBER MOUNT, 8.5 - 18 - 7

RUBBER MOUNT, 8.5 - 18 - 7

12

Болт

Болт

12

NEUTRAL SWITCH

NEUTRAL SWITCH

12

Шайба

Шайба

12

STAY, FUSE HOLDER

STAY, FUSE HOLDER

12

WASHER, 6 - 16 - 1.5

WASHER, 6 - 16 - 1.5

12

TERMINAL CAP

TERMINAL CAP

12

ELECTRIC STARTER KIT ("F" TYPE)

ELECTRIC STARTER KIT ("F" TYPE)

12

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

12

BRACKET, STARTER MOTOR

BRACKET, STARTER MOTOR

12

HOLDER, CABLE TERMINAL

HOLDER, CABLE TERMINAL

12

RUBBER MOUNT, 19 - 16 - 4.3

RUBBER MOUNT, 19 - 16 - 4.3

12

STARTER CABLE

STARTER CABLE

12

FLYWHEEL CUP

FLYWHEEL CUP

12

MAIN SWITCH

MAIN SWITCH

12

STARTER SOLENOID

STARTER SOLENOID

12

STAY, CABLE TERMINAL HOLDER

STAY, CABLE TERMINAL HOLDER

12

COLLAR, 6.2 - 9 - 7.4

COLLAR, 6.2 - 9 - 7.4

12

SPIRAL TUBE PROTECTOR

SPIRAL TUBE PROTECTOR

12

ALTERNATOR

ALTERNATOR

12

Регулятор напряжения

Регулятор напряжения

12

COLLAR, 6 - 8 - 6

COLLAR, 6 - 8 - 6

12

Болт

Болт

12

TERMINAL CAP

TERMINAL CAP

12

Болт

Болт

12

Болт

Болт

12

Болт

Болт

12

Стартер электрический

Стартер электрический

12

TERMINAL CAP

TERMINAL CAP

12

ELECTRIC BRACKET

ELECTRIC BRACKET

12

BATTERY CABLE (L=2500)

BATTERY CABLE (L=2500)

12

COVER, TERMINAL HOLDER

COVER, TERMINAL HOLDER
