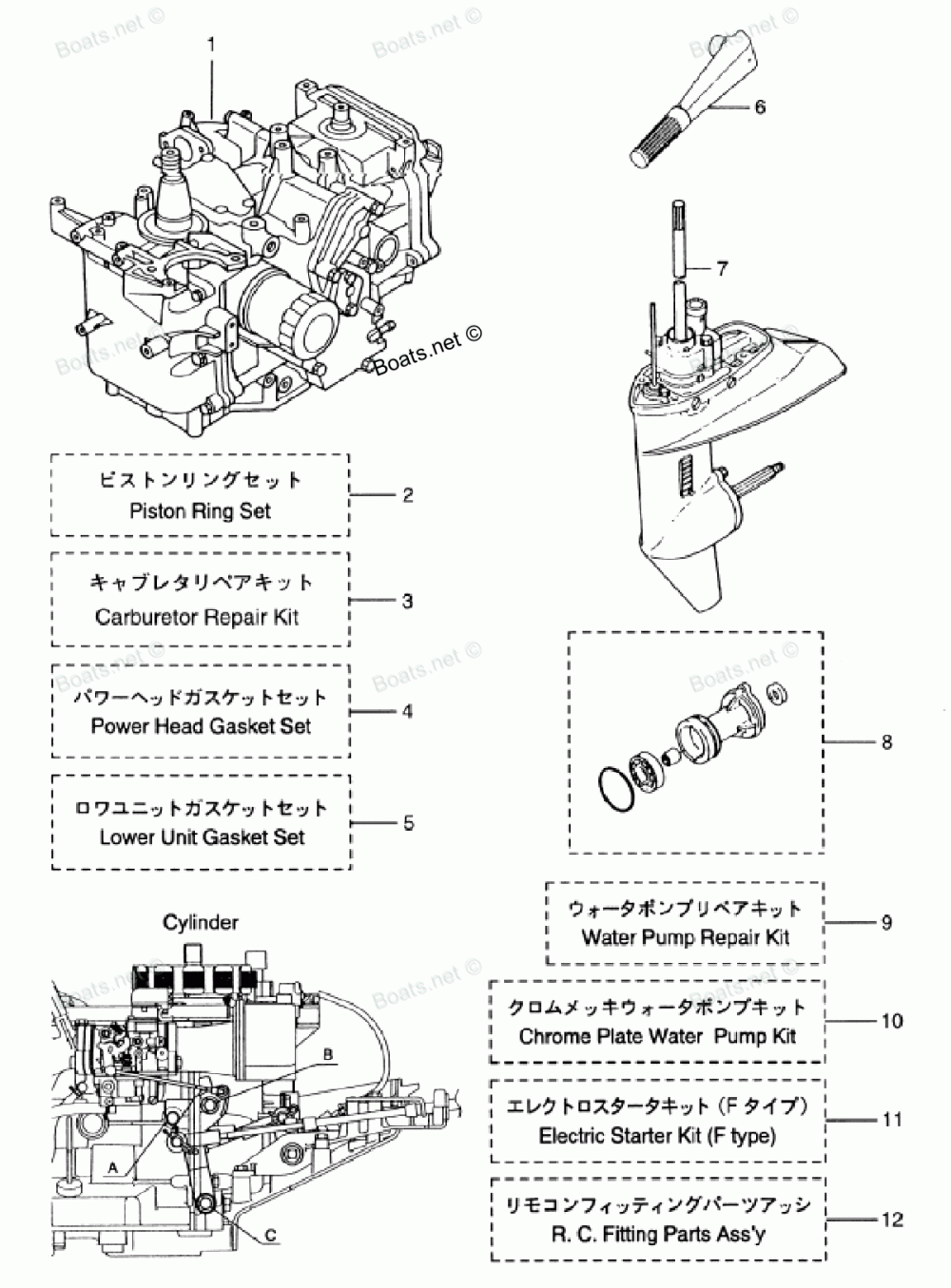

Assembly Kit

Tohatsu MFS15B2
Tohatsu
#oem кодцена
1
3H8B871002
ENGINE SHORT BLOCK
2
3H6000140M
PISTON RING, TOP (0.5 O/S)
2
3H6000150M
PISTON RING, 2ND (0.5 O/S)
2
3H6871230M
PISTON RING SET (STANDARD)
2
3H6000160M
PISTON RING, OIL (0.5 O/S)
2
3H6000110M
PISTON RING, TOP
2
3H6000120M
PISTON RING, 2ND
2
3H6000130M
PISTON RING, OIL
2
3H6871240M
PISTON RING SET, (0.5 O/S)
3
346032560M
RUBBER CAP
3
369031860M
Винт
3
3R3032930M
DRAIN SCREW GASKET
3
3R3032310M
Поплавок
3
3R3031820M
CARBURETOR COVER GASKET
3
3F3032320M
FLOAT ARM PIN
3
3R3033111M
RUBBER BOOT
3
3R3032390M
FLOAT VALVE
3
3R3871221M
CARBURETOR REPAIR KIT
3
344032440M
Зажим
3
3R3032220M
FLOAT CHAMBER O-RING
3
3R3032340M
Винт
3
9225036414
Винт
4A
3V9074021M
Прокладка , масляного поддона
4B
350012151M
OIL SEAL, 12.8 - 25 - 7
4
3H8010240M
GASKET, CYLINDER HEAD COVER
4B
345624150M
O-RING, 3.5 - 25.7
4B
3R3074422M
GASKET, OIL PAN PLATE
4
3R0074220M
O-RING, 3.1 - 24.4
4B
3H8076390M
O-RING, OIL PUMP
4B
3H8001210M
OIL SEAL, 32 - 48 - 8
4
3R3023050M
GASKET, EXHAUST COVER
4B
3H8076350M
O-RING, 1.5 - 15.5
4B
3R3001210M
OIL SEAL, 32 - 44 - 9
4
346010320M
GASKET, THERMOSTAT
4B
3H8076320M
O-RING, 1.5 - 10.7
4A
3V9871211M
POWER HEAD GASKET SET
4B
3R3021041M
GASKET, INTAKE MANIFOLD
4
3R3011440M
GASKET, ANODE CAP
4B
3H8076310M
O-RING, 1.5 - 8.5
4B
3H8871212M
POWER HEAD GASKET SET
4B
3R0020110M
Прокладка карбюратора
4
3R3074321M
GASKET, BREATHER CHAMBER COVER
4B
3H8070250M
OIL SEAL, 18 - 35 - 8
4B
3H8010050M
Прокладка
4B
3F3020120M
O-RING, 1.9 - 38.8
5
336624150M
O-RING, 3.5 - 36
5
332660210M
O-RING, 2.4 - 5.8
5
398873211M
LOWER UNIT GASKET SET
5
362023121M
Прокладка глушителя
5
332600060M
GASKET, 8.2 - 14 - 1
5
121320710M
O-RING, 2.4 - 59.6
5
346650130M
OIL SEAL, 17 - 30 - 9
5
332602230M
OIL SEAL, 13.8 - 26 - 9.5
6
3R3Q630030
TILLE HANDLE ASSEMBLY
7
3R3Q873011
LOWER UNIT ASSEMBLY "S"
7
3R3Q873021
LOWER UNIT ASSEMBLY "L"
8
398Q601001
PROPELLER SHAFT HOUSING ASSEMBLY
9
362873220M
WATER PUMP REPAIR KIT
9
334650210M
Импеллер
9
350650220M
KEY, WATER PUMP IMPELLER
9
350650111M
LINER, PUMP CASE
9
350650250M
GUIDE PLATE, WATER PUMP
9
9101135652
Болт
10
362652310M
CHROME PLATED WATER PUMP KIT
10
350650111M
LINER, PUMP CASE (CHROME PLATED)
10
350650250M
GUIDE PLATE, WATER PUMP (CHROME PLATED)
11
398069720M
CLAMP, 6.5 - 67P
11
3B7761450M
TERMINAL CAP
11
3C8760070M
RUBBER, STARTER MOTOR
11
3H6636191M
COLLAR, 6.5 - 10.5 - 10
11
3R3761410M
STARTER CORD
11
9101035818
Болт
11
398760800M
NEUTRAL SWITCH
11
3A3761450M
TERMINAL CAP
11
3H8760400M
STARTER SOLENOID
11
398760830M
ACTUATOR, NEUTRAL SWITCH
11
3R3763002M
ELECTRIC STARTER KIT ("F" TYPE)
11
3V9760620M
FUSE CABLE
11
3V9760600M
Регулятор напряжения
11
361760260M
MAIN SWITCH
11
3C8760101M
Стартер электрический
11
9101036612
Болт
11
9101035625
Болт
11
9101035825
Болт
11
9101130630
Болт
11
3V1761201M
BATTERY CABLE
11
3R3760090M
BAND, STARTER MOTOR
12
9161131045
Болт
12
3R3661280M
SHIFT ARM, REMOTE CONTROL
12
3R3839100M
THROTTLE LEVER (REMOTE CONTROL)
12
9101035620
Болт
12
9101030625
Болт
12
9401131000
Шайба
12
3R3661341M
SHIFT LEVER ROD
12
9101030645
Болт
12
3R3674830M
REMOTE CONTROL STAY COVER
12
3c8663080M
WASHER, 6 - 16 - 1.5
12
9301030500
Гайка
12
3R3839130M
COLLAR, 6.2 - 9 - 30.8
12
9225135630
Винт
12
353760790M
COLLAR, 6.2 - 9 - 9.3
12
3B7837151M
CABLE JOINT
12
3R3839140M
STOPPER, THROTTLE LEVER
12
3R3837320M
GROMMET, CABLE
12
3C8637330M
ROD SNAP, 5 - 3
12
3AA837190M
WASHER, 8.5 - 18 - 1.6
12
9101135616
Болт
12
3R3838200M
CABLE CLIP
12
3R3637090M
THROTTLE ROD (REMOTE CONTROL)
12
3R3Q838800
REMOTE CONTROL FITTING PARTS
12
9516030800
SNAP PIN, D=8
12
3V5Q620010
STEERING BRACKET
12
9101035616
Болт
12
346671961M
ROD SNAP, ∅3B
12
3R3Q674820
REMOTE CONTROL STAY
12
3R3661290M
SHIFT LEVER, REMOTE CONTROL
