Bracket & Reverse Lock Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS15B2 (2006)

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2006
MFS15B2
Bracket & Reverse Lock

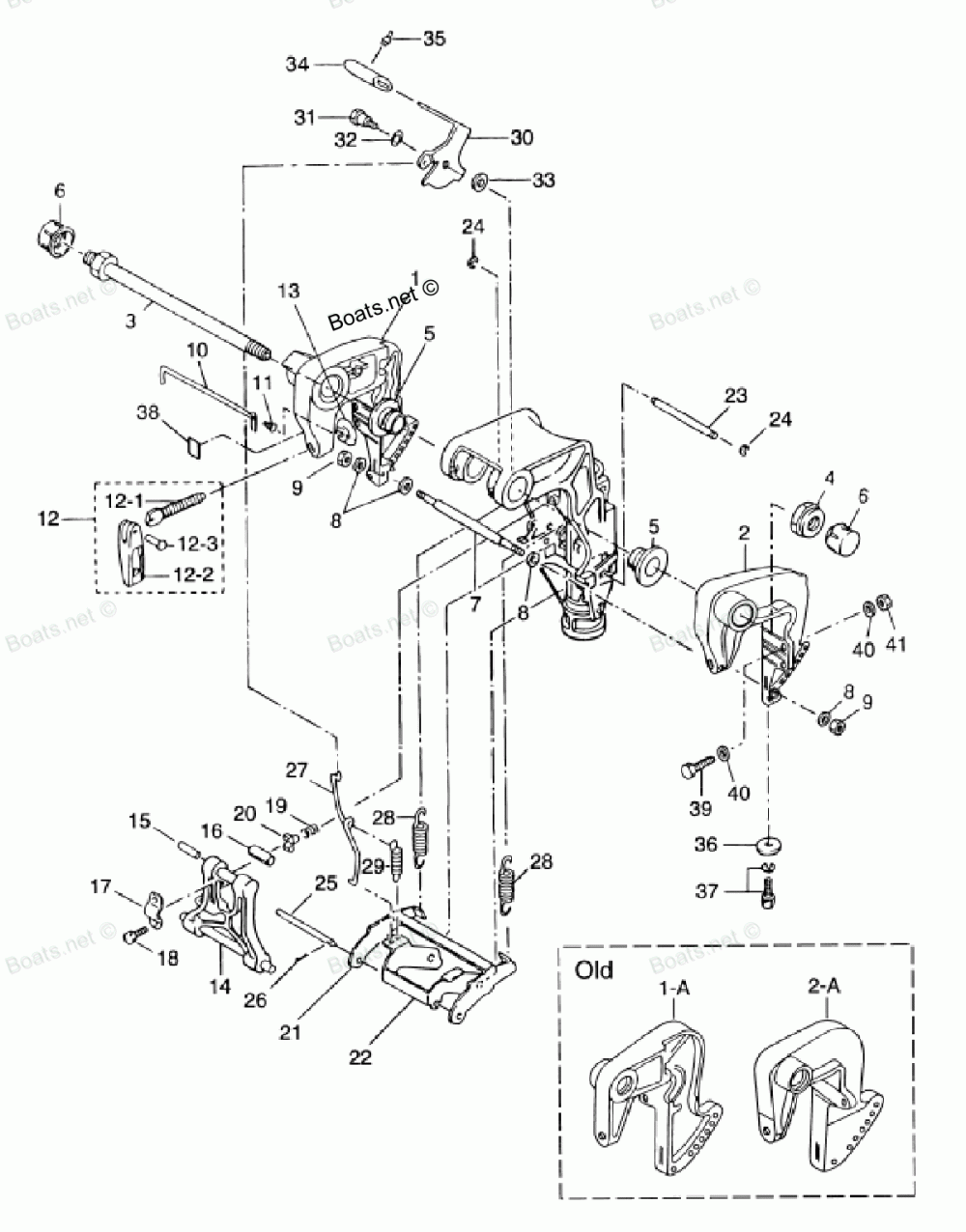

Bracket & Reverse Lock

Bracket & Reverse Lock

Tohatsu MFS15B2

oem код

название

цена

3V6Q621120

CLAMP BRACKET (RIGHT)

3G2Q621121

CLAMP BRACKET (RIGHT)

CLAMP BRACKET (LEFT)

CLAMP BRACKET (LEFT)

SWIVEL BRACKET SHAFT

NYLON NUT, 7/8

BUSHING, BRACKET SHAFT

BRACKET SHAFT CAP

DISTANCE PIECE

DISTANCE PIECE

Шайба

Гайка

Штанга

SPRING, THRUST ROD

CLAMP SCREW ASSEMBLY

12-1

398621030M

CLAMP SCREW

12-2

332Q621021

HANDLE, CLAMP SCREW

12-3

RIVET, 3 - 22

PAD, CLAMP SCREW

TILT STOPPER

SPRING PIN, 5 - 35

BUSHING, 8.2 - 10 - 26.5

350624391M

SET PLATE, TILT STOPPER

9101135818

Болт

3C8624211M

FRICTION SPRING, TILT STOPPER

SET PIECE

REVERSE LOCK "A"

ARM, REVERSE LOCK

SHAFT, REVERSE LOCK "A"

9453030600

E-RING, D=6

3G2663210M

ROD, REVERSE LOCK "A"

9515030212

SPLIT PIN, 2 - 12

3G2663120M

LINK, REVERSE LOCK "A"

3G2663310M

SPRING, REVERSE LOCK

350663150M

SPRING, REVERSE LOCK LINK

3G2663110M

LEVER, REVERSE LOCK LINK

3V9052540M

SHAFT, REVERSE LOCK LEVER

9414030800

WAVE WASHER, D=8

3c8663080M

WASHER, 6 - 16 - 1.5

346663330M

GRIP, REVERSE LOCK LEVER

STOPPER, GRIP

Анод

Болт

CO-PILOT DECAL

Болт

Шайба

Гайка
