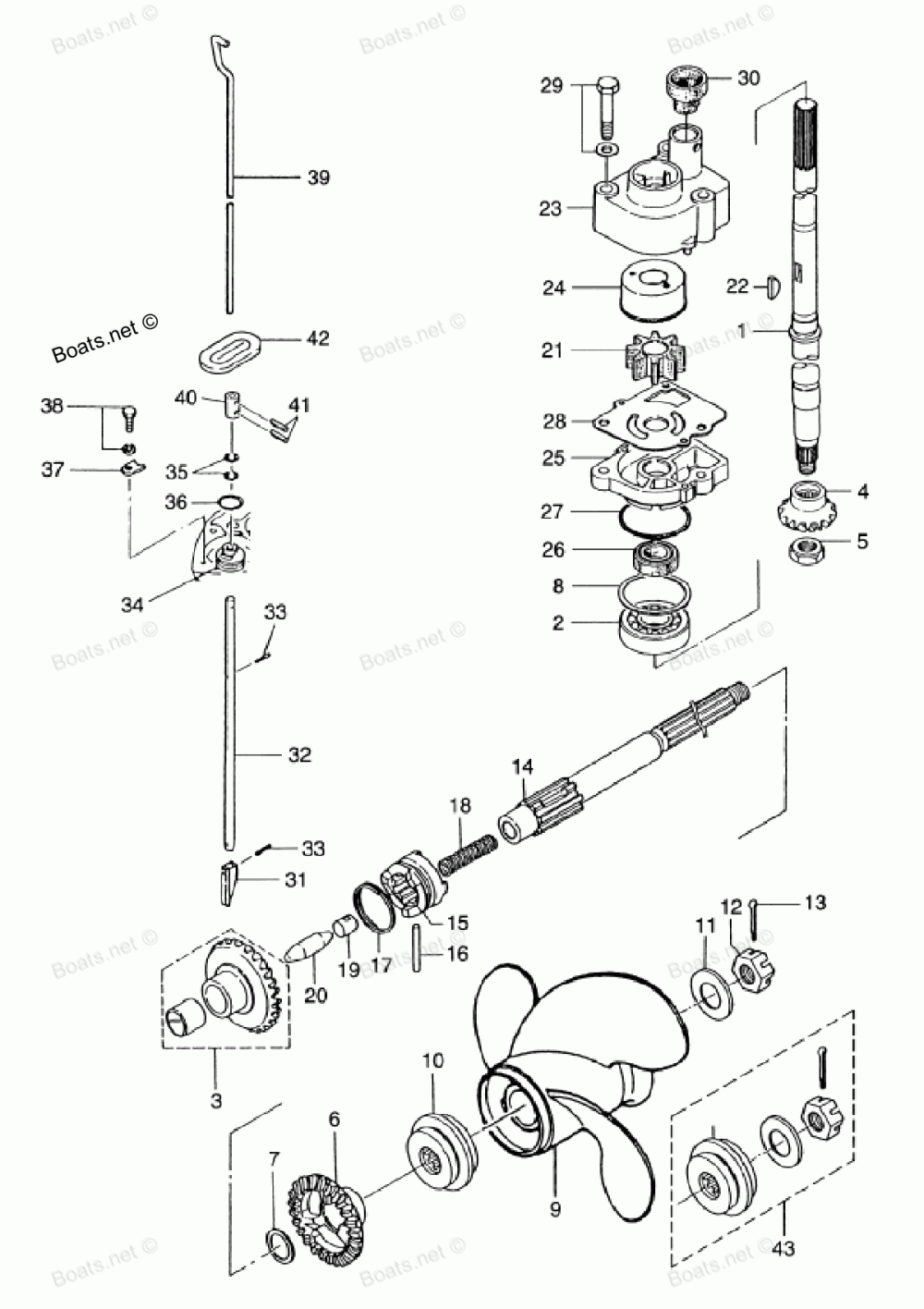

Drive System & Water Pump

Tohatsu MFS15B2
Tohatsu
#oem кодцена
1
3H8643010M
Вертикальный вал "S"
1
3H8643020M
Вертикальный вал "L"
2
960106302M
BALL BEARING, 6302
3
3H8640100M
BEVEL GEAR "A"
4
3H8640200M
BEVEL GEAR "B"
5
346640271M
NUT, BEVEL GEAR "B"
6
3H8640300M
BEVEL GEAR "C"
7
350640320M
WASHER, 17 - 22 - 1.5
8
346640810M
SHIM, 35 - 41.9 - 0.1
8
346640820M
SHIM, 35 - 41.9 - 0.15
8
346640830M
SHIM, 35 - 41.9 - 0.3
8
346640840M
SHIM, 35 - 41.9 - 0.5
9
362W641070
PROPELLER (6), 3 X 9.2 X 6.1
9
362W641050
PROPELLER (7), 3 X 9.2 X 6.6
9
362W641030
PROPELLER (8), 3 X 9.2 X 7.8
9
362W641020
PROPELLER (8.5), 3 X 9.2 X 8.4
9
362W641010
PROPELLER (9), 3 X 9.2 X 9.1
9
362W641080
PROPELLER (10), 3 X 9.2 X 9.8
10
362642310M
THRUST HOLDER, PROPELLER
11
346641245M
WASHER, 12.5 - 32 - 2.5
12
346641215M
NUT, PROPELLER
13
9515030322
SPLIT PIN, 3 - 22
14
362642111M
Вал гребного винта
15
362642150M
Муфта сцепления
16
350642180M
Палец
17
350642190M
SNAP, CLUTCH PIN
18
332642210M
Пружина
19
350642220M
CLUTCH SPRING RETAINER
20
350642231M
PUSH ROD, CLUTCH
21
334650210M
Импеллер
22
350650220M
KEY, WATER PUMP IMPELLER
23
350650161M
PUMP CASE (UPPER)
24
350650111M
LINER, PUMP CASE
25
350650170M
PUMP CASE (LOWER)
26
332602230M
OIL SEAL, 13.8 - 26 - 9.5
27
336624150M
O-RING, 3.5 - 36
28
350650250M
GUIDE PLATE, WATER PUMP
29
9101135652
Болт
30
350650140M
WATER PIPE SEAL (LOWER)
31
3C8660110M
Кулачковый толкатель
32
3H8660121M
CAM ROD "S"
32
3H8660131M
CAM ROD "L"
33
9514070312
SPRING PIN, 3 - 12
34
398660310M
BUSHING, CAM ROD
35
332660210M
O-RING, 2.4 - 5.8
36
336624150M
O-RING, 3.5 - 36
37
332660330M
STOPPER, CAM ROD BUSHING
38
9101136512
Болт
39
3H8662152M
SHIFT ROD
40
3C8662410M
JOINT, SHIFT ROD
41
9514030312
SPRING PIN, 3 - 12
42
3R3662260M
GROMMET, SHIFT ROD
43
3V9873260M
PROPELLER HARDWARE KIT
