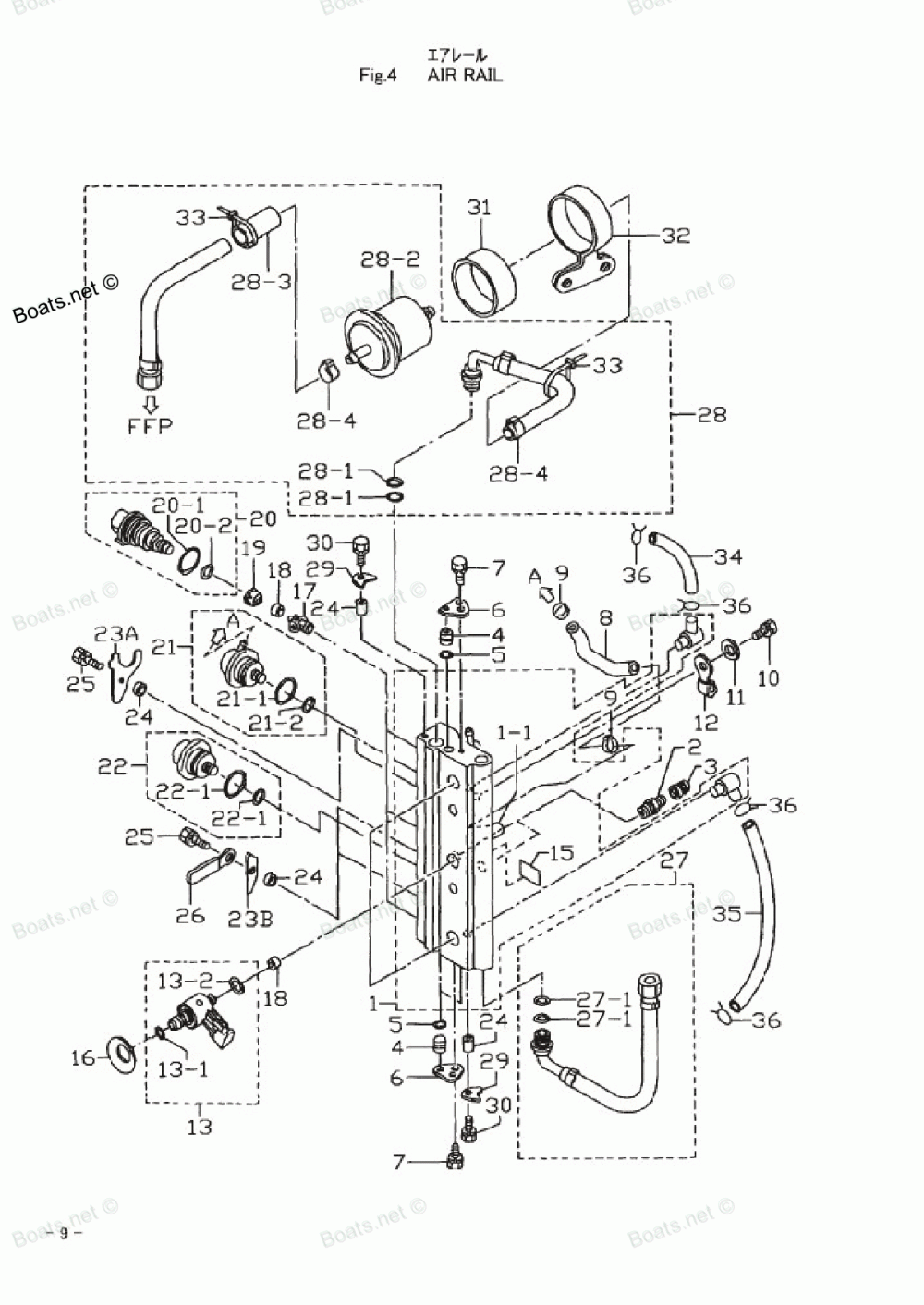

Air Rail Каталог оригинальных запчастей для лодочных моторов Tohatsu MD40B (2006)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Air Rail

Tohatsu MD40B

Air Rail

#

oem код

название

цена

1

AIR RAIL

AIR RAIL

1-1

L-NIPPLE

L-NIPPLE

2

Клапан

Клапан

3

Крышка клапана

Крышка клапана

4

PLUG, ∅10.5

PLUG, ∅10.5

5

O-RING, 1.9 - 6.8

O-RING, 1.9 - 6.8

6

STOPPER, PLUG

STOPPER, PLUG

7

Болт

Болт

8

AIR HOSE

AIR HOSE

9

CLAMP, 29/64

CLAMP, 29/64

10

Болт

Болт

11

Шайба

Шайба

12

CLAMP, 8.5 - 70P

CLAMP, 8.5 - 70P

13

AIR INJECTOR

AIR INJECTOR

13

AIR INJECTOR

AIR INJECTOR

13-1

O-RING, 5 - 52

O-RING, 5 - 52

13-2

O-RING, 2.4 - 9.6

O-RING, 2.4 - 9.6

13-2

O-RING, 2 - 13

O-RING, 2 - 13

15

DECAL, AIR RAIL

DECAL, AIR RAIL

16

AIR INJECTOR DISC SPRING

AIR INJECTOR DISC SPRING

16

AIR INJECTOR DISC SPRING

AIR INJECTOR DISC SPRING

17

INSERT, FUEL INJECTOR

INSERT, FUEL INJECTOR

18

SEAL, COMPRESSION

SEAL, COMPRESSION

19

ADAPTER, FUEL INJECTOR

ADAPTER, FUEL INJECTOR

20

FUEL INJECTOR

FUEL INJECTOR

20-1

O-RING, 2.8 - 20.2

O-RING, 2.8 - 20.2

20-2

O-RING, 3.5 - 7.5

O-RING, 3.5 - 7.5

21

FUEL REGULATOR

FUEL REGULATOR

21-1

O-RING, 2.5 - 20

O-RING, 2.5 - 20

21-2

O-RING, 2.5 - 5

O-RING, 2.5 - 5

22

AIR REGULATOR

AIR REGULATOR

23A

FUEL INJECTOR HOLDING PLATE

FUEL INJECTOR HOLDING PLATE

23B

FUEL INJECTOR HOLDING PLATE

FUEL INJECTOR HOLDING PLATE

24

COLLAR, 6.7 - 12.7 - 3

COLLAR, 6.7 - 12.7 - 3

25

Болт

Болт

26

CLAMP, 6.5 - 47.5P

CLAMP, 6.5 - 47.5P

27

AIR HOSE

AIR HOSE

27-1

O-RING, 1.9 - 9.8

O-RING, 1.9 - 9.8

28

FUEL HOSE

FUEL HOSE

28-2

HIGH PRESSURE FUEL FILTER

HIGH PRESSURE FUEL FILTER

28-3

PROTECT TUBE

PROTECT TUBE

28-4

CLAMP, 21/32

CLAMP, 21/32

29

PLATE, NIPPLE HOLDING

PLATE, NIPPLE HOLDING

31

RUBBER MOUNT, FUEL FILTER

RUBBER MOUNT, FUEL FILTER

32

BAND, FUEL FILTER

BAND, FUEL FILTER

33

BAND, LEAD WIRE 104

BAND, LEAD WIRE 104

34

FUEL PIPE

FUEL PIPE

35

AIR PIPE

AIR PIPE

36

CLIP, ∅10

CLIP, ∅10
